Discontinued - Recommended Replacement:
A22CJN2

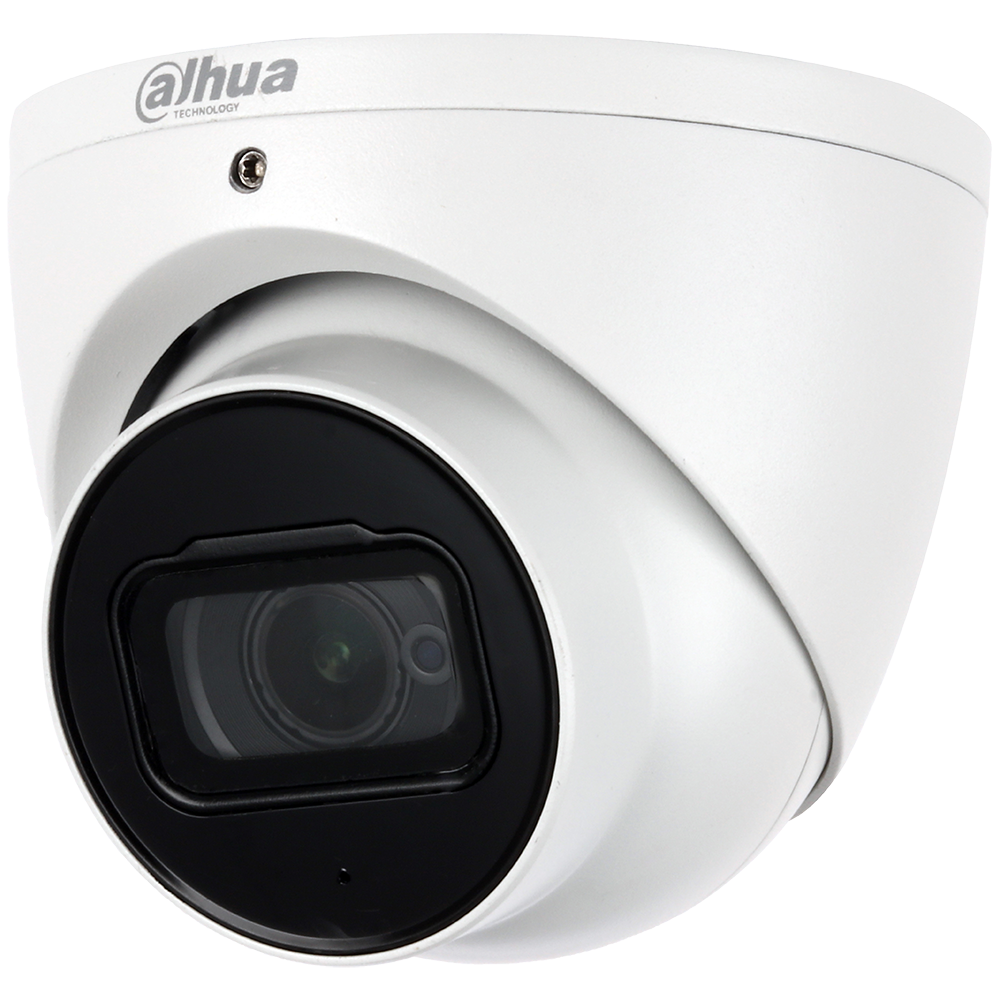

Dahua A22BJ63 Features
Camera
- Image Sensor 1/2.8-in. CMOS
- Effective Pixels 1920 (H) x 1080 (V), 2 MP
- Scanning System Progressive
- Electronic Shutter Speed 1/3 s to 1/100,000 s
- Minimum Illumination Color: 0.001 lux at F1.0, 30 IRE
- S/N Ratio More than 65 dB
Lens
- Lens Type Fixed Lens / Fixed Iris
- Mount Type Board-in
- Focal Length 3.6 mm
- Max Aperture F1.0
- Horizontal Angle of View 89.5°
- Close Focus Distance 1600.0 mm (63.0 in.)
Video
- Max Resolution 1080p (1920 x 1080)
- Frame Rate 1080p at 30 fps or 720p at 60 fps
- Video Output One (1) BNC, Transmits HDCVI High-definition signal or CVBS, AHD or TVI Channel, switchable
- Day/Night Color
- OSD Menu Multi-language
- BLC Mode BLC, HLC, True WDR
- WDR 120 dB
- Gain Control AGC
- Noise Reduction 2D, 3D
- White Balance Auto, Manual
Certifications
- CE EN55032 EN55024 EN50130-4
- Safety UL60950-1 CAN/CSA C22.2 No.60950-1
- Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014
Electrical
- Power Supply 12 VDC ±30%
- Power Consumption Maximum 2.4 W (12 VDC)
Environmental
- Operating Conditions –40° C to +60° C (–40° F to +140° F) Less than 90% RH *Initiate start up above –40° C (–40° F)
- Storage Conditions –40° C to +60° C (–40° F to +140° F) Less than 90% RH
- Ingress Protection IP67
Construction
- Casing Aluminium
- Dimensions ø106.0 mm x 99.20 mm (ø4.17 in. x 3.90 in.)
- Net Weight 0.48 kg (1.06 lb)
- Gross Weight 0.65 kg (1.43 lb)
