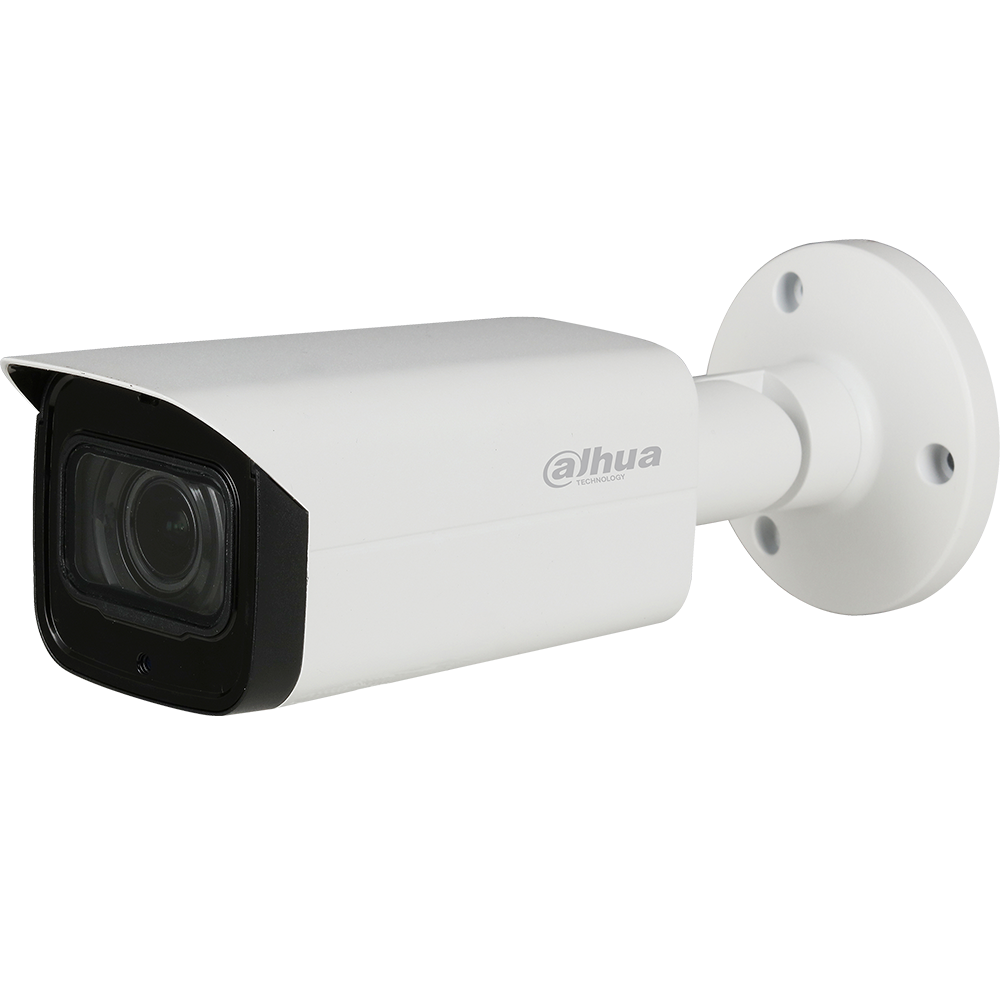

Dahua A22CFAZ 2MP IR Vari-focal HDCVI Bullet Camera

Discontinued - Recommended Replacement: A22DFAZ

Dahua A22CFAZ Features

Camera

• Image Sensor 1/2.8-in. CMOS Sensor
• Effective Pixels 1920 (H) x 1080 (V), 2 MP
• Scanning System Progressive
• Electronic Shutter Speed 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.004 lux at F1.6, 30 IRE 0 lux at F1.6 with IR On
• S/N Ratio More than 65 dB
• IR Distance Up to 80.0 m (262.47 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Four (4)

Lens

• Lens Type Motorized Lens, Fixed Iris
• Mount Type Board-in
• Focal Length 2.7 mm to 13.5 mm
• Maximum Aperture F1.6
• Angle of View Horizontal: 108.7° to 28.7°
• Close Focus Distance 200.0 mm (7.87 in.)

Video

• Maximum Resolution 1080p (1920 x 1080)
• Frame Rate 1080p at 30 fps or 720p at 60 fps
• Video Output One (1) BNC, Transmits HDCVI High-definition signal or CVBS, AHD or TVI Channel, switchable
• Day/Night Auto (ICR), Manual
• OSD Menu Multi-language
• BLC Mode BLC, HLC, True WDR
• WDR 120 dB
• Gain Control AGC
• Noise Reduction 2D, 3D
• White Balance Auto, Manual
• Smart IR Auto, Manual

Certifications

• CE EN55032, EN55024, EN50130-4
• Safety UL60950-1, CAN/CSA C22.2 No.60950-1
• Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014

Interface

• Audio³ Input: One (1) Channel, RCA Jack, plus One (1) Built-in Microphone

Electrical

• Power Supply 24 VAC ± 30% or 12 VDC ± 30%
• Power Consumption Maximum 11.1 W (12 VDC, IR On)

Environmental

• Operating Conditions –40° C to +60° C (–40° F to +140° F) Less than 90% RH *Initiate start up above –40° C (–40° F)
• Storage Conditions –40° C to +60° C (–40° F to +140° F), Less than 90% RH
• Ingress Protection IP67

Construction

• Casing Aluminium
• Dimensions 244.10 mm x 90.40 mm x 90.40 mm (9.61 in. x 3.56 in. x 3.56 in.)
• Net Weight 0.80 kg (1.76 lb)
• Gross Weight 1.05 kg (2.31 lb)
