Discontinued - Recommended Replacement:
A22DJAZ

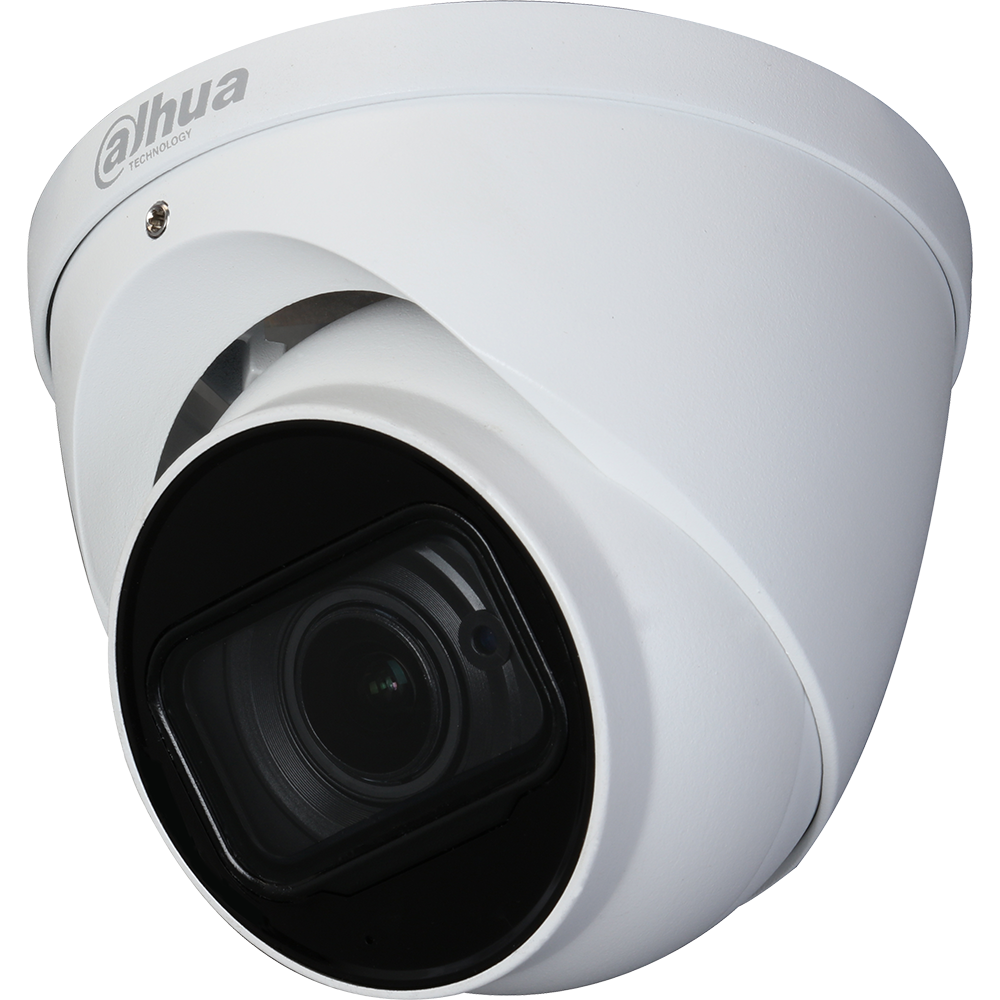

Dahua A22CJAZ Features
Camera
- Image Sensor 1/2.8-in. CMOS Sensor
- Effective Pixels 1920 (H) x 1080 (V), 2 MP
- Scanning System Progressive
- Electronic Shutter Speed 1/3 s to 1/100,000 s
- Minimum Illumination Color: 0.004 lux at F1.6, 30 IRE 0 lux at F1.6 with IR On
- S/N Ratio More than 65 dB
- IR Distance Up to 50.0 m (164.04 ft)
- IR Control Auto, Manual
- IR LEDs Two (2)
Lens
- Lens Type Motorized Lens, Fixed Iris
- Mount Type Board-in
- Focal Length 2.7 mm to 13.5 mm
- Max Aperture F1.6
- Angle of View Horizontal: 108.7° to 28.7°
- Close Focus Distance 200.0 mm (7.87 in.)
Range
- Pan: 0° to 360°
- Tilt: 0° to 78°
- Rotation: 0° to 360°
Video
- Max Resolution 1080p (1920 x 1080)
- Frame Rate 1080p at 30 fps or 720p at 60 fps
- Video Output One (1) BNC, Transmits HDCVI High-definition signal or CVBS, AHD or TVI Channel, switchable
- Day/Night Auto (ICR), Manual
- OSD Menu Multi-language
- BLC Mode BLC, HLC, True WDR
- WDR 120 dB
- Gain Control AGC
- Noise Reduction 2D, 3D
- White Balance Auto, Manual
- Smart IR Auto, Manual
Audio
- Input: One (1) Channel, RCA Jack, plus One (1) Built-in Microphone
Certifications
- CE EN55032 EN55024 EN50130-4
- Safety UL60950-1 CAN/CSA C22.2 No.60950-1
- Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014
Electrical
- Power Supply 24 VAC ± 30% or 12 VDC ± 30%
- Power Consumption Maximum 6.9 W (IR On)
Environmental
- Operating Conditions –40° C to +60° C (–40° F to +140° F) Less than 90% RH *Initiate start up above –40° C (–40° F)
- Storage Conditions –40° C to +60° C (–40° F to +140° F) Less than 90% RH
- Ingress Protection IP67
Construction
- Casing Aluminium
- Dimensions ø122.0 mm x 104.0 mm (ø4.80 in. x 4.09 in.)
- Net Weight 0.63 kg (1.39 lb)
- Gross Weight 0.83 kg (1.83 lb)
