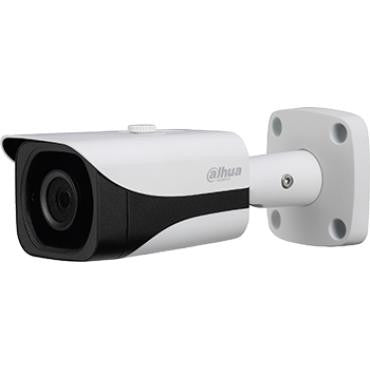

Dahua A42AB22 4 MP HDCVI WDR IR Bullet Camera

Replaced by the A42AB23

Dahua A42AB22 Features

Camera

• Image Sensor 1/3-in. CMOS
• Effective Pixels 2688(H) × 1520(V), 4.1 MP
• Scanning System Progressive
• Electronic Shutter Speed 1/3 s to 1/300,000 s
• Minimum Illumination 0.01 Lux / F1.5, 0 Lux (IR on)
• S/N Ratio More than 65 dB
• IR Distance Up to 40.0 m (131.23 ft)
• IR On/Off Control Auto / Manual
• IR LEDs Two (2)

Lens

• Lens Type Fixed Lens / Fixed Iris
• Mount Type Board-in
• Focal Length 2.8 mm
• Max Aperture F1.5
• Angle of View Horizontal: 79°
• Close Focus Distance 900.0 mm (59.06 in.)

Video

• Resolution 4 MP (2560 × 1440)
• Frame Rate 25 fps @ 4 MP, 25/30 fps @ 1080p, 25/30/50/60 fps @ 720p
• Video Output One (1) BNC HDCVI high-definition Channel and, One (1) BNC CVBS Channel
• Day/Night Auto (ICR) / Manual
• On-screen Display Menu Multi-language
• BLC Mode BLC / HLC / WDR
• WDR 120 dB
• Gain Control AGC
• Noise Reduction 2D / 3D
• White Balance Auto / Manual
• Smart IR Auto / Manual

Certifications

• Certifications FCC (CFR 47 FCC Part 15 SubpartB)
• ANSI C63.4-2014)
• UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Electrical

• Power Supply 12V DC ±25%
• Power Consumption Max. 7 W (12V DC, IR on)

Environmental

• Operating Conditions -30°C to +60°C (-22°F to +140°F), Less than 90% RH
• Initiate start up above -30°C (-22°F)
• Storage Conditions -30°C to +60°C (-22°F to +140°F), Less than 90% RH
• Ingress Protection IP67

Construction

• Casing Aluminium
• Dimensions 180.0 mm × 70.0 mm × 70.0 mm (7.09 in. × 2.76 in. × 2.76 in.)
• Net Weight 0.40 kg (0.89 lb)
• Gross Weight 0.51 kg (1.12 lbs)
