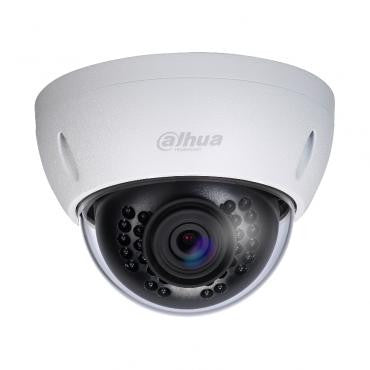

Dahua A42AL22 4MP WDR IR Fixed HDCVI Dome Camera

Dahua A42AL22 Features

Camera

• Image Sensor 1/3-in. CMOS
• Effective Pixels 2688(H) x 1520(V), 4.1 MP
• Scanning System Progressive
• Electronic Shutter Speed 1/3 s to 1/100,000 s
• Minimum Illumination 0.01 Lux at F1.5, 0 Lux with IR on
• S/N Ratio More than 65 dB
• IR Distance Up to 30 m (98 ft)
• IR On/Off Control Auto, Manual
• IR LEDs 12

Lens

• Lens Type Fixed lens, Fixed iris
• Mount Type Board-in
• Focal Length 2.8 mm
• Max Aperture F1.5
• Angle of View Horizontal: 79°
• Close Focus Distance 900.0 mm (59.06 in.)

Pan / Tilt / Rotation

• Range Pan: 0° to 355°
• Tilt: 0° to 65°
• Rotation: 0° to 355°

Video

• Resolution 4 MP (2560 ×1440)
• Frame Rate 4 MP at 25 fps, 1080p at 30 fps, 720p at 30 fps
• Video Output One (1) BNC HDCVI High-definition Channel and, One (1) BNC CVBS Channel
• Day/Night Auto (ICR), Manual
• OSD Menu Multi-language
• BLC Mode BLC, HLC, WDR
• WDR 120 dB
• Gain Control AGC
• Noise Reduction 2D/3D
• White Balance Auto, Manual
• Smart IR Auto, Manual

Video Transmission

• RG-59/U Coax 720p: 800 m (2624.67 ft); 1080p: 500 m (1640.42 ft); 4 MP: 500 m (1640.42 ft)
• RG-6/U Coax 720p: 1200 m (3937.01 ft); 1080p: 800 m (2624.67 ft); 4 MP: 700 m (2296.59 ft)
• CAT 6 UTP (balun required) 720p: 450 m (1476.38 ft); 1080p: 300 m (984.25 ft); 4 MP: 300 m (984.25 ft)

Certifications

• Safety UL60950-1+CAN/CSA C22.2 No.60950-1
• Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 subpart B,
• ANSI C63.4-2014)

Electrical

• Power Supply 12 VDC ± 25%
• Power Consumption Maximum 4.4 W (12 VDC with IR on)

Environmental

• Operating Conditions -30° C to +60° C (-22° F to +140° F), Less than 90% RH
• * Start up should be done above -30° C (-22° F)
• Storage Conditions -30° C to +60° C (-22° F to +140° F), Less than 90% RH
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Aluminium
• Dimensions ø109.90 mm x 81.0 mm (ø4.33 in. x 3.19 in.)
• Net Weight 0.33 kg (0.73 lb)
• Gross Weight 0.45 kg (0.99 lb)
