Dahua A42AM2Z-B

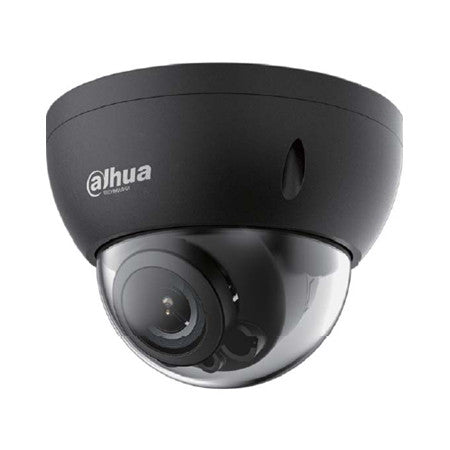

Dahua A42AM2Z-B 4MP HDCVI WDR IR Varifocal Dome Camera

Dahua

Dahua A42AM2Z-B 4MP HDCVI WDR IR Varifocal Dome Camera

$207.00
Discontinued
SKU: A42AM2Z-B Pro
Link to Manufacturer's Page

Contact

Replaced by the A52AM9Z

Dahua A42AM2Z-B Features

Camera

  • Image Sensor 1/3-in. CMOS
  • Effective Pixels 2688(H) x 1520(V), 4.1 MP
  • Scanning System Progressive
  • Electronic Shutter Speed 1/3 s to 1/100,000 s
  • Minimum Illumination 0.01 Lux at F1.3; 0 Lux with IR on
  • S/N Ratio More than 65 dB
  • IR Distance Up to 30 m (98 ft)
  • IR On/Off Control Auto, Manual
  • IR LEDs Two (2)

Lens

  • Lens Type Motorized lens / Fixed iris
  • Mount Type Board-in
  • Focal Length 2.7 to 12 mm
  • Max Aperture F1.3
  • Angle of View Horizontal: 26° to 98°
  • Focus Control Auto, Manual
  • Close Focus Distance 200 mm (7.87 in.)

Pan / Tilt / Rotation

  • Range Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotation: 0° to 355°

Video

  • Resolution 4 MP (2560 x 1440)
  • Frame Rate 4 MP at 25 fps; 1080p at 30 fps; 720p at 30 fps
  • Video Output One (1) BNC HDCVI High-definition Channel and, One (1) BNC CVBS Channel
  • Day/Night Auto (ICR), Manual
  • OSD Menu Multi-language
  • BLC Mode BLC, HLC, WDR
  • WDR 120 dB
  • Gain Control AGC
  • Noise Reduction 2D/3D
  • White Balance Auto, Manual
  • Smart IR Auto, Manual

Video Transmission

  • RG-59/U Coax 720p: 800 m (2624.67 ft); 1080p: 500 m (1640.42 ft); 4 MP: 500 m (1640.42 ft)
  • RG-6/U Coax 720p: 1200 m (3937.01 ft); 1080p: 800 m (2624.67 ft); 4 MP: 700 m (2296.59 ft)
  • CAT 6 UTP (balun required) 720p: 450 m (1476.38 ft); 1080p: 300 m (984.25 ft); 4 MP: 300 m (984.25 ft)

Certifications

  • Safety UL60950-1+CAN/CSA C22.2 No.60950-1
  • Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 subpartB,
  • ANSI C63.4-2014

Electrical

  • Power Supply 24 VAC ±25%, 12 VDC ±25%
  • Power Consumption Maximum 10.1 W (12 VDC, IR on)

Environmental

  • Operating Conditions -30° C to +60° C (-22° F to +140° F), Less than 90% RH
  • * Start up should be done above -30° C (-22° F)
  • Storage Conditions -30° C to +60° C (-22° F to +140° F), Less than 90% RH
  • Ingress Protection IP67
  • Vandal Resistance IK10

Construction

  • Casing Aluminium
  • Dimensions ø122.0 mm x 88.9 mm (ø4.8 in. x 3.5 in.)
  • Net Weight 0.48 kg (1.06 lb)
  • Gross Weight 0.63 kg (1.39 lb)
