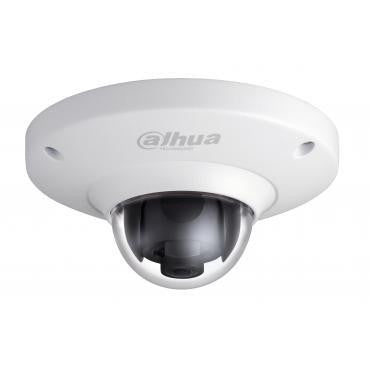

Dahua A42AR2 4MP Panoramic HDCVI Fisheye Camera

Dahua A42AR2 Features

Camera

• Image Sensor 1/3-in CMOS Sensor
• Effective Pixels 2688(H) x 1520(V), 4.1 MP
• Scanning System Progressive
• Electronic Shutter Speed 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.01 Lux at F2.0, B/W: 0.001 Lux at F2.0
• S/N Ratio More than 65 dB

Lens

• Lens Type Fixed Lens / Fixed Iris
• Mount Type Board-in
• Focal Length 1.18 mm
• Max Aperture F2.0
• Angle of View 360°
• Close Focus Distance 100 mm (3.94 in.)

Video

• Resolution 4 MP (2560 x 1440)
• Frame Rate 4 MP at 30 fps
• Video Output One (1) BNC HDCVI High-definition Channel and One (1) BNC CVBS Channel
• Transmission Distances: Please see Datasheet
• Day/Night Auto (Electronic), Manual
• OSD Menu Multi-language
• BLC Mode BLC, HLC, WDR
• WDR True WDR (120 dB)
• Gain Control AGC
• Noise Reduction 2D/3D
• White Balance Auto, Manual

Certifications

• Safety UL60950-1+CAN/CSA C22.2 No.60950-1
• Electromagnetic Compatibility (EMC)
• CFR 47 FCC Part 15 Subpart B
• ANSI C63.4-2014

Electrical

• Power Supply 12 VDC (± 25%)
• Power Consumption Maximum 2.2 W ( at 12 VDC)

Environmental

• Operating Conditions -30° C to +60° C (-22° F to +140° F), Less than 90% RH
• * Initiate startup above -30° C (-22° F)
• Storage Conditions -30° C to +60° C (-22° F to +140° F), Less than 90% RH
• Vandal Resistance IK10

Construction

• Casing Aluminium
• Dimensions Ó110.0 mm x 56.0 mm (Ó4.3 in. x 2.2 in.)
• Net Weight 0.41 kg (0.90 lb)
• Gross Weight 0.45 kg (0.99 lb)
