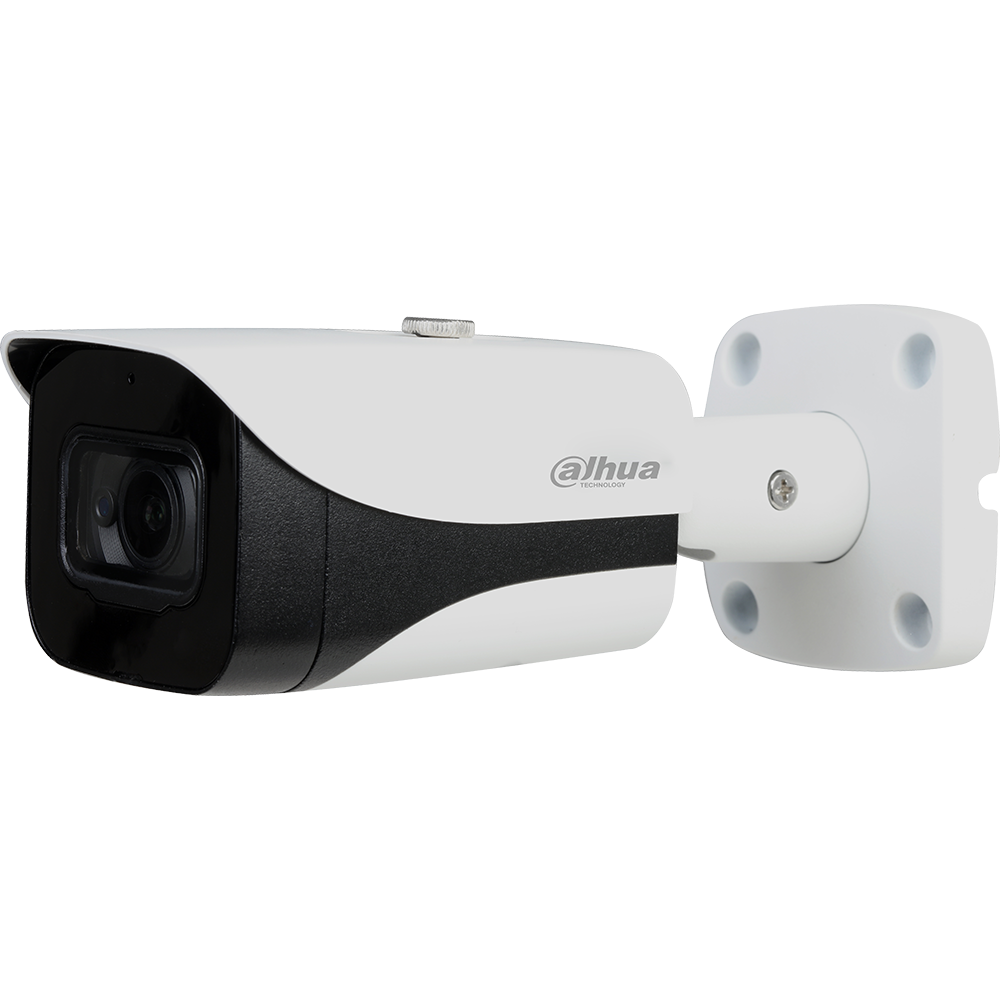

Dahua A52AB62 5MP 2.8mm Multi-format Bullet Camera

Discontinued – Recommended Replacement: A52BB62

Features

Camera

• Image Sensor 1/2.8-in. STARVIS™ CMOS Sensor
• Effective Pixels 2592 (H) x 1944 (V), 5 MP
• Scanning System Progressive
• Electronic Shutter Speed 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.005 lux at F1.6, 30 IRE, 0 lux with IR on
• S/N Ratio More than 65 dB
• IR Distance Up to 40.0 m (131.23 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Two (2)

Lens

• Lens Type Fixed Lens, Fixed Iris
• Mount Type Board-in
• Focal Length 2.8 mm
• Maximum Aperture F1.6
• Angle of View Horizontal: 98°
• Close Focus Distance 800 mm (31.50 in.)

Installation Angle

• Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Video

• Maximum Resolution 5 MP (2592 x 1944)
• Frame Rate 5 MP at 20 fps, 4 MP at 30 fps, 1080p at 30 fps
• Video Output One (1) BNC HDCVI High-definition Channel or, One (1) BNC CVBS Channel, switchable
• Video Transmission See datasheet
• Day/Night Auto (ICR), Manual
• OSD Menu Multi-language
• BLC Mode BLC, HLC, True WDR
• WDR 120 dB
• Gain Control AGC
• Noise Reduction 2D, 3D
• White Balance Auto, Manual
• Smart IR Auto, Manual

Certifications

• CE EN55032, EN55024, EN50130-4
• Safety UL60950-1, CAN/CSA C22.2 No.60950-1
• Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B,, ANSI C63.4-2014

Interface

• Audio Input: One (1) Channel, RCA Jack plus One (1) Built-in Microphone

Electrical

• Power Supply 12 VDC ± 30%
• Power Consumption Maximum 7 W (12 VDC, IR on)

Environmental

• Operating Conditions –40° C to +60° C (–40° F to +140° F), Less than 90% RH
• *Initiate start up above –40° C (–40° F)
• Storage Conditions –40° C to +60° C (–40° F to +140° F), Less than 90% RH
• Ingress Protection IP67

Construction

• Casing Aluminium
• Dimensions 179.90 mm x 70.0 mm x 70.0 mm (7.08 in. x 2.76 in. x 2.76 in.)
• Net Weight 0.42 kg (0.93 lb)
• Gross Weight 0.53 kg (1.17 lb)
