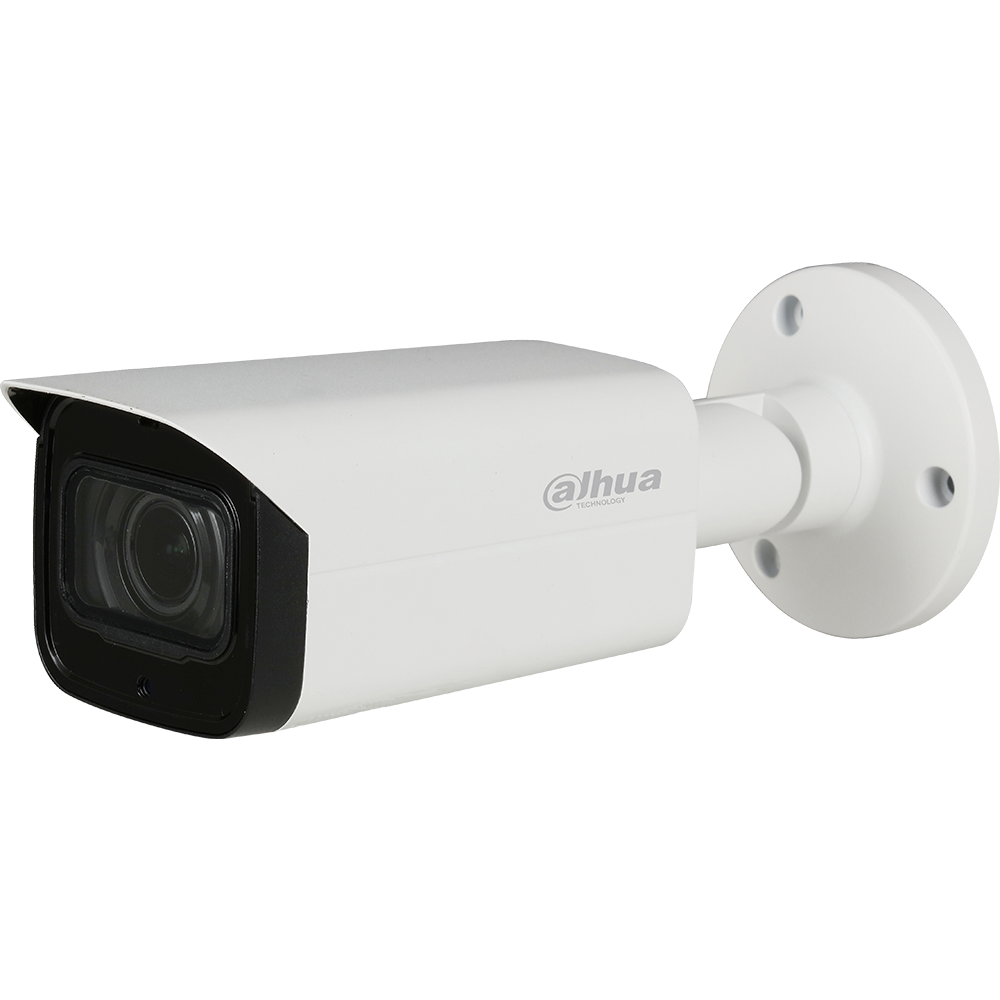

Dahua A52AF6Z 5MP HDCVI Vari-focal Multi-format Bullet Camera

Dahua

Dahua A52AF6Z 5MP HDCVI Vari-focal Multi-format Bullet Camera

$196.18
SKU: A52AF6Z
Quantity:
Link to Manufacturer's Page

Contact

Discontinued – Recommended Replacement: A52BFAZ

Features

Camera

  • Image Sensor 1/2.8-in. STARVIS™ CMOS Sensor
  • Effective Pixels 2592 (H) x 1944 (V), 5 MP
  • Scanning System Progressive
  • Electronic Shutter Speed 1/3 s to 1/100,000 s
  • Minimum Illumination Color: 0.005 lux at F1.3, 30 IRE, 0 lux with IR on
  • S/N Ratio More than 65 dB
  • IR Distance Up to 80.0 m (262.47 ft)
  • IR On/Off Control Auto, Manual
  • IR LEDs Four (4)

Lens

  • Lens Type Motorized Lens, Fixed Iris
  • Mount Type Board-in
  • Focal Length 2.7 mm to 13.5 mm
  • Maximum Aperture F1.3
  • Angle of View Horizontal: 102° to 29°
  • Focus Control Auto, Manual
  • Close Focus Distance 200 mm (7.87 in.)

Video

  • Maximum Resolution 5 MP (2592 x 1944)
  • Frame Rate 5 MP at 20 fps, 4 MP at 30 fps, 1080p at 30 fps
  • Video Output One (1) BNC HDCVI High-definition Channel or, One (1) BNC CVBS Channel, switchable
  • Day/Night Auto (ICR), Manual
  • OSD Menu Multi-language
  • BLC Mode BLC, HLC, True WDR
  • WDR 120 dB
  • Gain Control AGC
  • Noise Reduction 2D, 3D
  • White Balance Auto, Manual
  • Smart IR Auto, Manual

Certifications

  • CE EN55032, EN55024, EN50130-4, Safety UL60950-1, CAN/CSA C22.2 No.60950-1
  • Electromagnetic Compatibility (EMC), FCC CFR 47 Part 15 subpart B,, ANSI C63.4-2014

Interface

  • Audio Input: One (1) Channel, RCA Jack plus One (1) Built-in Microphone
  • The default audio input is via the built-in microphone; users must access the Advanced menu to switch the audio input to the cable option. The camera accepts audio from only one input source.

Electrical

  • Power Supply 24 VAC ± 30% or 12 VDC ± 30%
  • Power Output 12 VDC, 2 W Maximum
  • Power Consumption Maximum 17.2 W (12 VDC, IR on)

Environmental

  • Operating Conditions –30° C to +60° C (–22° F to +140° F), Less than 90% RH
  • Storage Conditions –30° C to +60° C (–22° F to +140° F), Less than 90% RH
  • Ingress Protection IP67

Construction

  • Casing Aluminium
  • Dimensions 244.10 mm x 90.40 mm x 90.40 mm (9.61 in. x 3.56 in. x 3.56 in.)
  • Net Weight 0.81 kg (1.79 lb)
  • Gross Weight 1.06 kg (2.34 lb)
