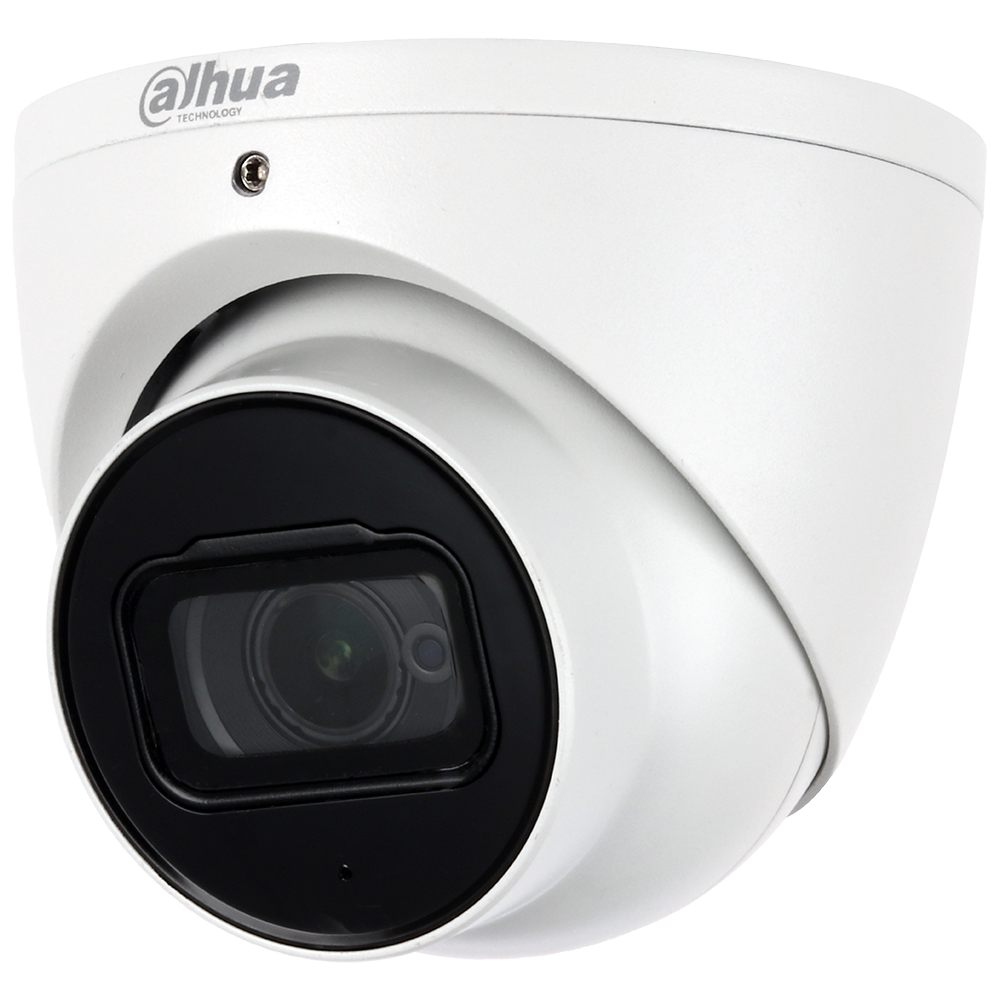

Dahua A52AJ62 5MP 2.8mm Multi-format Eyeball Camera

Discontinued – Recommended Replacement: A52BJ62

Features

Camera

• Image Sensor 1/2.8-in. STARVIS™ CMOS Sensor
• Effective Pixels 2592 (H) x 1944 (V), 5 MP
• Scanning System Progressive
• Electronic Shutter Speed 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.005 lux at F1.6, 30 IRE, 0 lux with IR on
• S/N Ratio More than 65 dB
• IR Distance Up to 50.0 m (164.04 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Two (2)

Lens

• Lens Type Fixed Lens, Fixed Iris
• Mount Type Board-in
• Focal Length 2.8 mm
• Maximum Aperture F1.6
• Angle of View Horizontal: 98°
• Close Focus Distance 800 mm (31.50 in.)

Video

• Maximum Resolution 5 MP (2592 x 1944)
• Frame Rate 5 MP at 20 fps, 4 MP at 30 fps, 1080p at 30 fps
• Video Output One (1) BNC HDCVI High-definition Channel or, One (1) BNC CVBS Channel, switchable
• Day/Night Auto (ICR), Manual
• OSD Menu Multi-language
• BLC Mode BLC, HLC, True WDR
• WDR 120 dB
• Gain Control AGC
• Noise Reduction 2D, 3D
• White Balance Auto, Manual
• Smart IR Auto, Manual

Certifications

• CE EN55032, EN55024, EN50130-4
• Safety UL60950-1, CAN/CSA C22.2 No.60950-1
• Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014

Interface

• Audio Input: One (1) Channel, RCA Jack plus One (1) Built-in Microphone
• The default audio input is via the built-in microphone; users must access the Advanced menu to switch the audio input to the cable option. The camera accepts audio from only one input source.

Electrical

• Power Supply 12 VDC ± 30%
• Power Consumption Maximum 7 W (12 VDC, IR on)

Environmental

• Operating Conditions –40° C to +60° C (–40° F to +140° F), Less than 90% RH
• Storage Conditions –40° C to +60° C (–40° F to +140° F), Less than 90% RH
• Ingress Protection IP67

Construction

• Casing Aluminium
• Dimensions ø106.0 mm x 99.20 mm (ø4.17 in. x 3.90 in.)
• Net Weight 0.48 kg (1.56 lb)
• Gross Weight 0.63 kg (1.39 lb)
