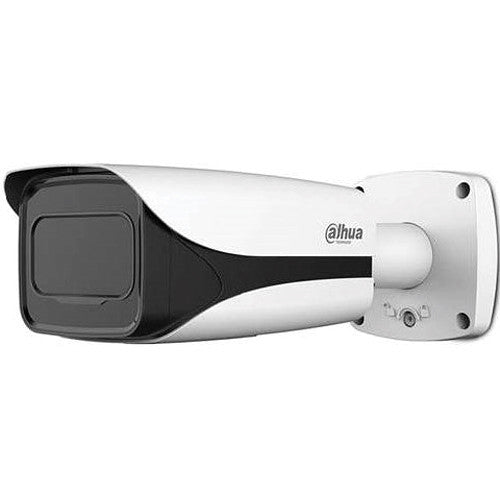

Dahua A83ABBZ Features
Camera
- Image Sensor 1/2-in. CMOS Imager
- Effective Pixels 3840(H) x 2160(V), 8 MP
- Scanning System Progressive
- Electronic Shutter Speed 1/1 s to 1/100,000 s
- Minimum Illumination Color: 0.01 lux at F1.5, 0 lux with IR on
- S/N Ratio More than 65 dB
- IR Distance Up to 100 m (328.08 ft)
- IR On/Off Control Auto, Manual
- IR LEDs Four (4)
Lens
- Lens Type Motorized Lens / Auto Iris
- Mount Type Board-in
- Focal Length 3.7 mm to 11 mm
- Max Aperture F1.5
- Angle of View Horizontal: 46° to 112°
- Focus Control Auto, Manual
- Close Focus Distance 200 mm (7.87 in.)
Pan / Tilt / Rotation
- Range Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotation: 0° to 360°
Video
- Resolution 8 MP (3840 x 2160)
- Frame Rate 3840 x 2160 at 15 fps, 2560 x 1440 at 30 fps
- Video Output One (1) BNC HDCVI 4K Ultra High-definition Channel and, One (1) BNC CVBS Channel
- Transmission Distances: Please see Datasheet
- Day/Night Auto (ICR), Manual
- On-Screen Display Multi-language
- BLC Mode BLC, HLC, WDR
- WDR 120 dB
- Gain Control AGC
- Noise Reduction 2D/3D
- White Balance Auto, Manual
- Smart IR Auto, Manual
Interface
- Audio Input: One (1) Channel
- Alarm Input: Two (2) Channels, Output: One (1) Channel
Electrical
- Power Supply, Input 24 VAC ±25%, 12 VDC ±25%
- Power, Output 12 VDC, 4 W maximum
- Power Consumption 18.4 W maximum
Certifications
- Safety UL60950-1+CAN/CSA C22.2 No.60950-1
- Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014
Environmental
- Operating Conditions -40° C to +60° C (-40° F to +140° F), Less than 90% RH
- *Initiate startup above -40° C (-40° F)
- Storage Conditions -40° C to +60° C (-40° F to +140° F), Less than 90% RH
- Ingress Protection IP67
- Vandal Resistance IK10
Construction
- Casing Aluminium
- Dimensions 273.0 mm x 95.0 mm x 95.0 (10.76 in. x 3.74 in. x 3.74 in.)
- Net Weight 1.16 kg (2.56 lb)
- Gross Weight 1.52 kg (3.35 lb)
