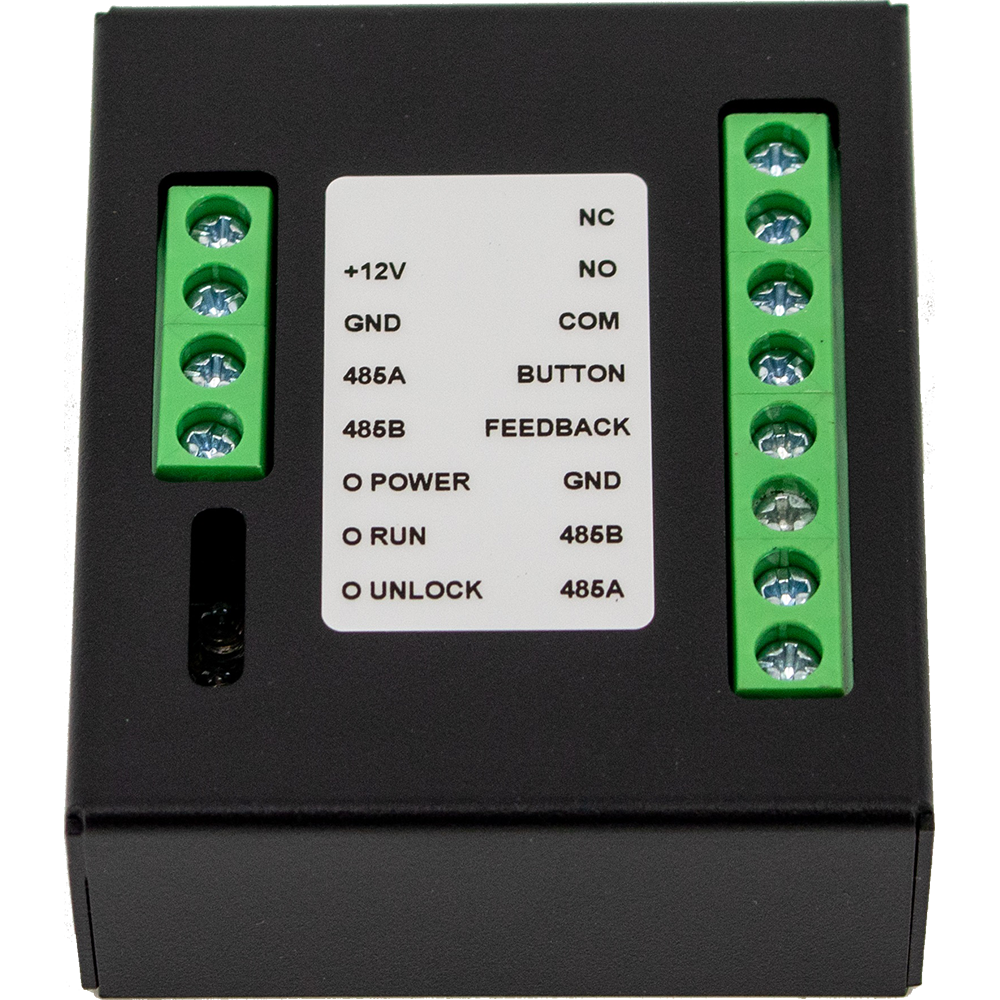

Dahua DEE1010B Extension module for VTO second door

Controls • Lock NO Output • Lock NC Output • Door Open Button • Door Status Detection Input Card Swipe (card reader and unlock button required) Electrical and Environmental Power Supply 12 VDC, ±10% Power Consumption Standby: ≤ 0.5 W Working: ≤ 1 W Operating Temperature –10° C to +60° C (14° F to +140° F), 10% to 90% Relative Humidity Construction Dimensions (L x W x H) 58.0 mm x 51.0 mm x 24.50 mm (2.28 in. x 2.0 in. x 0.96 in.) Net Weight 0.56 kg (1.23 lb)

Access Control Extension Module
