Dahua DH-EPC230U

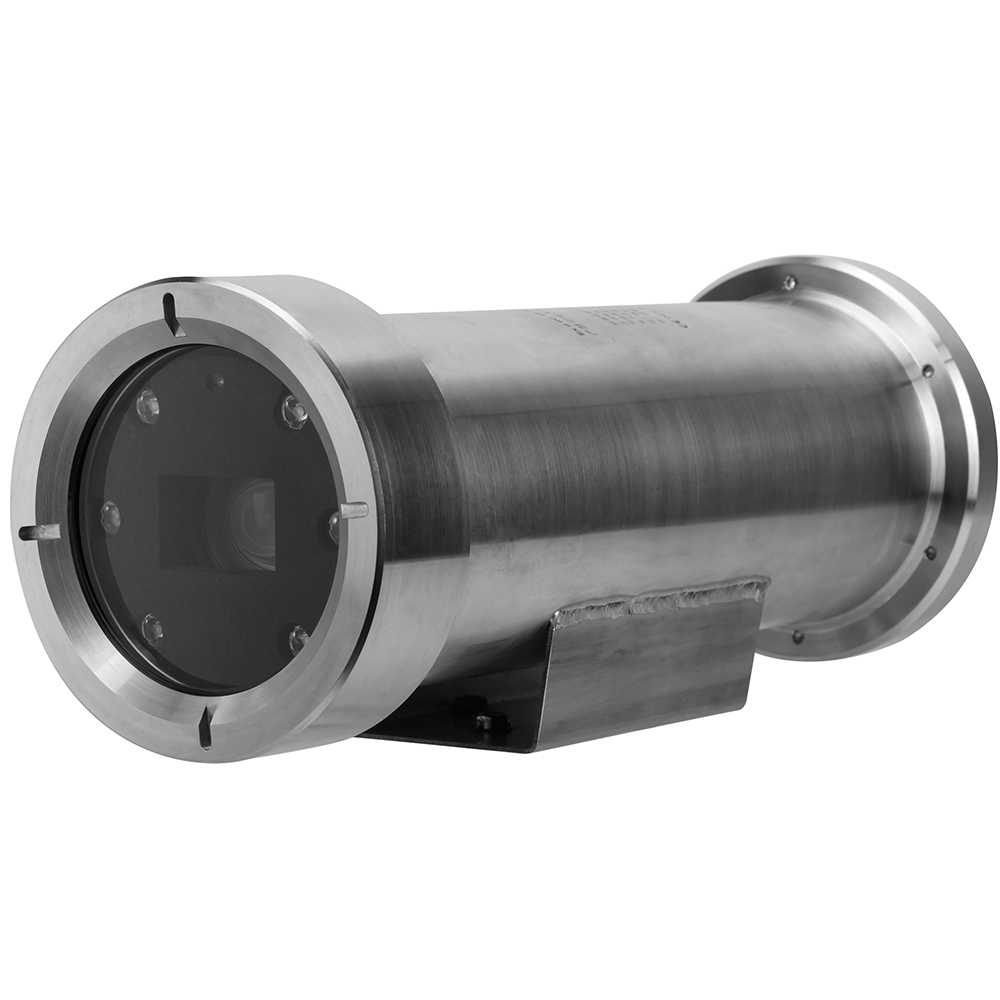

Dahua DH-EPC230U 2MP Explosion-protected IR Network Bullet Camera

Dahua

Dahua DH-EPC230U 2MP Explosion-protected IR Network Bullet Camera

$3,340.78
SKU: DH-EPC230U
Quantity:
Link to Manufacturer's Page

Contact

Features

Camera

  • Image Sensor 1/2.8-in. STARVIS™ CMOS
  • Effective Pixels 1920 (H) x 1080 (V), 2 MP
  • RAM/ROM 512 MB / 128 MB
  • Scanning System Progressive
  • Electronic Shutter Speed 1/1 s to 1/30,000 s
  • Minimum Illumination Color: 0.005 lux at F1.6, 0 lux at F1.6 (IR on)
  • S/N Ratio More than 55 dB
  • IR Distance Up to 100.0 m (328.04 ft)
  • IR On/Off Control Auto, Manual
  • IR LEDs Six (6)

Lens

  • Focal Length 4.5 mm to 135 mm
  • Max. Aperture F1.6 to F4.4
  • Angle of View Horizontal: 67.8° to 2.4°
  • Optical Zoom 30x
  • Focus Control Auto, Manual
  • Close Focus Distance 100 mm to 1000 mm (3.94 in. x 39.37 in.)

Video

  • Compression Smart H.265+, H.265, Smart H.264+, H.264
  • Streaming Capability Three (3) Streams
  • Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
  • Frame Rate Main Stream: 1080p, 1.3 MP, 720p at 60 fps, Sub Stream 1: D1/CIF at 30 fps, Sub Stream 2: 1080p, 1.3 MP, 720p at 30 fps
  • Bit Rate Control CBR/VBR
  • Bit Rate H.265/H.264: 448K to 8192 Kbps
  • Day/Night Auto (ICR), Color, B/W
  • Backlight Compensation BLC, HLC, True WDR (120 dB)
  • White Balance Auto, ATW, Indoor, Outdoor, Manual
  • Gain Control Auto, Manual
  • Noise Reduction Ultra DNR (2D/3D)
  • Advanced Features Motion Detection, Region of Interest, Electronic
  • Image Stabilization (EIS), Defog
  • Digital Zoom 16x
  • Flip 180°

Audio

  • Compression G.711a, G.711Mu, AAC, G.722, G.726, MPEG2-L2

Network

  • Ethernet RJ45 (10 Base-T, 100 Base-TX)
  • Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast / Multicast
  • Maximum User Access 20 Users
  • Edge Storage Network Attached Storage (NAS),, Local PC for instant recording,
  • Micro SD Card Slot, maximum 128 GB
  • Web Viewer IE, Chrome, Firefox, Safari
  • Management Software SmartPSS, DSS
  • Mobile Operating System IOS, Android

Certifications

  • See Datasheet for full list

Interface

  • Video Interface One (1) BNC Port (1.0 Vp-p), 75 Ω, RS485 One (1)
  • Audio Input: One (1) Channel, Output: One (1) Channel
  • Alarm Input: Two (2) Channels, Output: One (1) Channel

Electrical

  • Power Supply 220 VAC (100 VAC to 240 VAC)
  • Power Consumption 10 W, 25 W with IR on

Environmental

  • Operating Conditions –40° C to 60° C (–40° F to +140° F), Less than 95% RH
  • Ingress Protection IP68

Construction

  • Casing 304 Stainless Steel
  • Dimensions 396.10 mm x 149.50 mm x 143.0 mm (15.59 in. x 5.89 x 5.63 in.)
  • Net Weight 8.70 kg (19.18 lb)
  • Gross Weight 10.40 kg (22.93 lb)

Intelligence

  • IVS triggers an alarm and takes a defined action for the following events:
  • Standard Features
  • Tampering with the camera.
  • Camera loses or changes focus drastically.
  • Error writing to an onboard Micro SD card.
  • Error sending or receiving data over the network.
  • Unauthorized access to the camera.
  • Premium Features
  • Motion An object moves through any part of the scene.
  • Tripwire A target crosses a user-defined line.
  • Intrusion A target enters or exits a defined perimeter.
  • Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
  • Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
  • Advanced Features
  • Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
  • Heat Map Generates a visual representation of data.
