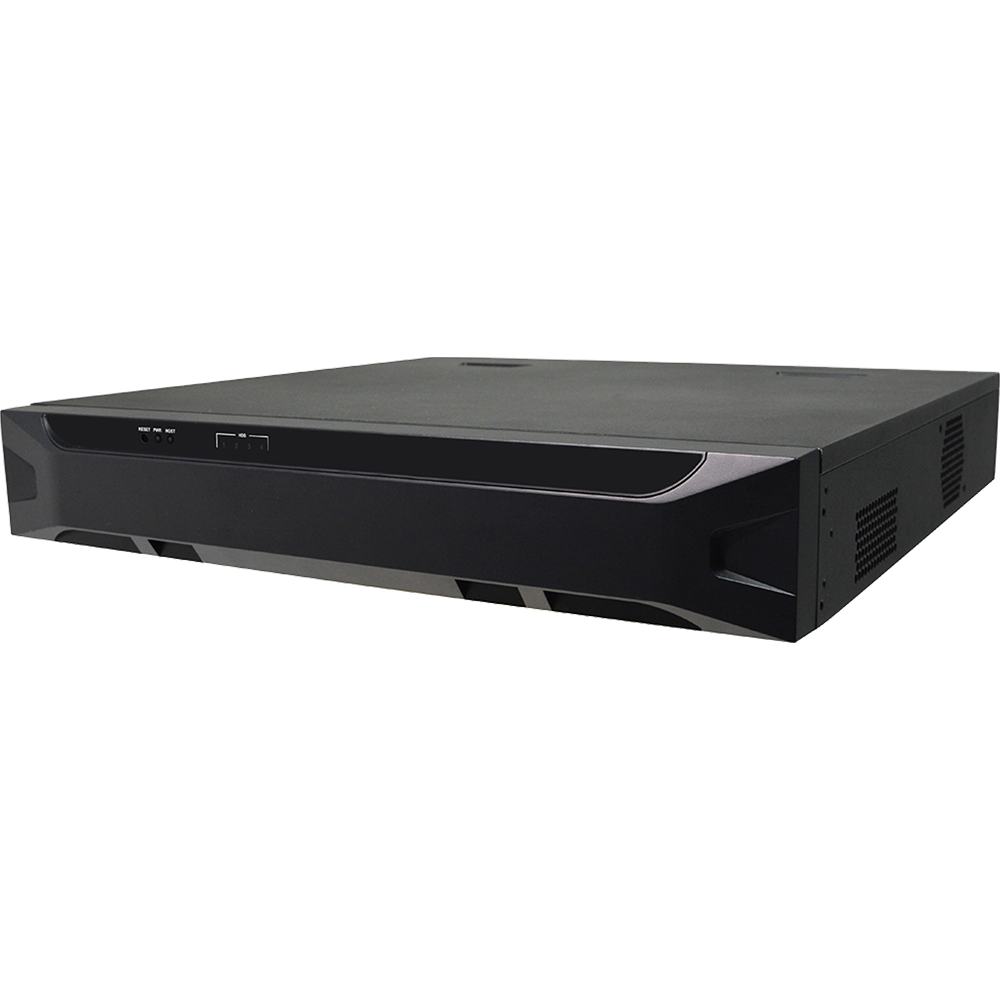

Dahua DH-ESS1504C Features
Interface
- eSATA One (1) Port, up to 3 Gbps
Capacity
- HDD Four (4) SATA III Ports
- Storage up to 8 TB Capacity for each HDD
- Backup up to 2 TB Capacity for each HDD
Performance
- Read > 64 MB/s
- Write > 64 MB/s
Electrical/Environmental
- Power Supply 100 VAC to 240 VAC, 50/60 Hz
- Power Consumption 6.8 W (without HDD)
- Fan One (1)
- Operating Conditions 0° C to +40° C (32° F to 104° F), 86 kpa to 106 kpa, 10% to 90% RH
- Storage Conditions –20° C to +70° C (–4° F to 158° F), 5% to 90% RH
- Dimensions (W x H x D) 1.5U, 440.0 mm x 70.0 mm x 408.0 mm (17.32 in. x 2.76 in. 16.06)
- Weight 4.20 kg (9.26 lb)
- Installation Standard 19-in. rack installation
Certifications
- Safety EN 60950-1:2006+A11:2009+A1:2010+ A12:2011 + A2:2013, IEC 60950-1:2005 (Second Edition) + A1:2009 + A2:2013
- Electromagnetic Compatibility (EMC) CFR 47 FCC Part 15 Subpart B, ANSI C63.4 2009, ICES-003 Issue 5, CISPR Pub. 22
Please note: This is not an NVR. It can only be used in conjunction with a Dahua NVR that has an eSata port built-in.
