Replaced by the A21BL02 or A21BL03.

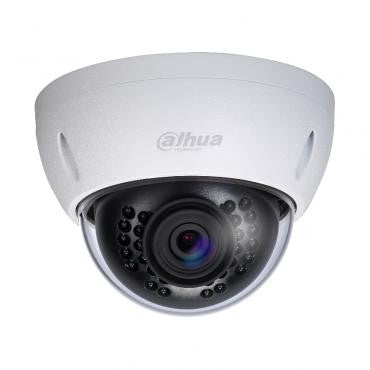

Dahua DH-HAC-HDBW12A0EN Features
Camera
- Image Sensor 1/2.7" 2Megapixel CMOS
- Effective Pixels 1930(H)×1088(V)
- Electronic Shutter 1/60s~1/100,000s
- Video Frame Rate 30fps@1080P
- Synchronization Internal
- Mini. Illumination 0.02Lux/F2.0(AGC ON), 0Lux IR on
- Video Output 1-channel BNC HDCVI high definition video output
- Camera Features
- Max. IR LEDs Length 30m, Smart IR
- Day/Night Auto(ICR) / Color / B/W
- Noise Reduction 2D
Lens
- Focal Length 2.8mm (3.6mm 6mm optional)
- Angle of View H: 89.9º(59.4º/41.4º)
- Mount Type M12
General
- Power Supply DC12V±20%
- Power Consumption Max 3.5W
- Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
- Transmission Distance Over 500m via 75-3 coaxial cable
- Ingress Protection IP67 & IK10
- Dimensions(W×D×H) Φ109.9mm×81.0mm
- Weight 0.3kg
- Material Metal
