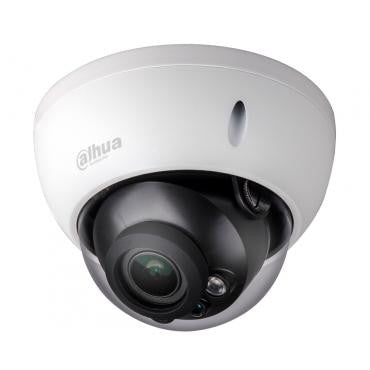

Dahua DH-HAC-HDBW12A0RN-VF 2MP IR Vari-focal HDCVI Dome Camera
Dahua DH-HAC-HDBW12A0RN-VF 2MP IR Vari-focal HDCVI Dome Camera

Dahua

Dahua DH-HAC-HDBW12A0RN-VF 2MP IR Vari-focal HDCVI Dome Camera

Sale price$144.00
SKU: DH-HAC-HDBW12A0RN-VF
Quantity:

Contact

Dahua DH-HAC-HDBW12A0RN-VF Features

Camera

  • Image Sensor 1/2.7" CMOS
  • Effective Pixels 1920(H) × 1080(V), 2MP
  • Scanning System Progressive
  • Electronic Shutter Speed 1/50(60)s~1/100,000s
  • Minimum Illumination Color: 0.02 Lux@F1.4;
  • B/W: 0 Lux@F1.4 (IR On)
  • S/N Ratio More than 65dB
  • IR Distance IR Distance Up to 30m (98ft)
  • IR On/Off Control Auto
  • IR LEDs 2

Lens

  • Lens Type Vari-focal Lens / Fixed Iris
  • Mount Type Board-in
  • Focal Length 2.7mm - 12mm
  • Max Aperture F1.4
  • Angle of View H: 99° - 37°
  • Focus Control Manual
  • Close Focus Distance 50mm ~ 270mm (1.97'' ~ 10.63'')
  • Pan/Tilt/Rotation Pan: 0° ~ 355°
  • Tilt: 0° ~ 75°
  • Rotation: 0° ~ 355°

Video

  • Resolution 1080p (1920×1080)
  • Frame Rate 30fps@1080p
  • Video Output 1-channel BNC HDCVI High Definition Video Output
  • Day/Night Auto (ICR)
  • BLC Mode BLC
  • White Balance AWB
  • Gain Control AGC
  • Noise Reduction 2D
  • Smart IR Auto
  • Certifications FCC, UL

Electrical

  • Power Supply 12V DC ±20%
  • Power Consumption Max. 5.8W (12V DC, IR on)

Environmental

  • Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • * Start up should be done at above -30°C (-22°F)
  • Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Ingress Protection & Vandal Resistance IP67 / IK10

Construction

  • Casing Aluminium
  • Dimensions Φ122.0mm × 88.9mm (Φ4.80" × 3.50")
  • Net Weight 0.45kg (0.99lb)
  • Gross Weight 0.58kg (1.28lb)
