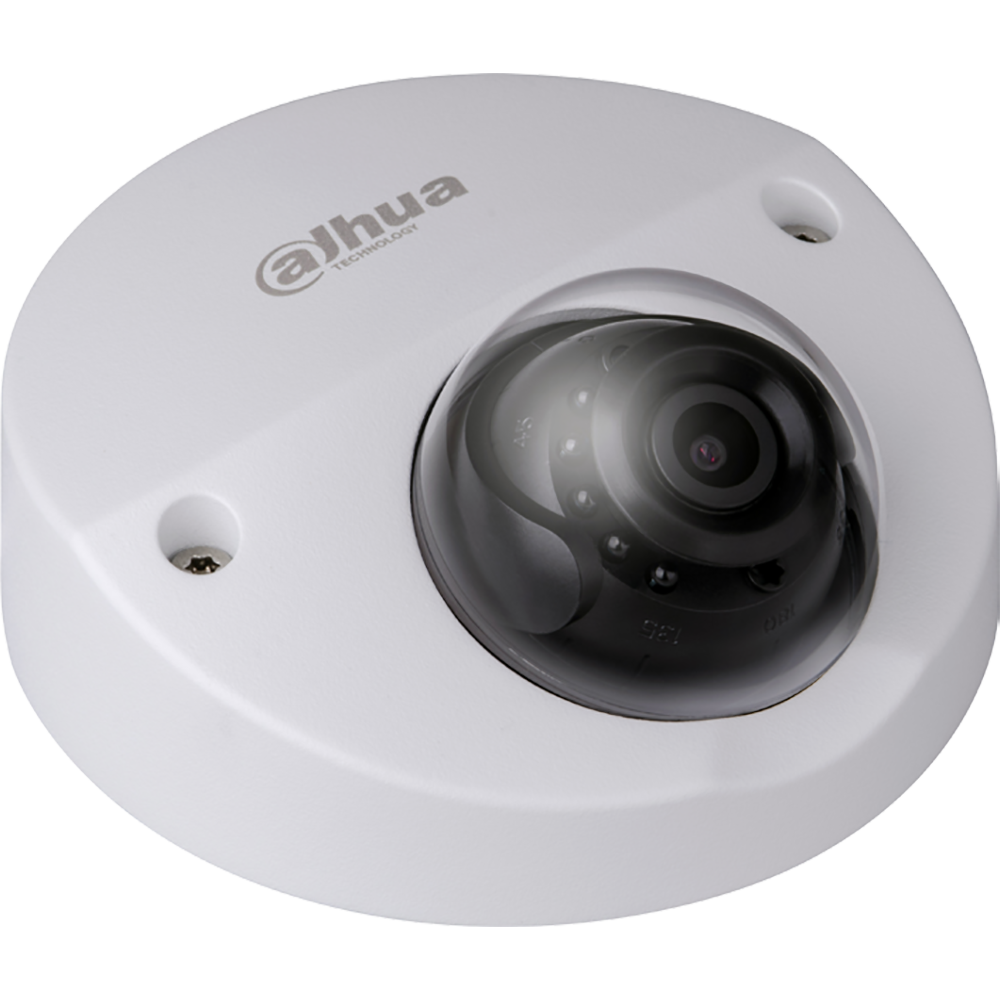

Dahua DH-HAC-HDBW2241FN-M 3.6mm 2MP HDCVI Mobile Wedge Camera

Replaced by DH-HAC-HDBW2241FN-M 2.8mm

Dahua DH-HAC-HDBW2241FN-M Features

Camera

• Image Sensor 1/2.8-in. CMOS
• Effective Pixels 1920(H) x 1080(V), 2 MP
• Scanning System Progressive
• Electronic Shutter Speed 1/3 s to 1/100,000 s
• Minimum Illumination 0.004 lux at F1.6, 30 IRE, 0 Lux with IR on
• S/N Ratio More than 65 dB
• IR Distance Up to 20 m (66 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Eight (8)

Lens

• Lens Type Fixed Lens / Fixed Iris
• Mount Type Board-in
• Focal Length 2.8 mm or 3.6 mm
• Max Aperture F1.6
• Angle of View, Horizontal 86.9°
• Close Focus Distance 1200 mm (47.24 in.)

Video

• Resolution 1080p (1920 x 1080)
• Frame Rate 1080p at 30 fps, 720p at 30/60 fps
• Video Output One (1) Channel BNC HDCVI Output, M12 A-coded Aviation Connector
• Day/Night Auto (ICR), Manual
• OSD Menu Multi-language
• BLC Mode BLC, HLC, WDR
• WDR True WDR (120 dB)
• Gain Control AGC
• Noise Reduction 2D/3D
• White Balance Auto, Manual
• Smart IR Auto, Manual

Certifications

• Safety UL60950-1+CAN/CSA C22.2 No.60950-1
• Mobile Applications EN 50155 (EN50121-3-2, IEC61373)
• Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014, EN55032, EN55024, EN50130-4

Interface

• Audio Input: One (1) Channel plus a Built-in Microphone
• Aviation Connector 1: Power, 2: Video Ground, 3: Power Ground, 4: Video

Electrical

• Power Supply 12 VDC ±30%
• Power Consumption Maximum 3.6 W

Environmental

• Operating Conditions -40° C to +60° C (-40° F to +140° F), Less than 90% RH
• Initiate startup above -30°C (-22°F)
• Storage Conditions -40° C to +60° C (-40° F to +140° F), Less than 90% RH
• Ingress Protection IP67, IP6K9K
• Vandal Resistance IK10

Construction

• Casing Aluminium
• Dimensions ø106.0 mm x 50.30 mm (ø4.17 in. x 1.98 in.)
• Net Weight 0.31 kg (0.68 lb)
• Gross Weight 0.45 kg (0.99 lb)
