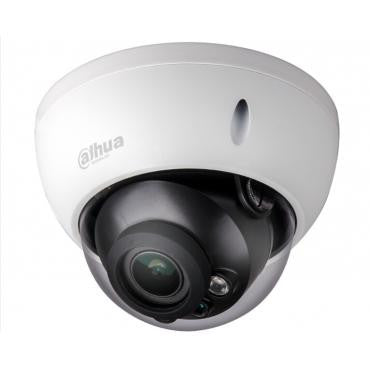

Dahua DH-HAC-HDBW22A1RN-Z 2.1MP IR Vari-focal HDCVI Dome Camera

Discontinued; replaced by the A22AM9Z

Dahua DH-HAC-HDBW22A1RN-Z Features

Camera

• Image Sensor 1/2.7" CMOS
• Effective Pixels 1928(H) × 1088(V), 2.1MP
• Scanning System Progressive
• Electronic Shutter Speed 1/3s~1/300,000s
• Minimum Illumination 0.03Lux/F1.4, 0Lux IR on
• S/N Ratio More than 65dB
• IR Distance IR distance Up to 30m (98ft)
• IR On/Off Control Auto
• IR LEDs 2

Lens

• Lens Type Motorized lens / Fixed iris
• Mount Type Board-in
• Focal Length 2.7mm ~ 12mm
• Max Aperture F1.4
• Angle of View 99° ~ 37°
• Focus Control Motorized
• Close Focus Distance 50mm ~ 270mm (1.97'' ~ 10.63'')
• Pan/Tilt/Rotation Pan: 0° ~ 355°
• Tilt: 0° ~ 75°
• Rotation: 0° ~ 355°

Video

• Resolution 1080p (1920×1080)
• Frame Rate 30fps@1080p
• Video Output 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS standard definition video output
• SD tester out
• Day/Night Auto (ICR)
• BLC Mode BLC
• White Balance AWB
• Gain Control AGC
• Noise Reduction 2D/3D
• WDR 120dB
• Smart IR Auto
• Certifications FCC, UL

Electrical

• Power Supply 12V DC ±25%
• Power Consumption Max 5W (12V DC, IR on)

Environmental

• Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• * Start up should be done at above -30°C (-22°F)
• Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Ingress Protection & Vandal Resistance IP67, IK10

Construction

• Casing Aluminium
• Dimensions Φ120.0mm × 88.9mm (Φ4.8" × 3.5")
• Net Weight 0.45kg (0.99lb)
• Gross Weight 0.6kg (1.32lb)
