Replaced by the A21BL03.

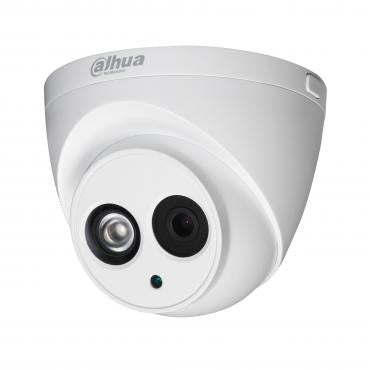

Dahua DH-HAC-HDW12A0EN Features
Camera
- Image Sensor 1/2.7" CMOS
- Effective Pixels 1920(H) × 1080(V), 2MP
- Scanning System Progressive
- Electronic Shutter Speed 1/50(60)s~1/100,000s
- Minimum Illumination* Color: 0.02 Lux@F2.0;
- B/W: 0 Lux@F2.0 (IR On)
- S/N Ratio More than 65dB
- IR Distance IR Distance Up to 50m (165ft)
- IR On/Off Control Auto
- IR LEDs 1
Lens
- Lens Type Fixed Lens / Fixed Iris
- Mount Type Board-in
- Focal Length 3.6mm / 6mm Options
- Max Aperture F2.1 / F2.0
- Angle of View H: 89.9°/ 59.4°
- Close Focus Distance 70mm / 190mm
- 2.76'' / 7.48''
- Pan/Tilt/Rotation Pan: 0° ~ 360°
- Tilt: 0° ~ 70°
- Rotation: 0° ~ 360°
Video
- Resolution 1080p (1920×1080)
- Frame Rate 30fps@1080p
- Video Output 1-channel BNC HDCVI High Definition Video Output
- Day/Night Auto (ICR)
- BLC Mode BLC
- White Balance AWB
- Gain Control AGC
- Noise Reduction 2D
- Smart IR Auto
- Certifications FCC, UL
Electrical
- Power Supply 12V DC ±20%
- Power Consumption Max. 3.6W (12V DC, IR on)
Environmental
- Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- * Start up should be done at above -30°C (-22°F)
- Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- Ingress Protection IP67
Construction
- Casing Aluminium (inner core) + PC (cover)
- Dimensions Φ110.0mm×95.5mm (Φ4.33"×3.76")
- Net Weight 0.30kg (0.66lb)
- Gross Weight 0.47kg (1.04lb)
