Discontinued; replaced by the DH-HAC-HDW22A1RN-Z.

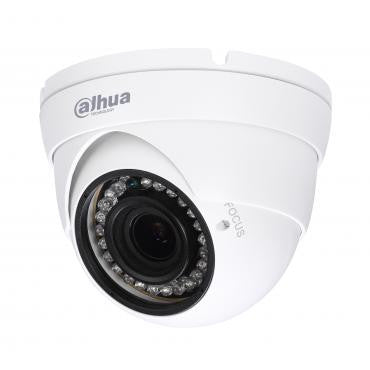

Dahua DH-HAC-HDW12A0RN-VF Features
Camera
- Image Sensor 1/2.7" CMOS
- Effective Pixels 1920(H) × 1080(V), 2MP
- Scanning System Progressive
- Electronic Shutter Speed 1/50(60)s~1/100,000s
- Minimum Illumination Color: 0.02 Lux@F1.4;
- B/W: 0 Lux@F1.4 (IR On)
- S/N Ratio More than 65dB
- IR Distance IR Distance Up to 30m (98ft)
- IR On/Off Control Auto
- IR LEDs 24
Lens
- Lens Type Vari-focal Lens / Fixed Iris
- Mount Type Board-in
- Focal Length 2.7mm - 12mm
- Max Aperture F1.4
- Angle of View H: 99° - 37°
- Focus Control Manual
- Close Focus Distance 50mm ~ 270mm (1.97'' ~ 10.63'')
- Pan/Tilt/Rotation Pan: 0° ~ 360°
- Tilt: 0° ~ 90°
- Rotation: 0° ~ 360°
Video
- Resolution 1080p (1920 × 1080)
- Frame Rate 30fps@1080p
- Video Output 1-channel BNC HDCVI High Definition Video Output
- Day/Night Auto (ICR)
- BLC Mode BLC
- White Balance AWB
- Gain Control AGC
- Noise Reduction 2D
- Smart IR Auto
- Certifications FCC, UL
Electrical
- Power Supply 12V DC ±20%
- Power Consumption Max. 3.8W (12V DC, IR On)
Environmental
- Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- * Start up should be done at above -30°C (-22°F)
- Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- Ingress Protection IP67
Construction
- Casing Aluminium
- Dimensions Φ119.2mm × 98.8mm (Φ4.69" × 3.89")
- Net Weight 0.55kg (1.21lb)
- Gross Weight 0.72kg (1.59lb)
