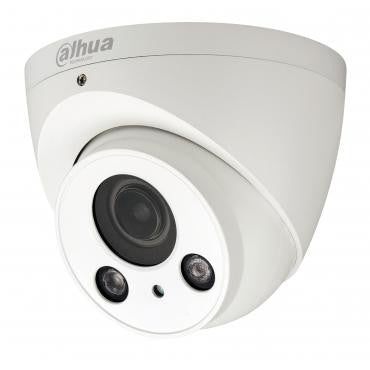

Dahua DH-HAC-HDW22A1EN 2.1MP IR Fixed HDCVI Eyeball Camera

Dahua DH-HAC-HDW22A1EN Features

Camera

• Image Sensor 1/2.7" CMOS
• Effective Pixels 1928(H) × 1088(V), 2.1MP
• Scanning System Progressive
• Electronic Shutter Speed 1/3s~1/300,000s
• Minimum Illumination 0.03Lux/F2.0, 0Lux IR on
• S/N Ratio More than 65dB
• IR Distance IR Distance Up to 50m (165feet)
• IR On/Off Control Auto
• IR LEDs 1

Lens

• Lens Type Fixed lens / Fixed iris
• Mount Type Board-in
• Focal Length 2.8mm / 3.6mm / 6mm Options
• Max Aperture F2.2 / F2.1 / F2.0
• Angle of View H: 115.6° / 90° / 59.4°
• Close Focus Distance 60mm / 100mm / 230mm
• 2.36'' / 3.94'' / 9.06''
• Pan/Tilt/Rotation Pan: 0° ~ 360°
• Tilt: 0° ~ 70°
• Rotation: 0° ~ 360°

Video

• Resolution 1080p (1920 × 1080)
• Frame Rate 30fps@1080p
• Video Output 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS standard definition video output
• Day/Night Auto (ICR)
• BLC Mode BLC
• White Balance AWB
• Gain Control AGC
• Noise Reduction 2D/3D
• WDR 120dB
• Smart IR Auto
• Certifications FCC, UL

Electrical

• Power Supply 12V DC ±25%
• Power Consumption Max 5.5W (12V DC, IR on)

Environmental

• Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• * Start up should be done at above -30°C (-22°F)
• Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Ingress Protection IP67

Construction

• Casing Aluminium (inner core) + PC (cover)
• Dimensions Φ110.0mm × 95.5mm (Φ4.33" × 3.76")
• Net Weight 0.3kg (0.67lb)
• Gross Weight 0.46kg (1.01lb)
