Discontinued & Replaced by the A22AH9Z

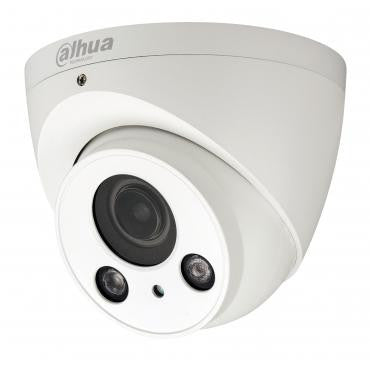

Dahua DH-HAC-HDW22A1RN-Z Features
Camera
- Image Sensor 1/2.7" CMOS
- Effective Pixels 1928 (H) × 1088 (V), 2.1MP
- Scanning System Progressive
- Electronic Shutter Speed 1/3s~1/300,000s
- Minimum Illumination 0.03Lux/F1.4, 0Lux IR on
- S/N Ratio More than 65dB
- IR Distance IR distance Up to 60m (200ft)
- IR On/Off Control Auto
- IR LEDs 2
Lens
- Lens Type Motorized lens / Fixed iris
- Mount Type Board-in
- Focal Length 2.7mm ~ 12mm
- Max Aperture F1.4
- Angle of View 99° ~ 37°
- Focus Control Motorized
- Close Focus Distance 50mm ~ 270mm (1.97'' ~ 10.63'')
- Pan/Tilt/Rotation Pan: 0° ~ 360°
- Tilt: 0° ~ 67°
- Rotation: 0° ~ 360°
Video
- Resolution 1080P (1920×1080)
- Frame Rate 30fps@1080p
- Video Output 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS standard definition video output
- Day/Night Auto (ICR)
- BLC Mode BLC
- White Balance AWB
- Gain Control AGC
- Noise Reduction 2D/3D
- WDR 120dB
- Smart IR Auto
Electrical
- Power Supply 12V DC ±25%
- Power Consumption Max 10W (12V DC, IR on)
Environmental
- Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- * Start up should be done at above -30°C (-22°F)
- Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- Ingress Protection IP67
Construction
- Casing Aluminium
- Dimensions Φ122.0mm × 104.9mm (Φ4.8" × 4.13")
- Net Weight 0.55kg (1.22lb)
- Gross Weight 0.73kg (1.61lb)
