Discontinued; replaced by the DH-HAC-HFW22A1RN-Z.

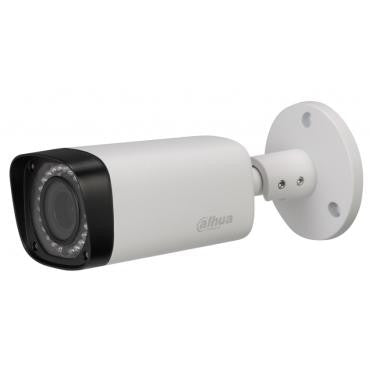

Dahua DH-HAC-HFW12A0RN-VF Features
Camera
- Image Sensor 1/2.7" CMOS
- Effective Pixels 1920(H) × 1080(V), 2MP
- Scanning System Progressive
- Electronic Shutter Speed 1/60s~1/100,000s
- Minimum Illumination 0.02Lux/F1.4, 0Lux IR on
- S/N Ratio More than 65dB
- IR Distance IR distance Up to 30m (98feet)
- IR On/Off Control Auto
- IR LEDs 24
Lens
- Lens Type Vari-focal lens / Fixed iris
- Mount Type Board-in
- Focal Length 2.7mm ~ 12mm
- Max Aperture F1.4
- Angle of View H: 99° ~ 37°
- Focus Control Manual
- Close Focus Distance 50mm ~ 270mm (1.97'' ~ 10.63'')
- Pan/Tilt/Rotation Pan: 0° ~ 360°
- Tilt: 0° ~ 87°
- Rotation: 0° ~ 360°
Video
- Resolution 1080p (1920 × 1080)
- Frame Rate 30fps@1080p
- Video Output 1-channel BNC HDCVI high definition video output
- Day/Night Auto (ICR)
- BLC Mode BLC
- White Balance AWB
- Gain Control AGC
- Noise Reduction 2D
- Smart IR Auto
- Certifications FCC (SEFD1504040-A)
- UL (E234884-A84-UL)
Electrical
- Power Supply 12V DC ±20%
- Power Consumption Max 3.8W (12V DC, IR on)
Environmental
- Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- * Start up should be done at above -30°C (-22°F)
- Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- Ingress Protection IP67
Construction
- Casing Aluminium
- Dimensions Φ213.0mm × 90.4mm (Φ8.39" x 3.56")
- Net Weight 0.55kg (1.22lb)
- Gross Weight 0.78kg (1.72lb)
