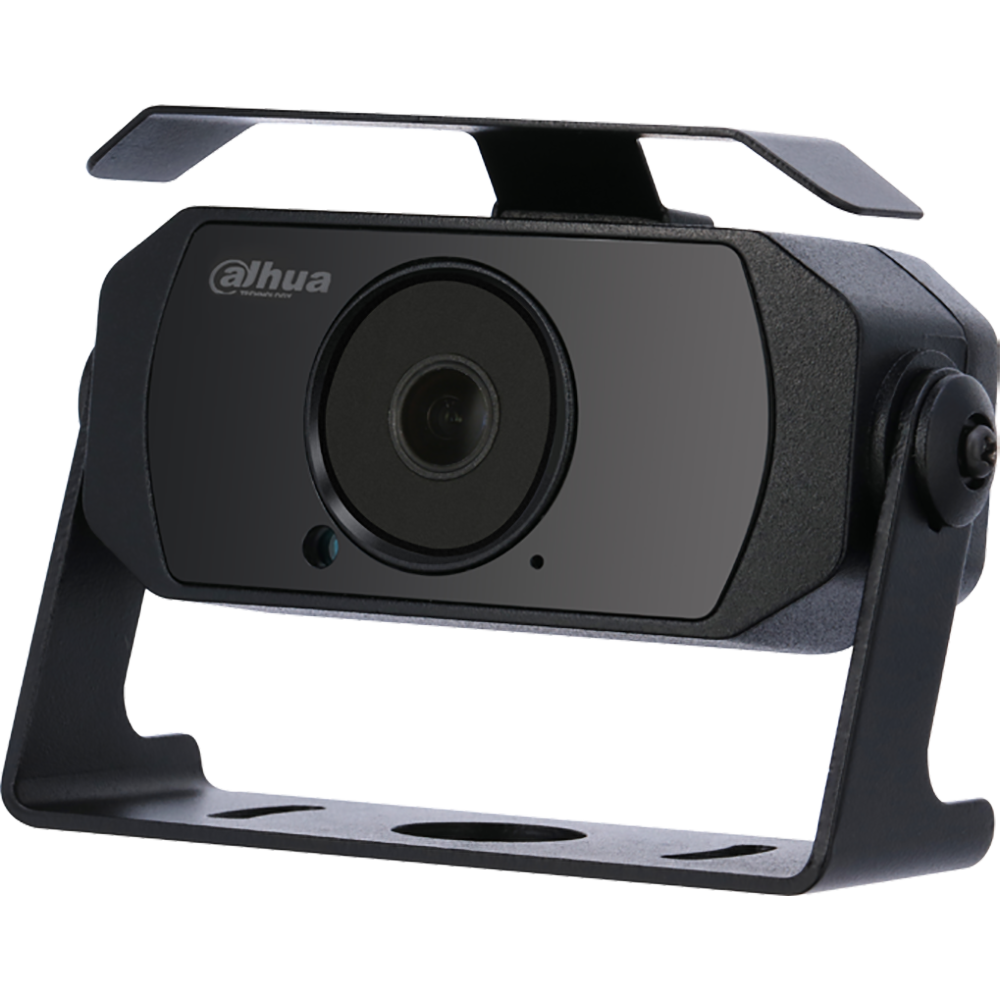

Dahua DH-HAC-HMW3200N Features
General
- 1/2.9-in Progressive-scan CMOS Sensor
- Maximum 1080p at 30 fps Resolution
- Aviation Connector for HDCVI Output
- 2.8 mm Fixed Lens
- Built-in Microphone
- Maximum IR Distance 20 m (66 ft) with Smart IR
- IP67 Environmental Protection and Shock-proof Housing
- 5-year Warranty when purchased from Network Camera Store, an authorized Dahua dealer
Camera
- Image Sensor 1/2.9-in. CMOS
- Effective Pixels 1920(H) x 1080(V), 2.0 MP
- Scanning System Progressive
- Electronic Shutter Speed 1/30 s to 1/100000 s
- Minimum Illumination 0.02 Lux at F2.0, 0 Lux (with IR on)
- S/N Ratio More than 65 dB
- IR Distance Up to 20 m (65.62 ft)
- IR On/Off Control Auto, Manual
- IR LEDs One (1)
Lens
- Lens Type Fixed Lens / Fixed Iris
- Mount Type Board-in
- Focal Length 2.8 mm
- Max Aperture F2.0
- Angle of View, Horizontal 106.0°
- Close Focus Distance 500 mm (19.69 in.)
Pan / Tilt / Rotation Range
- Pan: 0° to 360°
- Tilt: 0° to 180°
Video
- Resolution 1080p (1920 x 1080)
- Frame Rate 1080p at 30 fps, 720p at 30/60 fps
- Video Output One (1) BNC HDCVI High-definition Channel, M12 A-coded Aviation Connector
- Day/Night Auto (ICR), Manual
- OSD Menu Multi-language
- BLC Mode BLC, HLC, DWDR
- WDR Digital WDR
- Gain Control AGC
- Noise Reduction 2D
- White Balance Auto, Manual
- Smart IR Auto, Manual
- Mirror Horizontal Mirror, default
Certifications
- Safety EN50155 (EN50121-3-2, IEC 61373), EN55032, EN55024, EN50130-4, UL60950-1+CAN/CSA C22.2 No.60950-1
- Electromagnetic Compatibility (EMC)
- FCC CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014
Interface
- Audio Built-in Microphone
Electrical
- Power Supply 12 VDC ±25%
- Power Consumption Maximum 2.9 W (12 VDC with IR on)
Environmental
- Operating Conditions -40° C to +70° C (-40° F to +158° F), Less than 90% RH
- Initiate startup above -40° C (-40° F)
- Storage Conditions -40° C to +70° C (-40° F to +158° F), Less than 90% RH
- Ingress Protection IP67
Construction
- Casing Aluminium
- Dimensions 107.30 mm x 42.50 mm x 54.50 mm (4.22 in. x 1.67 in. x 2.15 in.)
- Net Weight 0.31 kg (0.68 lb)
- Gross Weight 0.42 kg (0.93 lb)
Dahua HDCVI Mobile Solutions Overview
Design for Mobile Surveillance
The compact black housing and black front face blends in with most vehicle interiors and minimizes interference with other installed devices. The design also minimizes vibration and shock from normal driving situations. The compact design allows for quick and easy installation with 3M double-sided tape eliminating the need to damage assets with traditional installation methods.
Four Signals over a Single Coaxial Cable
HDCVI technology simultaneously transmits video, audio, power, and data over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms. HDCVI along with PoC technology delivers power to devices at the edge, simplifying installation. (Requires PoC Transceivers for each channel and an external power supply for each transceiver.)
Audio
The camera is designed with a built-in microphone for to pickup audio and transmit the signal over the aviation connector cable. Dahua's HDCVI audio compression technology ensures synchronization of audio and video to provide complete visual and audible evidence to resolve incidents.
Shock Proof
Vibration is inevitable in mobile applications. In order to avoid image or connection failure, the hardware structure of the mobile camera is shock-proof and is certified to the EN50155 standard. Plus, the mobile camera uses an M12 aviation connector for stable connection to an MCVR.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
Protection
With a working temperature range of –40 °C to +60 °C (–40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions.
