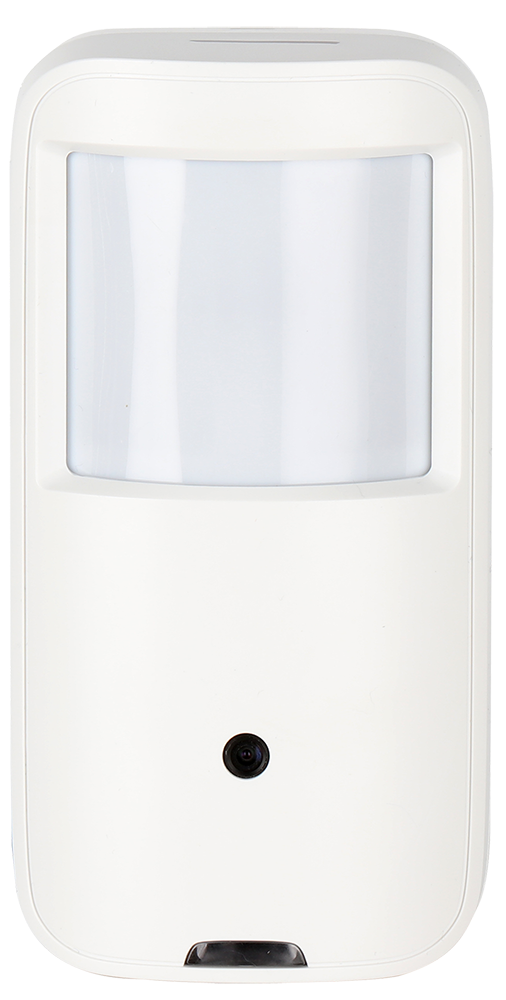

Dahua DH-HAC-HUM1220A-PIR Features
Camera
- Image Sensor 1/2.9-in. CMOS Sensor
- Effective Pixels 1920(H) x 1080(V), 2 MP
- Scanning System Progressive
- Electronic Shutter Speed 1/30 s to 1/100,000 s
- Minimum Illumination Color: 0.02 Lux at F2.0, B/W: 0.002 Lux at F.20
- S/N Ratio More than 65 dB
Lens
- Lens Type Fixed Lens / Fixed Iris
- Mount Type Board-in
- Focal Length 2.8 mm
- Maximum Aperture F2.0
- Horizontal Angle of View 100.5°
- Close Focus Distance 500 mm (1.97 in.)
Pan/Tilt/Rotation
- Range
- Pan: 0° to 180°
- Tilt: 0° to 180°
- Rotation: 0° to 360°
Video
- Resolution 1080p (1920 × 1080)
- Frame Rate 1080p @ 30 fps, 720p @ 30/60 fps
- Video Output One (1) Channel, BNC High-definition Video Output or
- CVBS Standard Definition Video Output (switchable)
- Day/Night Auto (electronic), Manual
- OSD Menu Multi-language
- BLC Mode BLC, HLC, DWDR
- WDR Digital WDR
- Gain Control AGC
- Noise Reduction 2D
- White Balance Auto, Manual
PIR
- Detection Passive Infrared
- Detection Range 12.0 m x 12.0 m (39.37 ft x 39.37 ft)
- Alarm Prompt Red LED, on or off
- Sensitivity Two-level (jumper)
- Pet Immunity ≤ 18.0 kg (39.68 lb)
- Resistance Light 6500 lux
- Installation Height Default bracket, wall mount: 2.20 m to 2.50 m (7.22 ft to 8.20 ft)
Certifications
- Safety EN55032, EN55024, EN50130-4, UL60950-1+CAN/CSA C22.2 No.60950-1
- Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014
Electrical
- Power Supply 12 VDC ± 25%
- Power Consumption Maximum 0.7 W (12 VDC, IR on)
Environmental
- Operating Conditions -10° C to +50° C (14° F to +122° F), Less than 90% RH
- Initiate startup above -10° C (14° F)
- Storage Conditions -10° C to +50° C (14° F to +122° F), Less than 90% RH
Construction
- Casing Plastic
- Dimensions 119.7 mm x 61.7 mm x 58.1 mm (4.71 in. x 2.43 in. x 2.29 in.)
- Net Weight 0.13 kg (0.29 lb)
- Gross Weight 0.18 kg (0.40 lb)
