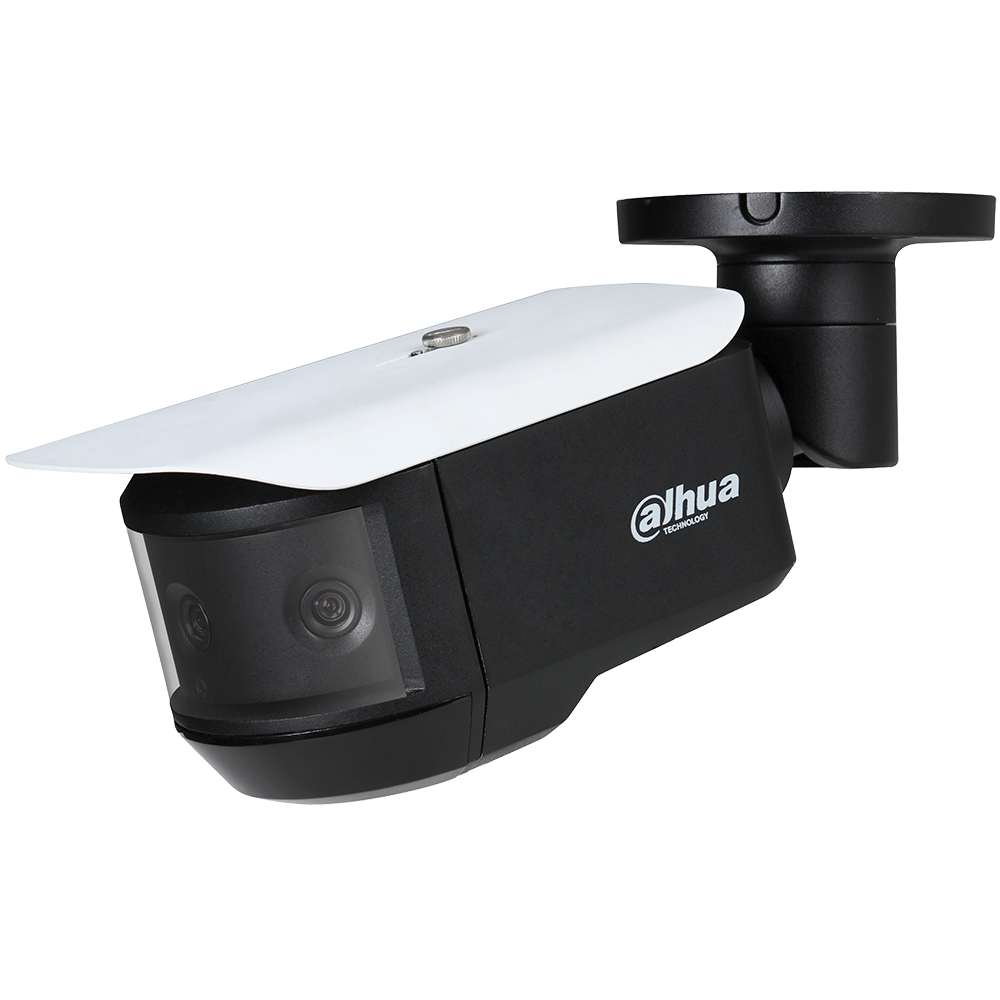

Dahua DH-HAC-PFW3601N-A180 3 x 2MP Multi-Sensor 180° Panoramic HDCVI IR Bullet Camera

Dahua DH-HAC-PFW3601N-A180 Features

Camera

• Image Sensor Three (3) 1/2.8-in. 2 MP STARVIS™ CMOS Sensors
• Effective Pixels 3840 (H) x 832 (V), Panoramic
• Scanning System Progressive
• Electronic Shutter Speed 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.005 Lux at F1.8 (30 IRE), 0 Lux at F1.8 with IR on
• S/N Ratio More than 65 dB
• IR Distance Distance up to 20.0 m (65.62 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Six (6)

Lens

• Lens Type Fixed Lens, Fixed Iris
• Mount Type Board-in
• Focal Length 3.6 mm
• Max. Aperture F1.8
• Horizontal Angle of View 180˚
• Close Focus Distance 500.0 mm (19.79 in.)

DORI¹ Distance

• Detect (8 ppf) 50 m (163 ft)
• Observe (19 ppf) 20 m (65 ft)
• Recognize (38 ppf) 10 m (33 ft)
• Identify (76 ppf) 5 m (16 ft)

Pan/Tilt/Rotation

• Range Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°

Video

• Resolution Panoramic Channel: 3840 x 832
• Individual Sensor Channel: 2 MP
• Frame Rate² 4K DVR: 3840 x 2160 at 15 fps, 4 MP DVR: 2560 x 1440 at 25 fps
• Video Output Four (4) Total Channels:
• One (1) BNC HDCVI Panoramic Video
• Three (3) BNC 2 MP HDCVI Video Channels

Video Transmission³

• RG-59/U Coax 4K: 500 m (1640.42 ft)
• 4 MP: 500 m (1640.42 ft)
• 1080p: 500 m (1640.42 ft)
• RG-6/U Coax 4K: 700 m (2296.59 ft)
• 4 MP: 700 m (2296.59 ft)
• 1080p: 800 m (2624.67 ft)
• CAT 6 UTP (balun required) 4K: 300 m (984.25 ft)
• 4 MP: 300 m (984.25 ft)
• 1080p: 300 m (984.25 ft)

Image Settings

• Day/Night Auto (ICR), Color, B/W
• OSD Menu Multi-language
• BLC Mode BLC, HLC, WDR
• WDR True Wide Dynamic Range (120 dB)
• Gain Control AGC
• Noise Reduction 2D/3D
• White Balance Auto, Manual
• Smart IR Auto, Manual

Interface

• Audio Input: One (1) Channel, RCA Jack
• Alarm Input: Two (2) Channels
• Output: One (1) Channel
• Test Interface One (1) Channel, 2-pin CVBS Video Output
• Upgrade Interface One (1) Channel, 4-pin USB Input
• Code Switcher One (1) Physical Code Switch (switches the source of the preset video)
• Menu Set One (1) five-direction Keyboard

Electrical

• Power Supply 12 VDC ± 25%, 2 A
• Power Consumption 22 W

Certifications

• Safety EN55032, EN55024, EN50130-4
• UL60950-1+CAN/CSA C22.2 No.60950-1)
• Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
• ANSI C63.4-2014

Environmental

• Operating Temperature -30 °C to +60 °C (-22 °F to +140 °F), Less than 90% relative humidity
• Initiate start-up above -30 °C (-22 °F)
• Storage Temperature -30 °C to +60 °C (-22 °F to +140 °F), Less than 90% relative humidity
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Aluminum
• Dimensions 286.0 mm x 119.0 mm x 106.0 mm (11.26 in. x 4.68 in. x 4.19 in.)
• Net Weight 1.50 kg (3.30 lbs)
• Gross Weight 2.0 kg (4.40 lbs)
