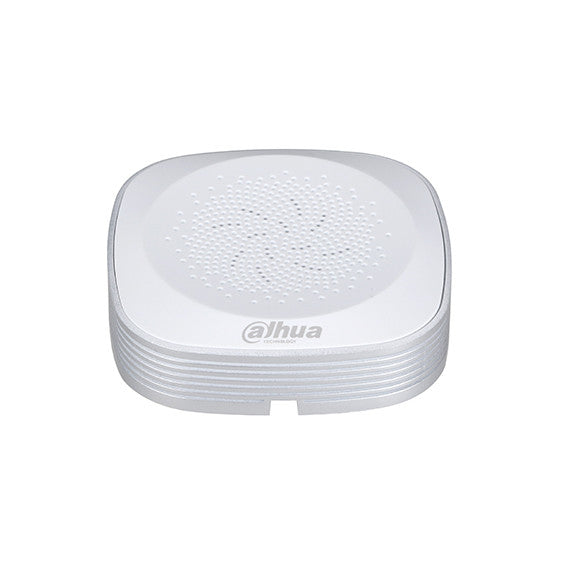

Dahua DH-HAP200 Features
- Scope 10.0 m² (32.81 ft²) to 100.0 m² (328.10 ft²)
- Sensitivity –30 dB
- Frequency Response 20 Hz to 20 KHz
- Directional Characteristics Omni-directional
- SNR 80 dB (1 m 40 dB Sound Source SPL), 50 dB (10 m 45 dB Sound Source SPL), 1 KHz at 1 Pa
- Dynamic Range 104 dB (1 KHz at Maximum dB SPL)
- Maximum Sustainable Sound Pressure 120 dB SPL (1 KHz, THD 1%)
- Output Impedance 600 Ω (non-equilibrium)
- Output Signal Amplitude 2.5 Vpp / –25 dB
- Working Voltage 12 VDC (9 VDC to 18 VDC)
- Working Current 50 mA
- Working Temperature –25° C to +70° C (–13° F to 158° F)
- Interface Audio Out: RCA, Cascade: RCA, Power In: DC Connector
- Color White and Silver
- Outer Shell PC and ABS Plastic
- Dimensions 79.60 mm x 79.60 mm x 21.50 mm (3.13 in. x 3.13 in. x 0.85 in.)
- Weight 0.06 kg (0.13 lb)
- Certifications CE & FCC
- Cord length 600mm (23.62 in), can be extended up to 300m
- Includes Basic Noise Reduction Technology
- Supports Cascading
- Please note: Must be used with cameras or storage devices that have audio function. Does not include a power supply. We recommend the PFM321.
