Dahua DH-IPC-EB54A0N

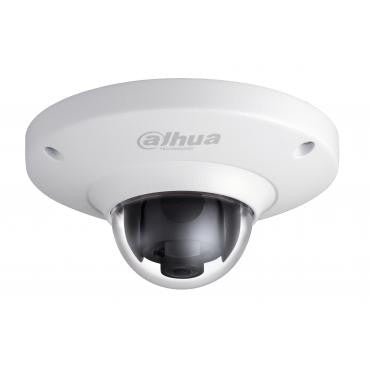

Dahua DH-IPC-EB54A0N 4MP Fixed Network Fisheye Camera

Dahua

Dahua DH-IPC-EB54A0N 4MP Fixed Network Fisheye Camera

$374.40
SKU: DH-IPC-EB54A0N
Quantity:
Link to Manufacturer's Page

Contact

Dahua DH-IPC-EB54A0N Features

Camera

  • Image Sensor 1/3" CMOS
  • Effective Pixels 2592(H ) x 1520(V)
  • ROM / RAM 128MB / 256MB
  • Scanning System Progressive
  • Electronic Shutter Speed 1/3 (4) ~ 1/100,000s
  • Minimum Illumination Color: 0.01Lux@F2.0;
  • B/W: 0.001Lux@F2.0
  • S/N Ratio More than 50dB
  • IR LEDs N/A

Lens

  • Lens Type Fixed
  • Mount Type Board-in
  • Focal Length 1.18mm
  • Max Aperture F2.0
  • Angle of View H: 180°
  • Focus Control Fixed
  • Alarm and Audio
  • Alarm In/Out 1/1
  • Audio In/Out 1/1 Built in Mic

Video

  • Compression H.264 / MJPEG
  • Streaming Capability 3 Streams
  • Resolution 4MP (2592×1520)/3MP (2048×1520)/UXGA (1600×1200) /1.3MP (1280×960)/720p (1280×720)/D1 (704×576/704×480) /CIF (352×288/352×240)
  • Frame Rate Main Stream 4MP (1~15fps), 3MP (1 ~ 30fps)
  • Sub Stream 1 D1/CIF (1 ~ 30fps)
  • Sub Stream 2 720p (1 ~ 20fps)
  • Bit Rate Control CBR / VBR
  • Bit Rate H.264: 20K ~ 8192Kbps
  • Day/Night Auto (Electronic) / Color / B/W
  • BLC Mode BLC / HLC / DWDR
  • White Balance Auto / Manual
  • Gain Control Auto / Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off / On (4 Zone, Rectangle)
  • Region of Interest Off / On (4 Zone)
  • Smart IR N/A
  • Privacy Masking Off / On (4 Area, Rectangle)

Intelligent Function

  • IVS Heat map

Network

  • Ethernet RJ-45 (10/100Base-T)
  • Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 20
  • Edge Storage NAS (Network Attached Storage), Local PC for instant recording, Micro SD 64GB
  • Web Viewer IE10….
  • Management Software Smart PSS, DSS
  • Smart Phone Android, Ios
  • Certifications FCC (SEFD1501096-A )
  • UL (E234884-A37-UL)

Electrical

  • Power Supply 12V DC ±25%, PoE (af Class 0)
  • Power Consumption Max. 6.0W (12V DC, IR On)

Environmental

  • Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Vandal Resistance IK10

Construction

  • Casing Metal + Plastic
  • Dimensions Φ110mm × 54mm (Φ4.33" × 2.12")
  • Net Weight 0.25Kg (0.55lb)
  • Gross Weight 0.34Kg (0.75lb)
