Discontinued; Replaced by the N55BS5.

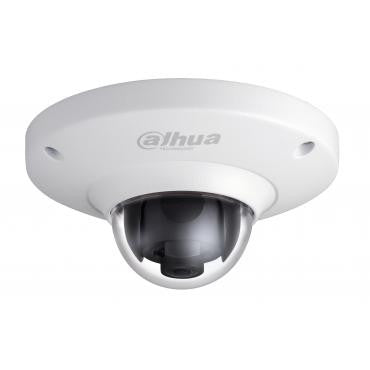

Dahua DH-IPC-EB55A0N Features
Camera
- Image Sensor 1/3" CMOS
- Effective Pixels 2592(H) x 1944(V)
- ROM / RAM 128MB / 256MB
- Scanning System Progressive
- Electronic Shutter Speed 1/3 (4) ~ 1/100,000s
- Minimum Illumination Color: 0.01Lux@F2.6;
- B/W: 0.001Lux@F2.6;
- S/N Ratio More than 50dB
- IR Distance N/A
- IR On/Off Control N/A
- IR LEDs N/A
Lens
- Lens Type Fixed
- Mount Type Board-in
- Focal Length 1.42mm
- Max Aperture F2.0
- Angle of View H: 185°
- Focus Control Fixed
- Alarm and Audio
- Alarm In/Out 1/1
- Audio In/Out Built in Mic
Video
- Compression H.264 / MJPEG
- Streaming Capability 3 Streams
- Resolution 5MP (2560x1920)/3MP (2048×1520) /UXGA (1600×1200)/1.3MP (1280×960)/720p (1280×720)/D1 (704×576/704×480)/ CIF (352×288/352×240)
- Frame Rate Main Stream 5MP (1~12fps) / UXGA (1 ~ 30fps)
- Sub Stream 1 D1/CIF (1 ~ 30fps)
- Sub Stream 2 720p (1 ~ 20fps)
- Bit Rate Control CBR / VBR
- Bit Rate H.264: 20K ~ 8192Kbps
- Day/Night Auto (Electronic) / Color / B/W
- BLC Mode BLC / HLC / DWDR
- White Balance Auto / Manual
- Gain Control Auto / Manual
- Noise Reduction 3D DNR
- Motion Detection Off / On (4 Zone, Rectangle)
- Region of Interest Off / On (4 Zone)
- Smart IR N/A
- Privacy Masking Off / On (4 Area, Rectangle)
Intelligent Function
- IVS Heat map
Network
- Ethernet RJ-45 (10/100Base-T)
- Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Interoperability ONVIF, PSIA, CGI
- Streaming Method Unicast / Multicast
- Max. User Access 20
- Edge Storage NAS (Network Attached Storage), Local PC for instant recording, Micro SD 64GB
- Web Viewer IE10….
- Management Software Smart PSS, DSS
- Smart Phone Android, Ios
- Certifications FCC (SEFD1509218-A )
- UL (E234884-A95-UL)
Electrical
- Power Supply 12V DC ±25%, PoE (af Class 0)
- Power Consumption Max. 6.0W (12V DC, IR On)
Environmental
- Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- Storage Conditions
- -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- Vandal Resistance IK10
Construction
- Casing Metal + Plastic
- Dimensions Φ110mm × 54mm (2.76" x 2.76" x 7.08")
- Net Weight 0.25Kg (0.55lb)
- Gross Weight 0.34Kg (0.75lb)
