Dahua DH-IPC-EBW812A0N

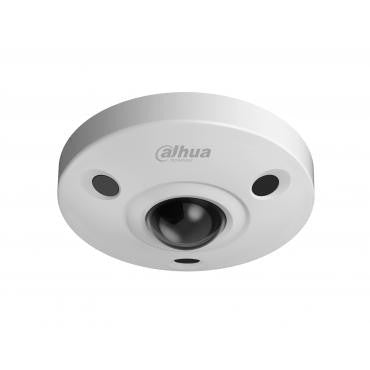

Dahua DH-IPC-EBW812A0N 12MP IR Fisheye Network Camera

Dahua

Dahua DH-IPC-EBW812A0N 12MP IR Fisheye Network Camera

$888.00
Discontinued
SKU: DH-IPC-EBW812A0N Ultra
Link to Manufacturer's Page

Contact

Discontinued; replaced by the NK8BR4.

Dahua DH-IPC-EBW812A0N Features

Camera

  • Image Sensor 1/2.3" CMOS
  • Effective Pixels 4000 (H) x 3000 (V)
  • ROM / RAM 128MB / 1GB
  • Scanning System Progressive
  • Electronic Shutter Speed 1/3 (4) ~ 1/100,000s
  • Minimum Illumination Color: 0.01Lux@F2.2; 0Lux/F2.2 (IR on)
  • S/N Ratio More than 50dB
  • IR Distance 10m (33ft)
  • IR On/Off Control Auto / Manual
  • IR LEDs 3

Lens

  • Lens Type Fixed
  • Mount Type Board-in
  • Focal Length 1.57mm
  • Max Aperture F2.0
  • Angle of View 185°/185°/185°
  • Focus Control Fixed

Alarm and Audio

  • Alarm In/Out 2/1
  • Audio In/Out 1/1 Channel In/Out (Built in Mic)

Video

  • Compression H.264 / MJPEG
  • Streaming Capability 2 Streams
  • Resolution 12MP (4000×3000)/8MP (2880×2880)/ 6MP (2880×2160) /3MP (2048×1536)
  • Main Stream 12MP (1~15fps) / 3MP (1 ~ 30fps)
  • Sub Stream 1 D1/CIF (1 ~ 30fps)
  • Bit Rate Control CBR / VBR
  • Bit Rate H.264: 40K ~ 8192Kbps
  • De-wrap Mode Original, Panoramic, Double Panoramic, 1+3, Eptz, 4 pictures
  • Day/Night Auto (ICR) / Color / B/W
  • BLC Mode BLC / HLC / DWDR
  • White Balance Auto / Manual
  • Gain Control Auto / Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off / On (4 Zone, Rectangle)
  • Region of Interest Off / On (4 Zone)
  • Smart IR N/A
  • Privacy Masking Off / On (4 Area, Rectangle)

Intelligent Function

  • IVS Tripewire, Intrusion, Heat map

Network

  • Ethernet RJ-45 (10/100Base-T)
  • Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 20
  • Edge Storage NAS (Network Attached Storage), Local PC for instant recording, Micro SD 64GB
  • Web Viewer IE10….
  • Management Software Smart PSS, DSS
  • Smart Phone Android, Ios

Certifications

  • FCC (SEFD1412194-A )
  • UL (E234884-A51-UL)

Electrical

  • Power Supply 12V DC ±25%, PoE (af Class 0)
  • Power Consumption Max. 13W (12V DC, IR On)

Environmental

  • Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Vandal Resistance IK10

Construction

  • Casing Metal
  • Dimensions Φ150mm × 50.7mm (5.91" x 2.76" x 2.00")
  • Net Weight 0.58Kg (1.28lb)
  • Gross Weight 0.86Kg (1.90lb)
