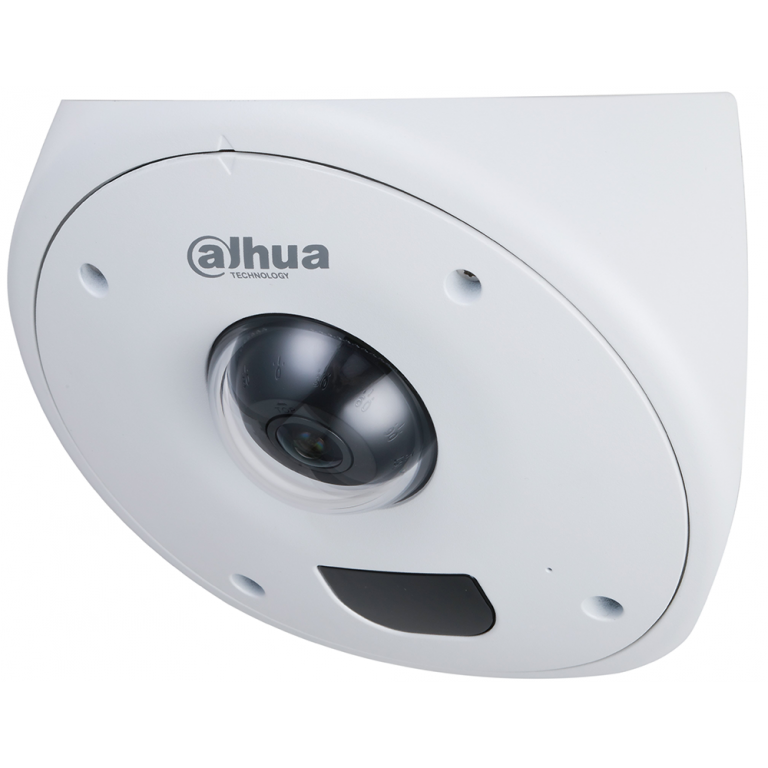

Dahua DH-IPC-HCBW8442N 4MP 2.85mm Starlight Analytics+ Corner Network Camera

Features

Camera

• Image Sensor 1/1.8-in. 4 MP CMOS
• Effective Pixels 2688(H) x 1520(V)
• RAM/ROM 512 MB/128 MB
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.004 lux at F2.0 (1/3 s, 30 IRE), 0 lux at F2.0 (IR on)
• IR Distance Up to 10 m (32.81 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Two (2), 940 nm Wavelength
• Installation Angle Vertical: –10° to +10°
• Rotation: 0° to 355°

Lens

• Lens Type Fixed
• Mount Type M12
• Focal Length 2.5 mm
• Maximum Aperture F2.0
• Angle of View Horizontal: 135°, Vertical: 90°
• Focus Control Fixed
• Close Focus Distance 0.40 m (1.31 ft)

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG
• Streaming Capability Three (3) Streams
• Resolution 2688 x 1520; 2560 x 1440; 2304 x 1296; 2016 x 1512; 1080p (1920 x 1080); UXGA (1600 x 1200); 1.3 MP (1280 x 960); 720p (1280 x 720); D1 (704 x 480); VGA (640 x 480); CIF (352 x 240)
• Frame Rate Main Stream: 4 MP (2688 x 1520) at 30 fps, Sub Stream 1: D1 at 30 fps, Sub Stream 2: D1 at 12 fps
• Bit Rate Control CBR/VBR, Bit Rate H.264: 32 Kbps to 8192 Kbps, H.265: 19 Kbps to 8192 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, SSA, WDR
• Wide Dynamic Range Ultra WDR (140 dB)
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
• Gain Control Auto, Gain Priority, Shutter Priority, Manual
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zones, Rectangular)
• Region of Interest Off, On (4 Zones)
• Advanced Features Smart IR, Defog, Electronic Image Stabilization (EIS)
• Flip 0°, 90°, 180°, 270°
• Mirror Off, On
• Privacy Masking Off, On (4 Areas, Rectangular)

Audio

• Compression G.711a, G.711Mu, AAC, G.726

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
• Interoperability ONVIF Profile S and G, CGI, Milestone, Genetec, P2P
• Scene Self-adaptation Support
• Streaming Method Unicast / Multicast
• Maximum User Access 20 Users
• Edge Storage Network Attached Storage (NAS), FTP, Micro SD Slot, maximum 256 GB

Certifications

• Safety EN 60950-1:2006+A11:2009+A1:2010+A12:2011+, A2:2013
• Electromagnetic Compatibility (EMC) 47 CFR FCC Part 15, Subpart B, Class B EN, 55032:2015, Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55024:2010+A1:2015; EN 55035:2017; EN 50130-4:2011+A1:2014

Interface

• Audio Input: One (1) Channel plus a Built-in Microphone, Output: One (1) Channel
• Alarm Input: One (1) Channel (5 mA, 5 VDC) Output: One (1) Channel (300 mA, 12 VDC)
• RS485 One (1) port (Baud rate range: 1200 bps to 115200 bps)

Electrical

• Power Supply Input 12 VDC or PoE (IEEE 802.3af, Class 0), Output 12 VDC, 165 mA
• Power Consumption 12 VDC Standard: 3.0 W with IR ON: 9.5 W
• PoE Standard: 3.6 W with IR ON: 11.5 W

Environmental

• Operating Conditions –40° C to +60° C (–40° F to +140° F), ≤ 95% RH
• Storage Conditions –40° C to +60° C (–40° F to +140° F),
• Ingress Protection IP67
• Vandal Resistance IK10+50J

Construction

• Casing Metal
• Dimensions 209.40 mm x 212.0 mm x 103.10 mm (8.24 in. x 8.35 in. x 4.06 in.)
• Net Weight 1.37 kg (3.02 lb)
• Gross Weight 1.47 kg (3.24 lb)

Analytics+ Functions

• Perimeter Protection Detects human or vehicle violations using the following methods:
  Tripwire: a target crosses a defined line.
  Intrusion: a target enters or exits a defined perimeter.
  Monitors a combination of ten (10) detection methods.
  Search and retrieve video based on target type.
• People Counting Delivers accurate flow statistics from the following methods:
  Line Crossing: counts a person as they cross a threshold in a defined direction.
  Region: counts the number of people in a defined area.
  Counts people simultaneously entering and exiting an area.
  Queue Management counts number of people standing in line and tracks the waiting time.

Intelligent Video System Functions

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• IP Address Conflict
• Premium Features
• Motion An object moves through any part of the scene.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Fast Moving Triggers an alarm when the speed of an object exiting a defined area exceeds a specified sensitivity setting.
• Parking Detection Monitors a defined area for the presence of a vehicle that remains in the area without motion.
• Crowd Gathering Monitors a defined area for a set number of people gathering and remaining inside the defined area.
• Loitering Detection Monitors a defined area for the presence of an object that remains in the area longer than a specified amount of time.
• Advanced Feature
• Heat Map Generates a visual representation of data.
