Dahua DH-IPC-HDBW11A0EN-W

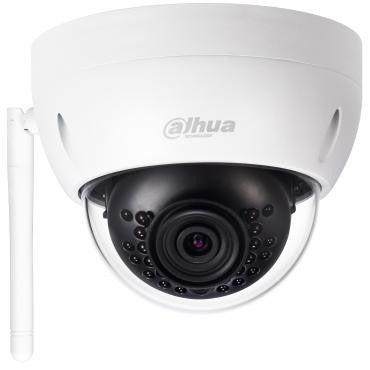

Dahua DH-IPC-HDBW11A0EN-W 1.3MP IR WiFi Fixed MiniDome Network Camera

Dahua

Dahua DH-IPC-HDBW11A0EN-W 1.3MP IR WiFi Fixed MiniDome Network Camera

$156.60
Discontinued
SKU: DH-IPC-HDBW11A0EN-W Lite
Link to Manufacturer's Page

Contact

Discontinued; Replaced by the DH-IPC-HDBW13A0EN-W.

Dahua DH-IPC-HDBW11A0EN-W Features

Camera

  • Image Sensor 1/3" CMOS
  • Effective Pixels 1920(H) x 960(V)
  • ROM / RAM 16MB / 256MB
  • Scanning System Progressive
  • Electronic Shutter Speed 1/1 ~ 1/100,000s
  • Minimum Illumination Color: 0.1 Lux@F2.0;
  • B/W: 0.01 Lux@F2.0; 0 Lux (IR on)
  • S/N Ratio More than 50dB
  • IR Distance Distance Up to 30m (98ft)
  • IR On/Off Control Auto / Manual
  • IR LEDs 24

Lens

  • Lens Type Fixed
  • Mount Type Board-in
  • Focal Length 2.8mm, 3.6mm options
  • Max Aperture F2.0/F2.0
  • Angle of View H: 92°/72°
  • Focus Control Fixed

Axis

  • Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 0° ~ 65°, Rotation：0° ~ 355°

Video

  • Compression H.264/MJPEG
  • Streaming Capability 2 Streams
  • Resolution 1.3MP (1280×960)/720p (1280×720)/ VGA (640×480) / QVGA (320×240)
  • Frame Rate Main Stream 1.3MP/720p (1 ~ 30fps)
  • Sub Stream 1 VGA/QVGA (1 ~ 30fps)
  • Bit Rate Control CBR / VBR
  • Bit Rate H.264: 32K ~ 8192Kbps
  • Day/Night Auto (ICR) / Color / B/W
  • BLC Mode BLC / HLC / DWDR
  • White Balance Auto / Sunny / Night / Outdoor / Customized
  • Gain Control Auto / Manual
  • Noise Reduction 3D DNR
  • Motion Detetion Off / On (4 Zone, Rectangle)
  • Region of Interest Off / On (4 Zone)
  • Smart IR Support
  • Digital Zoom 16x
  • Flip 0°/90°/180°/270°
  • Mirror Off / On
  • Privacy Masking Off / On (4 Area, Rectangle)

Network

  • Ethernet RJ-45 (10/100Base-T)
  • Wi-Fi (IEEE802.11b/g/n)
  • 50m (open field)
  • Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability ONVIF, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 20
  • Edge Storage NAS (Network Attached Storage), Local PC for instant recording,Micro SD Card 128GB
  • Web Viewer IE10….
  • Management Software Smart PSS, DSS
  • Smart Phone Android, Ios
  • Certifications FCC (SEFD1509190-B ), UL (E234884-A60-UL)

Electrical

  • Power Supply 12V DC ±25%
  • Power Consumption Max. 4.0W (12V DC, IR On)

Environmental

  • Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Ingress Protection & Vandal Resistance IP67, IK10

Construction

  • Casing Metal
  • Dimensions Φ110mm × 81mm (4.33" x 3.19")
  • Net Weight 0.38Kg (0.84lb)
  • Gross Weight 0.44Kg (0.97lb)
