Dahua DH-IPC-HDBW13A0EN

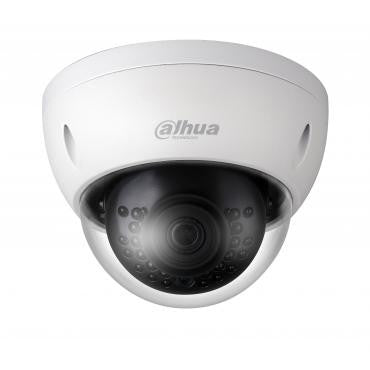

Dahua DH-IPC-HDBW13A0EN 3MP IR Fixed MiniDome Network Camera

Dahua

Dahua DH-IPC-HDBW13A0EN 3MP IR Fixed MiniDome Network Camera

$171.00
Discontinued
SKU: DH-IPC-HDBW13A0EN Lite
Link to Manufacturer's Page

Contact

Replaced by the N44BL52 or N44BL53.

Dahua DH-IPC-HDBW13A0EN Features

Camera

  • Image Sensor 1/3" CMOS
  • Effective Pixels 2304(H) x 1536(V)
  • ROM / RAM 16MB / 256MB
  • Scanning System Progressive
  • Electronic Shutter Speed 1/1 ~ 1/100,000s
  • Minimum Illumination Color: 0.1 Lux@F2.0; B/W: 0.01 Lux@F2.0; 0 Lux (IR on)
  • S/N Ratio More than 50dB
  • IR Distance Distance Up to 30m (98ft)
  • IR On/Off Control Auto / Manual
  • IR LEDs 24

Lens

  • Lens Type Fixed
  • Mount Type Board-in
  • Focal Length 2.8mm, 3.6mm options
  • Max Aperture F2.0/F2.0
  • Angle of View H: 92°/81°
  • Focus Control Fixed
  • Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 0° ~ 65°, Rotation：0° ~ 355°

Video

  • Compression H.264/MJPEG
  • Streaming Capability 2 Streams
  • Resolution 1.3MP (1280×960) / 720p (1280×720) /D1 (704×576/704×480) / CIF (352×288/352×240)
  • Main Stream 3MP (1~20fps), 1080p (1 ~ 25/30fps)
  • Sub Stream 1 D1/CIF (1 ~ 25/30fps)
  • Bit Rate Control CBR / VBR
  • Bit Rate H.264: 4K ~ 8192Kbps
  • Day/Night Auto (ICR) / Color / B/W
  • BLC Mode BLC / HLC / DWDR
  • White Balance Auto / Sunny / Night / Outdoor / Customized
  • Gain Control Auto / Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off / On (4 Zone, Rectangle)
  • Region of Interest Off / On (4 Zone)
  • Smart IR Support
  • Digital Zoom 16x
  • Flip 0°/90°/180°/270°
  • Mirror Off / On
  • Privacy Masking Off / On (4 Area, Rectangle)

Network

  • Ethernet RJ-45 (10/100Base-T)
  • Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability ONVIF, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 20
  • Web Viewer IE10….
  • Management Software Smart PSS, DSS
  • Smart Phone Android, Ios

Certifications

  • FCC (SEFD1509190-A )
  • UL (E234884-60-UL)

Electrical

  • Power Supply 12V DC ±25%, PoE (af Class 0)
  • Power Consumption Max. 4.0W (12V DC, IR On), Max. 4.7W (PoE, IR On)

Environmental

  • Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Ingress Protection IP67
  • Vandal Resistance IK10

Construction

  • Casing Metal
  • Dimensions Φ109.9mm × 81mm (4.33" x 3.19")
  • Net Weight 0.38Kg (0.84lb)
  • Gross Weight 0.44Kg (0.97lb)
