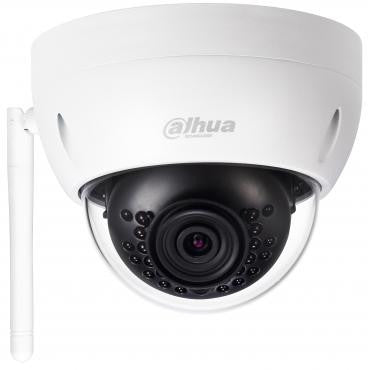

Dahua DH-IPC-HDBW13A0EN-W 3MP IR WiFi Fixed MiniDome Network Camera

Replaced by the N41BL42-W.

Dahua DH-IPC-HDBW13A0EN-W Features

Camera

• Image Sensor 1/3" CMOS
• Effective Pixels 2304(H) x 1536(V)
• ROM / RAM 16MB / 256MB
• Scanning System Progressive
• Electronic Shutter Speed 1/1 ~ 1/100,000s
• Minimum Illumination Color: 0.1 Lux@F2.0; B/W: 0.01 Lux@F2.0; 0 Lux (IR on)
• S/N Ratio More than 50dB
• IR Distance Distance Up to 30m (98ft)
• IR On/Off Control Auto / Manual
• IR LEDs 24

Lens

• Lens Type Fixed
• Mount Type Board-in
• Focal Length 2.8mm, 3.6mm options
• Max Aperture F2.0/F2.0
• Angle of View H: 92°/81°
• Focus Control Fixed
• Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 0° ~ 65°, Rotation：0° ~ 355°

Video

• Compression H.264/MJPEG
• Streaming Capability 2 Streams
• Resolution 1.3MP (1280×960) / 720p (1280×720) /D1 (704×576/704×480) / CIF (352×288/352×240)
• Main Stream 3MP (1~20fps), 1080p (1 ~ 25/30fps)
• Sub Stream 1 D1/CIF (1 ~ 25/30fps)
• Bit Rate Control CBR / VBR
• Bit Rate H.264: 4K ~ 8192Kbps
• Day/Night Auto (ICR) / Color / B/W
• BLC Mode BLC / HLC / DWDR
• White Balance Auto / Sunny / Night / Outdoor / Customized
• Gain Control Auto / Manual
• Noise Reduction 3D DNR
• Motion Detection Off / On (4 Zone, Rectangle)
• Region of Interest Off / On (4 Zone)
• Smart IR Support
• Digital Zoom 16x
• Flip 0°/90°/180°/270°
• Mirror Off / On
• Privacy Masking Off / On (4 Area, Rectangle)

Network

• Ethernet RJ-45 (10/100Base-T)
• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability ONVIF, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 20
• Web Viewer IE10….
• Management Software Smart PSS, DSS
• Smart Phone Android, Ios
• Certifications FCC (SEFD1509190-A ), UL (E234884-60-UL)

Electrical

• Power Supply 12V DC ±25%
• Power Consumption Max. 4.0W (12V DC, IR On)

Environmental

• Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Ingress Protection & Vandal Resistance IP67, IK10

Construction

• Casing Metal
• Dimensions Φ109.9mm × 81mm (4.33" x 3.19")
• Net Weight 0.38Kg (0.84lb)
• Gross Weight 0.44Kg (0.97lb)

Please note: Dahua's wireless cameras do not come with a power supply. We recommend the ADS-12AM-12 12012EPCU.
