Dahua DH-IPC-HDBW23A0RN-ZS

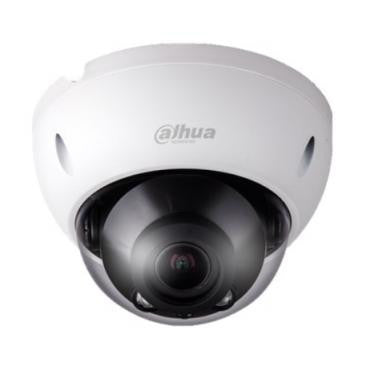

Dahua DH-IPC-HDBW23A0RN-ZS 3MP IR Vari-focal MiniDome Network Camera

Dahua

Dahua DH-IPC-HDBW23A0RN-ZS 3MP IR Vari-focal MiniDome Network Camera

$324.00
Discontinued
SKU: DH-IPC-HDBW23A0RN-ZS Lite
Link to Manufacturer's Page

Contact

Replaced by the N45BL5Z.

Dahua DH-IPC-HDBW23A0RN-ZS Features

Camera

  • Image Sensor 1/3" CMOS
  • Effective Pixels 2304(H) x 1536(V)
  • Scanning System Progressive
  • ROM / RAM 16MB / 256MB
  • Electronic Shutter Speed 1/3(4) ~ 1/100,000s
  • Minimum Illumination Color: 0.1Lux@F1.4;
  • B/W: 0.01Lux@F1.4;
  • 0 Lux (IR on)
  • S/N Ratio More than 50db
  • IR Distance Distance Up to 30m (98ft)
  • IR On/Off Control Auto/ Manual
  • IR LEDs 2

Lens

  • Lens Type Motorized lens
  • Mount Type Board-in
  • Focal Length 2.7mm-12mm
  • Max Aperture F1.4
  • Angle of View H: 92°~28° V:48°~18°
  • Focus Control Motorized
  • Close Focus Distance 1300mm～23000mm (4.27 ft - 75.46 ft)
  • Pan/Tilt Range Pan: 0° ~ 360°; Tilt: 0° ~ 80°, Rotation：0° ~ 360°

Video

  • Compression H.264 / MJPEG
  • Streaming Capability 2 Streams
  • Resolution 3MP (2048×1536) (2304×1296) / 1080p (1920×1080) / 720p (1280×720) / D1 (704×576/704×480) / CIF (352×288/352×240)
  • Streaming Capability Main Stream 3MP (1~20fps), 1080P (1 ~ 25/30fps)
  • Sub Stream 1 D1/CIF (1 ~ 25/30fps)
  • Bit Rate Control CBR / VBR
  • Bit Rate H.264: 4K ~ 8192Kbps
  • Day/Night Auto (ICR) / Color / B/W
  • BLC Mode BLC / HLC / DWDR
  • White Balance Auto/Sunny/Night/Outdoor/Customized
  • Gain Control Auto / Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off / On (4 Zone, Rectangle)
  • Region of Interest Off / On (4 Zone)
  • Smart IR Support
  • Digital Zoom 16x
  • Flip 0°/90°/180°/270°
  • Mirror Off / On
  • Privacy Masking Off / On (4 Area, Rectangle)

Network

  • Ethernet RJ-45 (10/100Base-T)
  • Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 20
  • Edge Storage NAS (Network Attached Storage), Local PC for instant recording, 128GB
  • Web Viewer IE10….
  • Management Software Smart PSS, DSS
  • Smart Phone Android, Ios
  • Certifications FCC (SEFD1508235-A)
  • UL (E234884-A94-UL)

Electrical

  • Power Supply 12V DC ±25%, PoE (af Class 0)
  • Power Consumption Max. 4.5W (12V DC, IR On),
  • Max. 4.5W (PoE, IR On)

Environmental

  • Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Ingress Protection & Vandal Resistance IP67, IK10

Construction

  • Casing Metal
  • Dimensions φ122mm × 88.9mm (4.8" x 3.5")
  • Net Weight 0.40Kg (0.88lb)
  • Gross Weight 0.54Kg (1.19lb)
