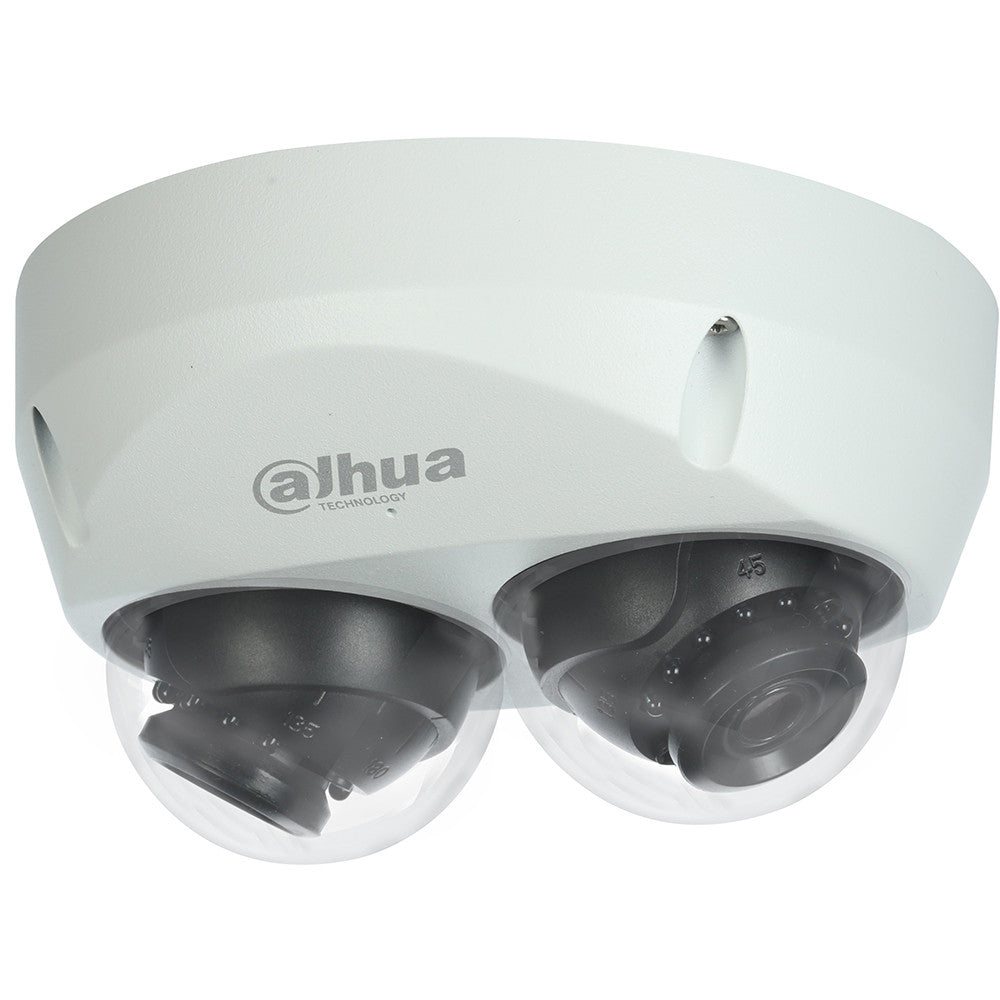

Dahua DH-IPC-HDBW4231FN-E2-M 2 x 2MP 2.8mm Multi-Sensor Dome Network Camera

Dahua DH-IPC-HDBW4231FN-E2-M Features

Camera

• Image Sensor Two (2) 1/2.8-in. 2 MP Progressive-scan CMOS
• Effective Pixels 1920(H) x 1080(V)
• RAM/ROM 512 MB / 256 MB
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual; 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.009 lux at F2.0 (1/3 s, 30 IRE), Color: 0.07 lux at F2.0 (1/30 s, 30 IRE), 0 lux at F2.0 with IR on
• S/N Ratio More than 50 dB
• IR Distance Distance up to 20.0 m (65.62 ft)
• IR On/Off Control Auto, Manual
• IR LEDs 10 per each Sensor

Lens

• Lens Type Fixed
• Mount Type Board-in
• Focal Length 2.8 mm
• Max. Aperture F2.0
• Angle of View Horizontal: 110°
• Vertical: 60°
• Focus Control Fixed

Installation Angle Range

• Pan: ±90˚
• Tilt: 0˚ to 65˚
• Rotation: 0˚to 360˚

Video

• Compression H.265, H.264H, MJPEG (Sub Stream)
• Streaming Capability Two (2) Streams per Sensor
• Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
• Frame Rate Main Stream Channel 1: 1080p at 30 fps, Channel 2: 1080p at 30 fps
• Sub Stream Channel 1: D1 at 30 fps, Channel 2: D1 at 30 fps
• Bit Rate Control CBR, VBR
• Bit Rate H.264: 32 to 10240 Kbps
• H.265: 12 to 7168 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, True WDR (120 dB, channel 1 only)
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zone, Rectangle)
• Region of Interest Off, On (4 Zone)
• Smart IR Support
• Digital Zoom 16x
• Flip 0°, 90°, 180°, 270°
• Mirror Off, On
• Privacy Masking Off, On (4 Area, Rectangle)

Audio

• Compression G.711a, G.711Mu, AAC, G.726
• Built-in Microphone

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP Interoperability ONVIF Profile S&G, API
• Streaming Method Unicast. Multicast
• Maximum User Access 10 Users / 20 Users
• Edge Storage Network Attached Storage (NAS), Local PC for Instant Recording, Micro Card Slot, 128 GB maximum
• Web Viewer IE, Chrome, Firefox, Safari
• Management Software SmartPSS, DSS, DMSS
• Mobile Operating System IOS, Android

Certifications

• Safety EN60950:2000, UL 60950-1
• Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B, E-mark (ECE-Regulation No.10), EN50155

Electrical

• Power Supply 12 VDC or PoE (IEEE 802.3af, Class 0)
• Power Consumption < 6.5 W

Environmental

• Operating Temperature –30° C to +60° C (–22° F to +140° F), Less than 95% RH
• Storage Temperature –30° C to +60° C (–22° F to +140° F), Less than 95% RH
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions ø122.0 mm x 66.20 mm (4.79 in. x 2.61 in.)
• Net Weight 0.51 kg (1.11 lb)
• Gross Weight 0.53 kg (1.16 lb)

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• Premium Features
• Motion An object moves through any part of the scene.
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Advanced Features
• Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
