Dahua DH-IPC-HDBW42A1EN-AS

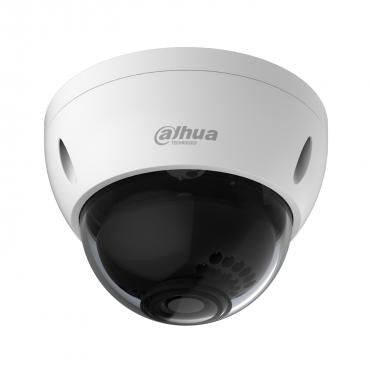

Dahua DH-IPC-HDBW42A1EN-AS 2MP IR Fixed MiniDome Network Camera

Dahua

Dahua DH-IPC-HDBW42A1EN-AS 2MP IR Fixed MiniDome Network Camera

$185.40
Discontinued
SKU: DH-IPC-HDBW42A1EN-AS Pro
Link to Manufacturer's Page

Contact

Discontinued; Replaced by the N24BL53.

Dahua DH-IPC-HDBW42A1EN-AS Features

Camera

  • Image Sensor 1/2.7" CMOS
  • Effective Pixels 1920(H) x 1080(V)
  • ROM / RAM 16MB /256MB
  • Scanning System Progressive
  • Electronic Shutter Speed 1/3(4) ~ 1/100,000s
  • Minimum Illumination Color: 0.01 Lux@F2.0;
  • B/W: 0.001 Lux@F2.0;
  • 0 Lux (IR on)
  • S/N Ratio More than 50dB
  • IR Distance Distance Up to 30m (98ft)
  • IR On/Off Control Auto / Manual
  • IR LEDs 24

Lens

  • Lens Type Fixed
  • Mount Type Board-in
  • Focal Length 2.8mm/3.6mm/6mm
  • Max Aperture F2.0/F2.0/F2.0
  • Angle of View H: 120°/93°/63°
  • Focus Control Fixed
  • Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 0° ~ 65°, Rotation：0° ~ 355°
  • Alarm and Audio
  • Alarm In/Out 1/1
  • Audio In/Out 1/1

Video

  • Compression H.264 / MJPEG
  • Streaming Capability 3 Streams
  • Resolution 1080p (1920×1080) / 720p (1280×720) / D1(704×576/704×480)/CIF (352×288/352×240)
  • Frame Rate Main Stream 2MP (1 ~ 30fps)
  • Sub Stream 1 D1/CIF (1 ~ 30fps)
  • Sub Stream 2 720p (1 ~ 4fps)
  • Bit Rate Control CBR / VBR
  • Bit Rate H.264: 32K ~ 10Mbps
  • Day/Night Auto (ICR) / Color / B/W
  • BLC Mode BLC / HLC / WDR (120dB)
  • White Balance Auto / Sunny / Night / Outdoor / Customized
  • Gain Control Auto / Manual
  • Noise Reduction 3D DNR
  • Motion Detetion Off / On (4 Zone, Rectangle)
  • Region of Interest Off / On (4 Zone)
  • Smart IR Support
  • Digital Zoom 16x
  • Flip 0°/90°/180°/270°
  • Mirror Off / On
  • Privacy Masking Off / On (4 Area, Rectangle)

Intelligent Function

  • IVS Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, Face Detection

Network

  • Ethernet RJ-45 (10/100Base-T)
  • Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 20
  • Edge Storage NAS (Network Attached Storage), Local PC for instant recording, 128GB
  • Web Viewer IE10….
  • Management Software Smart PSS, DSS
  • Smart Phone Android, Ios
  • Certifications FCC (SEFD1506099-B )
  • UL (E234884-A60-UL)

Electrical

  • Power Supply 12V DC ±25%, PoE (af Class 0)
  • Power Consumption Max. 4W (12V DC, IR On), Max. 4W (PoE, IR On)

Environmental

  • Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Storage Conditions
  • -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Ingress Protection & Vandal Resistance IP67, IK10

Construction

  • Casing Metal
  • Dimensions Φ109.9mm×81mm (4.33" x 3.19")
  • Net Weight 0.38Kg (0.84lb)
  • Gross Weight 0.44Kg (0.97lb)
