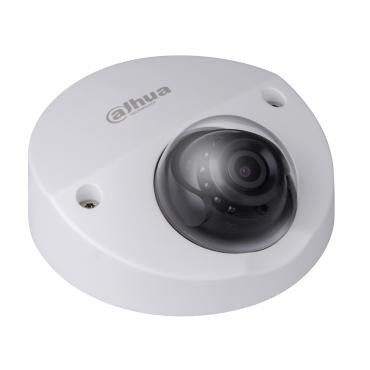

Dahua DH-IPC-HDBW44A1FN-AS 4MP IR Fixed MiniDome Network Camera

Discontinued; Replaced by the N44BN53.

Dahua DH-IPC-HDBW44A1FN-AS Features

Camera

• Image Sensor 1/3" CMOS
• Effective Pixels 2688(H) x 1520(V)
• ROM / RAM 16MB / 256MB
• Scanning System Progressive
• Electronic Shutter Speed 1/3(4) ~ 1/100,000s
• Minimum Illumination Color: 0.01Lux@F2.0;
• B/W: 0.001Lux@F2.0;
• 0 Lux (IR On)
• S/N Ratio More than 50dB
• IR Distance Distance Up to 20m (66ft)
• IR On/Off Control Auto/ Manual
• IR LEDs 12

Lens

• Lens Type Fixed
• Mount Type Board-in
• Focal Length 2.8mm/3.6mm/6mm
  Please note: the 6mm version has been discontinued
• Max Aperture F2.0/F2.0/F2.0
• Angle of View H: 106°/84°/56°
• Focus Control Fixed
• Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 0° ~ 65°, Rotation：0° ~ 355°
• Alarm and Audio
• Alarm In/Out 1/1
• Audio In/Out 1/1

Video

• Compression Smart H.264+ / MJPEG
• Streaming Capability 3 Streams
• Resolution 4MP (2688×1520) / 3MP (2304×1296) / 1080p (1920×1080) / 720p (1280×720) /D1 (704×576 / 704×480) / CIF (352×288 / 352×240)
• Main Stream 4MP (1~20fps), 3MP (1 ~ 30fps)
• Sub Stream 1 D1/CIF (1 ~ 30fps)
• Sub Stream 2 720p (1 ~ 20fps)
• Bit Rate Control CBR / VBR
• Bit Rate H.264: 32K ~ 10Mbps
• Day/Night Auto (ICR) / Color / B/W
• BLC Mode BLC / HLC / WDR (120dB)
• White Balance Auto / Sunny / Night / Outdoor / Customized
• Gain Control Auto / Manual
• Noise Reduction 3D DNR
• Motion Detection Off / On (4 Zone, Rectangle)
• Region of Interest Off / On (4 Zone)
• Smart IR Support
• Digital Zoom 16x
• Flip 0°/90°/180°/270°
• Mirror Off / On
• Privacy Masking Off / On (4 Area, Rectangle)

Intelligent Function

• IVS Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, Face Detection

Network

• Ethernet RJ-45 (10/100Base-T)
• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 20
• Edge Storage NAS (Network Attached Storage), Local PC for instant recording, 128GB
• Web Viewer IE10….
• Management Software Smart PSS, DSS
• Smart Phone Android, Ios
• Certifications FCC (SEFV1506088-A )
• UL (E234884-A77-UL)

Electrical

• Power Supply 12V DC ±25%, PoE (af Class 0)
• Power Consumption Max. 4.6W (12V DC, IR On)

Environmental

• Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Ingress Protection & Vandal Resistance IP67, IK10

Construction

• Casing Metal
• Dimensions Φ106mm × 50.3mm (4.17" x 1.98")
• Net Weight 0.34Kg (0.75lb)
• 0.47Kg (1.04lb)
• Gross Weight 0.34Kg (0.75lb)
• 0.47Kg (1.04lb)
