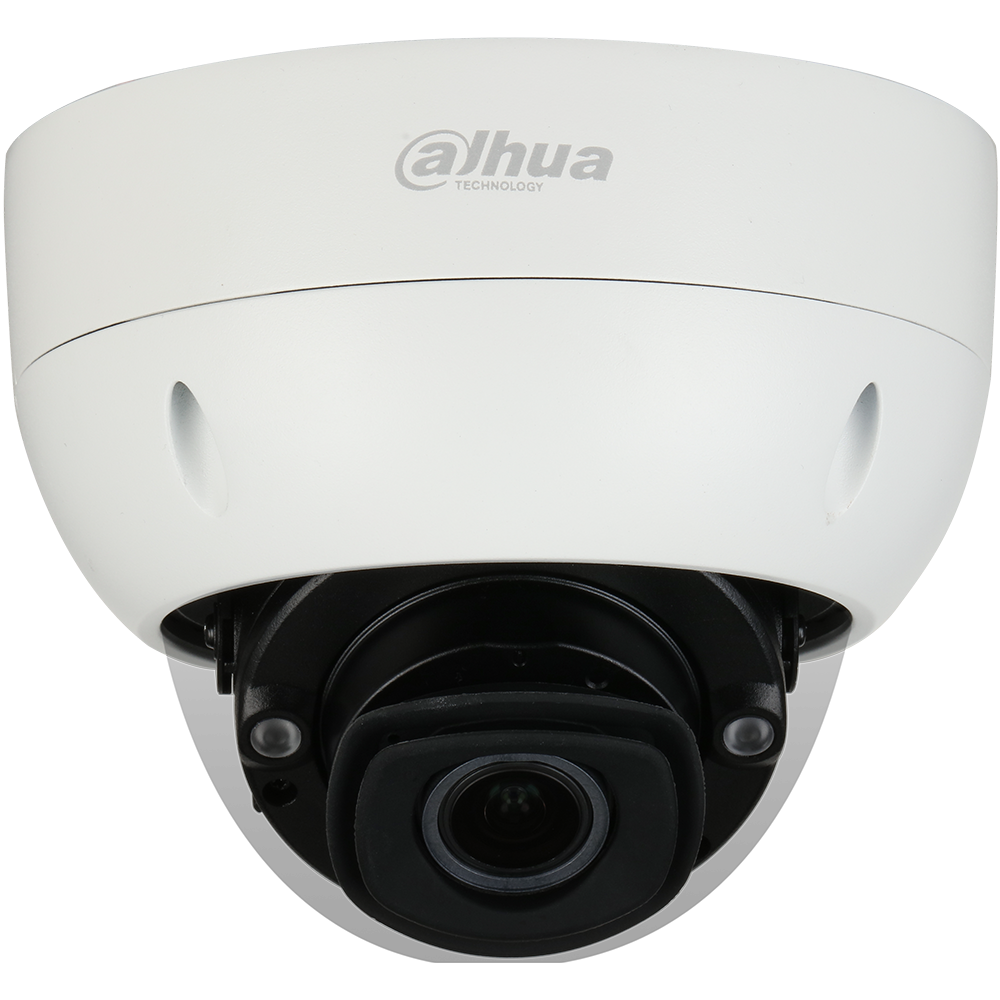

Dahua DH-IPC-HDBW7442HN-ZFR 4MP IR Vari-focal ePoE with Analytics+ Dome Network Camera

Dahua DH-IPC-HDBW7442HN-ZFR Features

Camera

• Image Sensor 1/1.8-in. 4 MP CMOS
• Effective Pixels 2688(H) x 1520(V)
• RAM/ROM 2 GB / 16 GB
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.001 lux at F1.2 (1/3 s, 30 IRE) 0 lux at F1.2 (with IR on)
• IR Distance Distance up to 40.0 m (131.23 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Three (3)

Lens

• Lens Type Electric Zoom
• Mount Type Module Interface
• Focal Length 2.7 mm to 12 mm
• Maximum Aperture F1.2
• Angle of View Horizontal: 111° to 47° Vertical: 59° to 26° Diagonal: 135° to 51°
• Focus Control Auto
• Close Focus Distance Wide: 1.0 m (3.29 ft) Tele: 2.50 m (8.20 ft)

Pan/Tilt/Rotation

• Range Pan: 0˚ to 355˚, Tilt: 0˚ to 65˚, Rotation: 0˚ to 355˚

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only)
• Streaming Capability Five (5) Streams
• Resolution 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
• Frame Rate Main Stream: 4 MP (2688 x 1520) at 60 fps Sub Stream 1: 704 x 576 at 30 fps Sub Stream 2: 1080p (1920 x 1080) at 30 fps Sub Stream 3: 1080p (1920 x 1080) at 30 fps Sub Stream 4: 704 x 576 at 30 fps
• Bit Rate Control CBR/VBR
• Bit Rate H.264: 32 Kbps to 10240 Kbps H.265: 12 Kbps to 10240 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, Ultra WDR (140 dB), SSA
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
• Gain Control Auto, Manual
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zones, Rectangular)
• Region of Interest Off, On (4 Zones)
• Flip 0°, 90°, 180°, 270° (supports 90° and 270° with 1080p resolution or lower)
• Mirror Off, On
• Privacy Masking Off, On (4 Areas, Rectangular)

Audio

• Compression G.711a, G.711Mu, AAC, G.726

Network

• Ethernet RJ-45 (100/1000 Base-T)
• Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
• Interoperability ONVIF Profile S and G, CGI, P2P, RTMP
• Streaming Method Unicast / Multicast
• Max. User Access 20 Users
• Edge Storage Network Attached Storage (NAS) FTP, SFTP Micro SD Slot, maximum 256 GB
• Web Viewer IE (Version 9 and higher), Chrome (Version 42 and higher), Firefox (Version 48.0.2 or higher)
• Management Software SmartPSS, DSS Pro, IVSS
• Smart Phone IOS, Android

Certifications

• Safety UL60950-1 CAN/CSA C22.2 No.60950-1-07 EN60950-1
• Electromagnetic Compatibility FCC CFR 47 Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/EU

Interface

• Video One (1) Channel CVBS, BNC (for adjustment only)
• Audio Input: One (1) Channel Output: One (1) Channel
• Alarm Input: Three (3) Channels (5 mA, 5 VDC) Output: Two (2) Channels 1000 mA, 30 VDC 500 mA, 50 VAC
• RS485 One (1) Port (Bit rate: 1200 bps to 115200 bps)

Electrical

• Power Supply 12 VDC, 24 VAC, or PoE (IEEE 802.3af, Class 0)
• Power Consumption n 12 VDC Standard: 5.4 W with IR and ICR ON: 16.7 W 24 VAC Standard: 5.0 W with IR and ICR ON: 15.7 W PoE Standard: 4.9 W with IR and ICR ON: 15.6 W

Environmental

• Operating Temperature –40° C to +60° C (–40° F to +140° F), ≤ 95% RH
• Storage Temperature –40° C to +60° C (–40° F to +140° F), ≤ 95% RH
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal and Plastic
• Dimensions ø157.90 mm x 129.10 mm (ø6.22 in. x 5.08 in.)
• Net Weight 212.0 mm x 212.0 mm x 200.0 mm (8.35 in. x 8.35 in. x 7.87 in.)
• Gross Weight 1.60 kg (3.53 lb)

Analytics+ Functions

• Face Recognition
• Supports five group libraries that store up to 200,000 faces on the camera.
• Captures faces, compares to stored images, and produces match statistics.
• Extracts six attributes and eight expressions from a face capture.
• Offers face enhancement, face exposure, and a face angle filter for clear facial images.
• People Counting
• Delivers accurate flow statistics from the following methods:
• Line Crossing: counts a person as they cross a threshold in a defined direction.
• Region: counts the number of people in a defined area.
• Produces daily, monthly, and annual reports for both methods.
• Perimeter Protection
• Detects human or vehicle violations using the following methods:
• Tripwire: a target crosses a defined line.
• Intrusion: a target enters or exits a defined perimeter.
• Image Attribute Extraction
• Distinguishes between motor vehicle, non-motor vehicle, and human targets.
• Optimizes images and takes a snapshot of each target.
• Extracts attributes specific to a target: Vehicles: make, color, type, Human: gender, face attributes, clothing colors

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• IP Address Conflict
• Premium Features
• Motion An object moves through any part of the scene.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
