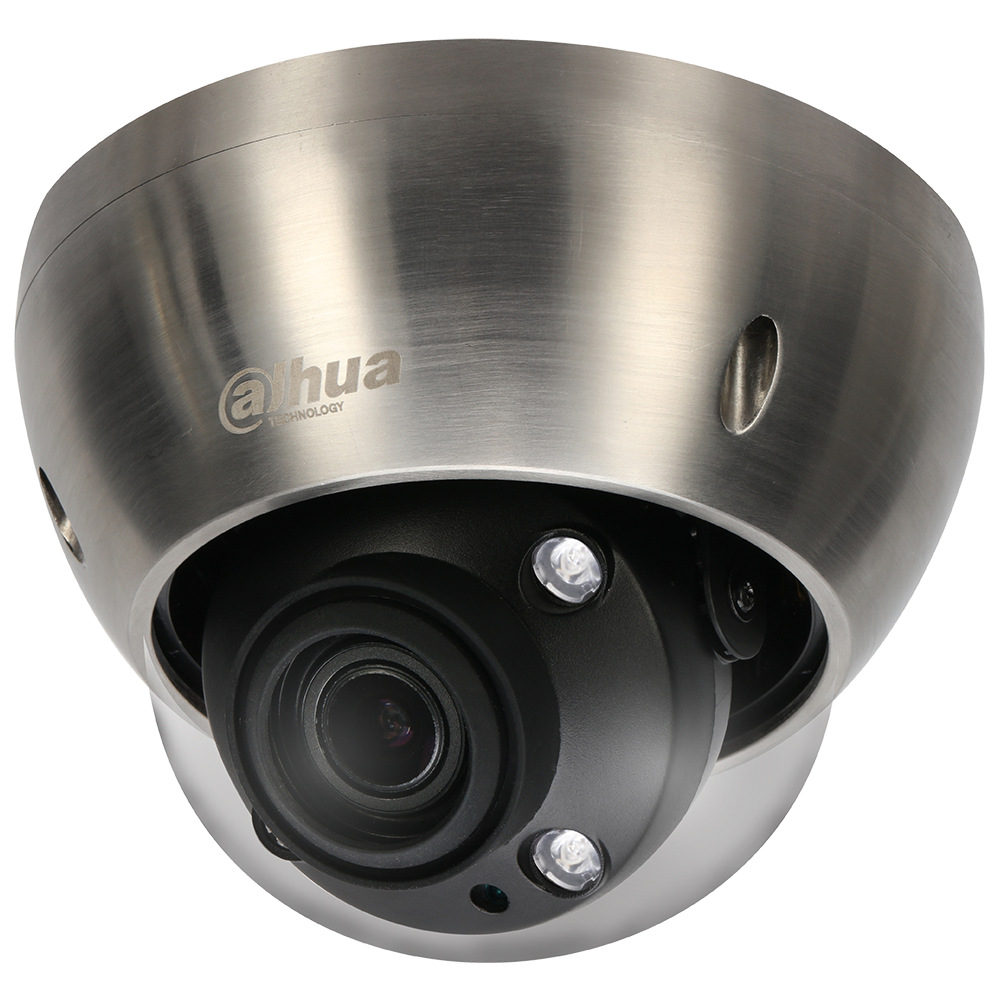

Dahua DH-IPC-HDBW8232EN-Z-SL 2MP IR Corrosion-resistant Varifocal Network Dome Camera

Dahua DH-IPC-HDBW8232EN-Z-SL Features

Camera

• Image Sensor 1/1.9-in. 2 MP Progressive Scan CMOS
• Effective Pixels 1920(H) x 1080(V)
• RAM/ROM 1024 MB / 128 MB
• Scanning System Progressive
• Minimum Illumination Color: 0.002 lux at F1.53, 0 lux at F1.53 with IR on
• S/N Ratio More than 50 dB
• IR Distance Up to 50.0 m (164.04 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Three (3)

Lens

• Lens Type Motorized, Auto Iris (HALL)
• Mount Type Board-in
• Focal Length 4.1 mm to 16.4 mm
• Max. Aperture F1.53
• Angle of View Horizontal: 32° to 92°, Vertical: 18° to 53°
• Optical Zoom 4x
• Focus Control Motorized
• Close Focus Distance 1000 mm (39.37 in.)

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264
• Streaming Capability Three (3) Streams
• Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
• Frame Rate Main Stream: 1080p at 60 fps, Sub Stream 1: D1 at 60 fps, Sub Stream 2: 1080p at 60 fps
• Bit Rate Control CBR, VBR
• Bit Rate H.264: 24 to 10240 Kbps, H.265: 14 to 6144 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, True WDR (120 dB), SSA
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zone, Rectangle)
• Region of Interest Off, On (4 Zone)
• Advanced Features Electronic Image Stabilization (EIS), Smart IR, Defog
• Digital Zoom 16x
• Flip 0°, 90°, 180°, 270°
• Mirror Off, On
• Privacy Masking Off, On (4 Area, Rectangle)

Audio

• Compression G.711a, G.711Mu, AAC, G.726

Network

• Ethernet RJ-45 (100/1000 Base-T)
• Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,, FTP, DHCP, DNS,DDNS, PPPOE, IPv4/v6, QoS, UPnP,NTP, Bonjour, 802.1x, MulƟ cast, ICMP, IGMP, SNMP
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast, Multicast
• Maximum User Access 10 Users / 20 Users
• Edge Storage Network Attached Storage (NAS), Local PC for Instant Recording, MicroSD Card Slot, maximum 128 GB
• Web Viewer IE, Firefox, Safari
• Management Software Smart PSS, DSS
• Mobile Operating System IOS, Android
• Certifications
• Safety EN 60950:2000, UL 60950-1
• Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B

Interface

• Audio In: One (1) Channel, RCA; Out: One (1) Channel, RCA
• Alarm In: One (1) Channel; Out: One (1) Channel

Electrical

• Power Supply 12 VDC, 24 VAC, or PoE+ (802.3at Class 4)
• Power Consumption < 18 W

Environmental

• Operating Conditions –40° C to +60° C (–40° F to +140° F), Less than 95% RH
• Storage Conditions –40° C to +60° C (–40° F to +140° F), Less than 95% RH
• Ingress Protection IP67
• Impact Protection IK10
• Enclosure Rating Conforms to NEMA 4X

Construction

• Casing 316L Stainless Steel
• Dimensions ø162.50 mm x 118.10 mm (ø6.40 in. x 4.65 in.)
• Net Weight 2.25 kg (4.96 lb)
• Gross Weight 3.0 kg (6.61 lb)

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Camera loses or changes focus drastically.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• Premium Features
• Motion An object moves through any part of the scene.
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Advanced Features
• Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
• People Counting Measure the number of customers, visitors or passengers in a surveillance scene.
• Heat Map Generates a visual representation of data.
