Discontinued; Replaced by the N28BL7Z.

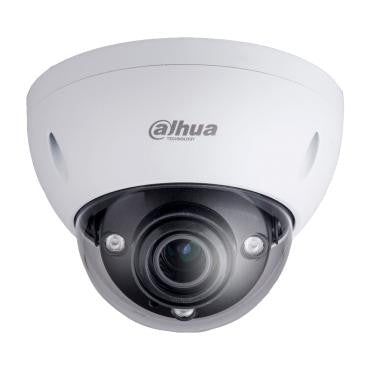

Dahua DH-IPC-HDBW82A1EN-Z Features
Camera
- Image Sensor 1/2.8" CMOS
- Effective Pixels 1920(H) x 1080(V)
- ROM / RAM 128MB /256MB
- Scanning System Progressive
- Electronic Shutter Speed 1/3 (4) ~ 1/100,000s
- Minimum Illumination Color: 0.005 Lux@F1.4; 0 Lux @F1.4 (IR on)
- S/N Ratio More than 50dB
- IR Distance Distance Up to 50m (165ft)
- IR On/Off Control Auto / Manual
- IR LEDs 3
- Vedio Output 1
Lens
- Lens Type Motorized / Auto Iris (DC)
- Mount Type Board-in
- Focal Length 2.7mm~12mm
- Max Aperture F1.4
- Angle of View H: 99°~36°
- Focus Control Motorized
- Pan/Tilt/Rotation Pan: 0° ~ 355°; Tilt: 0° ~ 65°, Rotation：0° ~ 355°
Alarm and Audio
- Alarm In/Out 1/1
- Audio In/Out 1/1
Video
- Compression H.265/H.264 / MJPEG
- Streaming Capability 3 Streams
- Resolution 1080p (1920×1080) / 720p (1280×720) / D1 (704×576) / CIF (352×288)
- Frame Rate Main Stream 1080p / 720p (1 ~ 30fps)
- Sub Stream 1 D1/CIF (1 ~ 30fps)
- Sub Stream 2 1080p / 720p/ D1 (1 ~ 30fps)
- Bit Rate Control CBR / VBR
- Bit Rate H.264: 40K ~ 10Mbps
- Day/Night Auto (ICR) / Color / B/W
- BLC Mode BLC / HLC / Ultra WDR (140dB)
- White Balance Auto / Sunny / Night / Outdoor / Customized
- Gain Control Auto / Manual
- Noise Reduction 3D DNR
- Motion Detection Off / On (4 Zone, Rectangle)
- Region of Interest Off / On (4 Zone)
- Smart IR Support
- Digital Zoom 16x
- Flip 0°/90°/180°/270°
- Mirror Off / On
- Privacy Masking Off / On (4 Area, Rectangle)
- EIS Support
- Ultra Defog Support
Intelligent Function
- IVS Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, People Counting, Face Detection, Heat Map
Network
- Ethernet RJ-45 (10/100Base-T)
- Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Interoperability ONVIF, PSIA, CGI
- Streaming Method Unicast / Multicast
- Max. User Access 20
- Edge Storage NAS (Network Attached Storage), Local PC for instant recording, Micro SD 128GB
- Web Viewer IE10….
- Management Software Smart PSS, DSS
- Smart Phone Android, Ios
Certifications
- FCC (SEFD1508239-A )
- UL (E234884-A102-UL)
Electrical
- Power Supply DC12V/AC24V, ±25%, PoE (af Class 0)
- Power Consumption Max. 12W (12V DC, with IR on, motorized lens working)
Environmental
- Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- Ingress Protection & Vandal Resistance IP67, IK10
Construction
- Casing Metal
- Dimensions Φ159mm × 117.9mm (6.26" x 4.64")
- Net Weight 0.8Kg (1.73lb)
- Gross Weight 1.1Kg (2.43lb)
