Dahua DH-IPC-HDBW83A1EN-Z

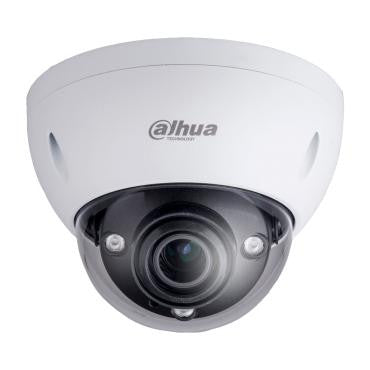

Dahua DH-IPC-HDBW83A1EN-Z 3MP Starlight IR Vari-focal MiniDome Network Camera

Dahua

Dahua DH-IPC-HDBW83A1EN-Z 3MP Starlight IR Vari-focal MiniDome Network Camera

Sale price$896.40
Discontinued
SKU: DH-IPC-HDBW83A1EN-Z Ultra

Contact

Discontinued; Replaced by the N28BL7Z.

Dahua DH-IPC-HDBW83A1EN-Z Features

Camera

  • Image Sensor 1/2.8" CMOS
  • Effective Pixels 2048(H)x1536(V)
  • ROM / RAM 128MB /256MB
  • Scanning System Progressive
  • Electronic Shutter Speed 1/3 ~ 1/100,000s
  • Minimum Illumination Color: 0.005 Lux@F1.4; 0 Lux @F1.4 (IR on)
  • S/N Ratio More than 50dB
  • IR Distance Distance Up to 50m (165ft)
  • IR On/Off Control Auto / Manual
  • IR LEDs 3
  • Video Output 1

Lens

  • Lens Type Motorized/ Auto Iris (DC)
  • Mount Type Board-in
  • Focal Length 2.7mm~12mm
  • Max Aperture F1.4
  • Angle of View H: 87°~31°
  • Focus Control Motorized
  • Pan/Tilt/Rotation Pan: 0° ~ 355°; Tilt: 0° ~ 65°, Rotation:0° ~ 355°

Alarm and Audio

  • Alarm In/Out 2/1
  • Audio In/Out 1/1

Video

  • Compression H.265 / H.264 / MJPEG
  • Streaming Capability 3 Streams
  • Resolution 3MP (2048×1536) /1080p (1920×1080)/720p (1280×720)/D1 (704×576) / CIF (352×288)
  • Streaming Capability Main Stream 1080p/720p (1 ~ 30fps)
  • Sub Stream 1 D1/CIF (1 ~ 30fps)
  • Sub Stream 2 1080p /720p /D1 (1 ~ 30fps)
  • Bit Rate Control CBR / VBR
  • Bit Rate H.264: 40K ~ 10Mbps
  • Day/Night Auto (ICR) / Color / B/W
  • BLC Mode BLC / HLC / Ultra WDR (140dB)
  • White Balance Auto / Sunny / Night / Outdoor / Customized
  • Gain Control Auto / Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off / On (4 Zone, Rectangle)
  • Region of Interest Off / On (4 Zone)
  • Smart IR Support
  • Digital Zoom 16x
  • Flip 0°/90°/180°/270°
  • Mirror Off / On
  • Privacy Masking Off / On (4 Area, Rectangle)
  • EIS Support
  • Ultra Defog Support

Intelligent Function

  • IVS Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, People Counting, Face Detection, Heat Map

Network

  • Ethernet RJ-45 (10/100Base-T)
  • Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 20
  • Edge Storage NAS (Network Attached Storage), Local PC for instant recording, Micro SD 128GB
  • Web Viewer IE10….
  • Management Software Smart PSS, DSS
  • Smart Phone Android, Ios

Certifications

  • FCC (SEFD1507092-A )
  • UL (E234884-A197-UL)

Electrical

  • Power Supply DC12V/AC24V, ±25%, PoE (af Class 0)
  • Power Consumption Max. 12W (12V DC, with IR on, motorized lens working)

Environmental

  • Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Ingress Protection & Vandal Resistance IP67, IK10

Construction

  • Casing Metal
  • Dimensions Φ159mm × 117.9mm (6.26" x 4.64")
  • Net Weight 0.8Kg (1.73lb)
  • Gross Weight 1.1Kg (2.43lb)
