Dahua DH-IPC-HDW44A1EN

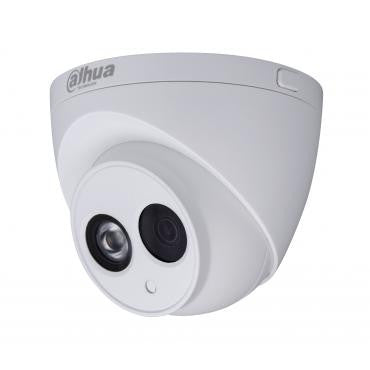

Dahua DH-IPC-HDW44A1EN 4MP IR Fixed EyeBall Network Camera

Dahua

Dahua DH-IPC-HDW44A1EN 4MP IR Fixed EyeBall Network Camera

Sale price$183.60
Discontinued
SKU: DH-IPC-HDW44A1EN Pro

Contact

Discontinued; Replaced by the N44BG52 or N44BG53.

Dahua DH-IPC-HDW44A1EN Features

Camera

  • Image Sensor 1/3" CMOS
  • Effective Pixels 2688(H) x 1520(V)
  • ROM / RAM 16MB / 256MB
  • Scanning System Progressive
  • Electronic Shutter Speed 1/3 (4) ~ 1/100,000s
  • Minimum Illumination Color: 0.01 Lux@F2.0; B/W: 0.001 Lux@F2.0; 0 Lux (IR On)
  • S/N Ratio More than 50dB
  • IR Distance Distance Up to 50m (165ft)
  • IR On/Off Control Auto/ Manual
  • IR LEDs 1

Lens

  • Lens Type Fixed
  • Mount Type Board-in
  • Focal Length 2.8mm/3.6mm/6mm
  • Max Aperture F2.0/F2.0/F2.0
  • Angle of View H: 110°/81°/55°
  • Focus Control Fixed
  • Pan/Tilt Range Pan: 0° ~ 360°; Tilt: 0° ~ 78°, Rotation:0° ~ 360°

Video

  • Compression Smart H.264+ / MJPEG
  • Streaming Capability 3 Streams
  • Resolution 4MP (2688×1520) / 3MP (2304×1296) / 1080p (1920×1080) / 720p (1280×720) /D1 (704×576 / 704×480) / CIF (352×288/352×240)
  • Main Stream 4MP (1~20fps), 3MP (1 ~ 30fps)
  • Sub Stream 1 D1 / CIF (1 ~ 30fps)
  • Sub Stream 2 720p (1 ~ 20fps)
  • Bit Rate Control CBR / VBR
  • Bit Rate H.264: 4K ~ 10Mbps
  • Day/Night Auto (ICR) / Color / B/W
  • BLC Mode BLC / HLC / WDR (120dB)
  • White Balance Auto / Sunny / Night / Outdoor / Customized
  • Gain Control Auto / Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off / On (4 Zone, Rectangle)
  • Region of Interest Off / On (4 Zone)
  • Smart IR Support
  • Digital Zoom 16x
  • Flip 0°/90°/180°/270°
  • Mirror Off / On
  • Privacy Masking Off / On (4 Area, Rectangle)

Intelligent Function

  • IVS Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, Face Detection

Network

  • Ethernet RJ-45 (10/100Base-T)
  • Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 20
  • Web Viewer IE10….
  • Management Software Smart PSS, DSS
  • Smart Phone Android, Ios
  • Certifications FCC (SEFD1509190-A)
  • UL (E234884-A72-UL)

Electrical

  • Power Supply 12V DC ±25%, PoE (af Class 0)
  • Power Consumption Max. 4.0W (12V DC, IR On), Max. 4.0W (PoE, IR On)

Environmental

  • Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Ingress Protection IP67

Construction

  • Casing Metal + Plastic
  • Dimensions Φ110mm×95.5mm (4.33" x 3.76")
  • Net Weight 0.40Kg (0.88lb)
  • Gross Weight 0.47Kg (1.04lb)
