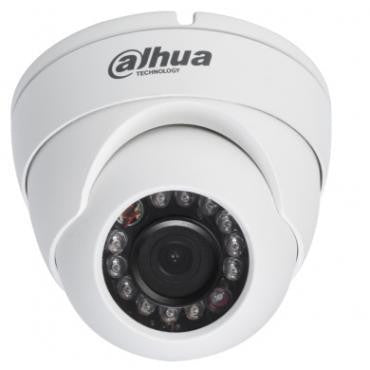

Dahua DH-IPC-HDW44A1MN 4MP IR Fixed Eyeball Network Camera

Discontinued; Replaced by the N44BG52.

Dahua DH-IPC-HDW44A1MN Features

Camera

• Image Sensor 1/3” 4Megapixel progressive scan CMOS
• Effective Pixels 2688(H)x1520(V)
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
• Min. Illumination 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
• S/N Ratio More than 50dB
• Video Output N/A

Camera Features

• Max. IR LEDs Length 30m
• Day/Night Auto(ICR)/Color/B/W
• Backlight Compensation BLC / HLC / WDR(120dB)
• White Balance Auto/Sunny/Night/Outdoor/Customized
• Gain Control Auto/Manual
• Noise Reduction 3D
• Privacy Masking Up to 4 areas

Lens

• Focal Length 3.6mm (2.8mm optional)
• Max Aperture F2.0(F2.0/F2.0)
• Focus Control Manual
• Angle of View H: 84°/106°/56°
• Lens Type Fixed lens
• Mount Type Board-in Type

Video

• Compression H.264/H.264B/H.264H/ MJPEG
• Resolution 4M(2688×1520)/4M(2560×1440)/3M(2304×1296)/1080P(1920×1080)/ 720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
• Frame Rate Main Stream 4M(1~20fps)/3M(1~30fps)
• Sub Stream D1/CIF(1 ~ 30fps)
• Third Stream 720P(1-20fps)
• Bit Rate H.264: 32K ~ 10Mbps
• Corridor Mode Support

Audio

• Compression N/A
• Interface N/A

Smart Function

• Smart detection Tripwire, Intrusion, Abandoned/Missing, Scene Change, Audio detect, Face detect

Network

• Ethernet RJ-45 (10/100Base-T)
• Wi-Fi N/A
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
• Compatibility ONVIF,PSIA,CGI
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows Phone

Auxiliary Interface

• Memory Slot N/A
• RS485 N/A
• Alarm N/A
• PIR Sensor Range N/A

General

• Power Supply DC12V, PoE (802.3af)
• Power Consumption < 5W
• Working Environment -30°C~+60°C, Less than 95% RH
• Ingress Protection IP67
• Vandal Resistance N/A
• Dimensions Φ108mm×84mm
• Weight 0.25Kg(0.38Kg with packaging)
