Dahua DH-IPC-HDW8341XN-3D

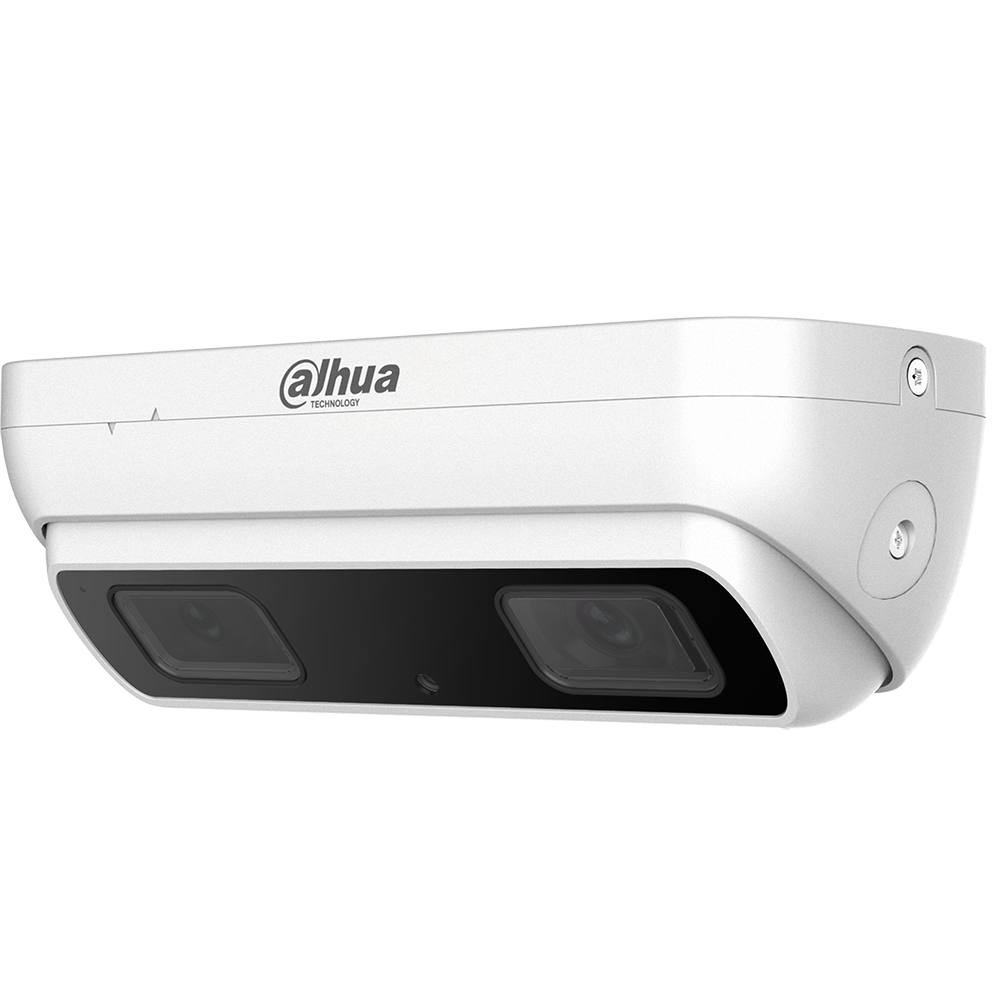

Dahua DH-IPC-HDW8341XN-3D 3MP Dual-sensor People Counting AI Network Camera

Dahua

Dahua DH-IPC-HDW8341XN-3D 3MP Dual-sensor People Counting AI Network Camera

$1,148.40
SKU: DH-IPC-HDW8341XN-3D
Quantity:
Link to Manufacturer's Page

Contact

Dahua DH-IPC-HDW8341XN-3D Features

Camera

  • Image Sensor Two (2) 1/2.8-in. 3 MP CMOS Sensors
  • Effective Pixels 2048 (H) x 1536 (V)
  • RAM/ROM 512 MB/4096 MB
  • Scanning System Progressive
  • Minimum Illumination Color: 0.009 lux at F1.8 (1/3 s,30 IRE), Color: 0.08 lux at F1.8 (1/30 s, 30 IRE), 0 lux at F1.8 (IR on)
  • S/N Ratio More than 50 dB
  • IR Distance 10.0 m (32.81 ft)
  • IR On/Off Control Auto, Manual
  • IR LEDs One (1)

Lens

  • Lens Type Fixed
  • Mount Type Board-in
  • Focal Length 2.8 mm, each lens
  • Maximum Aperture F1.8
  • Angle of View Horizontal: 137°, Vertical: 114°
  • Focus Control Fixed
  • Close Focus Distance 0.6 m (1.97 ft)

Pan/Tilt/Rotation

  • Range Tilt: –10˚ to 70˚

Video

  • Compression H.265, H.264H, MJPEG (Sub Stream only)
  • Smart Codec Smart H.265+, Smart H.264+
  • Streaming Capability Three (3) Streams
  • Resolution 3 MP (2048 x 1536), 1080p (1920 x 1080),, 1.3 MP (1280 x 960), 720p (1280 x 720),, D1 (704 x 480), VGA (640 x 480),CIF (342 x 240)
  • Frame Rate Main Stream: 3 MP at 25 fps, Sub Stream 1: D1 at 30 fps, Sub Stream 2: 6 MP at 7 fps (for camera adjustment only)
  • Bit Rate Control CBR, VBR
  • Bit Rate H.264: 192 kbps to 10240 Kbps
  • H.265: 80 kbps to 6144 Kbps
  • Day/Night Auto (ICR), Color, B/W
  • BLC Mode BLC, HLC, Digital WDR, SSA
  • White Balance Auto, Natural, Street Lamp, Outdoor, Manual
  • Gain Control Auto, Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off , On (4 Zones, Rectangular)
  • Region of Interest Off , On (4 Zones)
  • Advanced Features Smart IR
  • Defog
  • Digital Zoom 16x
  • Privacy Masking Off, On (4 Areas, Rectangular)

Audio

  • Compression G.711a, G.711Mu, AAC, G.726

Network

  • Ethernet RJ-45 (100/1000 Base-T)
  • Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, RTCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPV4/V6, QoS, UPnP, NTP, Bonjour, IEEE 802.1X, Multicast, ICMP, IGMP, TLS
  • Interoperability ONVIF Profile S/G, API
  • Streaming Method Unicast, Multicast
  • Max. User Access 10 Users/20 Users
  • Edge Storage Network Attached Storage (NAS), Local PC for Instant Recording
  • Micro SD Card, maximum 128 GB
  • Web Viewer IE, Chrome, Firefox, Safari
  • Management Software SmartPSS, DSS, DMSS
  • Mobile Operating System IOS, Android

Certifications

  • Safety EN 60950:2000
  • UL 60950-1
  • Electromagnetic Compatibility
  • (EMC) FCC Part 15 Subpart B

Interface

  • Video Output One (1) Port, BNC (for camera adjustment only)
  • Audio Input: Two (2) Channels, RCA, One (1) Built-in Microphone
  • Audio Output: One (1) Channel, RCA
  • Alarm Input: Two (2) Channels
  • Alarm Output: Two (2) Channels

Electrical

  • Power Supply 12 VDC, 1 A or PoE (802.3af, Class 0)
  • Power Consumption < 12 W

Environmental

  • Operating Conditions –30° C to +60° C (–22° F to +140° F), Less than 95% RH
  • Storage Conditions –30° C to +60° C (–22° F to +140° F), Less than 95% RH
  • Ingress Protection IP67

Construction

  • Casing Metal
  • Dimensions 204.0 mm x 78.0 mm x 62.0 mm (8.03 in. x 3.07 in. x 2.44 in.)
  • Net Weight 0.80 kg (1.76 lb)
  • Gross Weight 1.09 kg (2.40 lb)

Artificial Intelligence - People Counting

  • People Counting
  • Built-in Calibration Function
  • Dual-lens Design for Depth of Information
  • Line Crossing
  • Maximum/Minimum Height Detection
  • Sensitivity Control
  • Regional
  • Counts Number of People in a Defined Area
  • Ten (10) Separate Regions

Intelligence

  • IVS triggers an alarm and takes a defined action for the following events:
  • Standard Features
  • Tampering with the camera.
  • Error writing to an onboard Micro SD card.
  • Error sending or receiving data over the network.
  • Unauthorized access to the camera.
  • Premium Features
  • Motion An object moves through any part of the scene.
  • Tripwire A target crosses a user-defined line.
  • Intrusion A target enters or exits a defined perimeter.
  • Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
  • Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
  • Advanced Features
  • Heat Map Generates a visual representation of activity.
