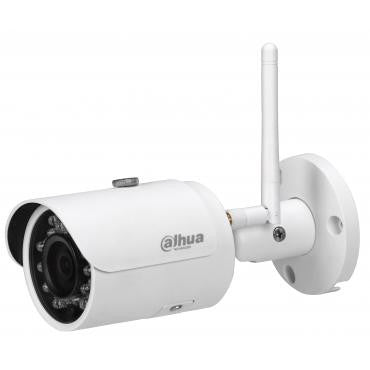

Dahua DH-IPC-HFW13A0SN-W 3MP IR WiFi Fixed Mini-Bullet Network Camera

Replaced by the N41BD12-W or the N44BB33.

Dahua DH-IPC-HFW13A0SN-W Features

Camera

• Image Sensor 1/3-in. CMOS
• Effective Pixels 2304 (H) x 1536 (V)
• ROM / RAM 16 MB / 256 MB
• Scanning System Progressive
• Electronic Shutter Speed 1/3(4) s to 1/100,000 s
• Minimum Illumination Color: 0.1 Lux @ F2.0, B/W: 0.01 Lux @ F2.0, 0 Lux (IR On)
• S/N Ratio More than 50 dB
• IR Distance Distance Up to 30.0 m (98.42 ft)
• IR On/Off Control Auto / Manual
• IR LEDs 24

Lens

• Lens Type Fixed
• Mount Type Board-in
• Focal Length 2.8 mm or 3.6 mm
• Max Aperture F2.0
• Angle of View H: 100° / 77°
• Focus Control Manual

Video

• Compression H.264 / MJPEG
• Streaming Capability Two (2) Streams
• Resolution 3 MP (2304 × 1296), 1080p (1920 × 1080), 720p (1280 × 720, VGA (640 × 480), QVGA (320 × 240)
• Frame Rate Main Stream 3 MP (1 to 20 fps) / 1080p (1 to 30 fps)
• Sub Stream 1 VGA/QVGA (1 to 30 fps)
• Bit Rate Control CBR / VBR
• Bit Rate H.264: 32 K to 8192 Kbps
• Day/Night Auto (ICR) / Color / B/W
• BLC Mode BLC / HLC / DWDR
• White Balance Auto / Sunny / Night / Outdoor / Customized
• Gain Control Auto / Manual
• Noise Reduction 3D DNR
• Motion Detection Off / On (4 Zone, Rectangle)
• Region of Interest Off / On (4 Zone)
• Smart IR Support
• Digital Zoom 16x
• Flip 0°/90°/180°/270°
• Mirror Off / On
• Privacy Masking Off / On (4 Area, Rectangle)

Network

• Ethernet RJ-45 (10/100 Base-T)
• Wi-Fi Wi-Fi (IEEE802.11b/g/n) 50.0 m (164.04 ft) open field
• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability ONVIF, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 20
• Edge Storage NAS (Network Attached Storage), Local PC for instant recording, 128 GB
• Web Viewer IE10
• Management Software Smart PSS, DSS
• Mobil Operating System Android, IOS

Certifications

• Certifications FCC (SEFD1509217-B), UL (E234884-A113-UL)

Electrical

• Power Supply 12 VDC ±25%
• Power Consumption Max. 5.5 W (12 VDC, IR On)

Environmental

• Operating Conditions -30°C to +60°C (-22°F to +140°F), Less than 90% RH
• Storage Conditions -30°C to +60°C (-22°F to +140°F), Less than 90% RH
• Ingress Protection IP67

Construction

• Casing Metal
• Dimensions Φ70.0 mm × 164.70 mm (2.76 in. x 6.48 in.)
• Net Weight 0.40 kg (0.88 lb)
• Gross Weight 0.49 kg (1.08 lb)

Please note: Dahua's wireless cameras do not come with a power supply. We recommend the ADS-12AM-12 12012EPCU.
