Replaced by the N45BB5Z.

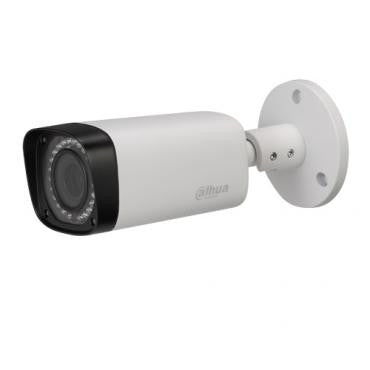

Dahua DH-IPC-HFW23A0RN-ZS Features
Camera
- Image Sensor 1/3" CMOS
- Effective Pixels 2304(H) x 1536(V)
- Scanning System Progressive
- ROM / RAM 16MB / 256MB
- Electronic Shutter Speed 1/3(4) ~ 1/100,000s
- Minimum Illumination Color: 0.1Lux@F1.4;
- B/W: 0.01Lux@F1.4;
- 0 Lux (IR on)
- S/N Ratio More than 50db
- IR Distance Distance Up to 30m (98ft)
- IR On/Off Control Auto/ Manual
- IR LEDs 30
Lens
- Lens Type Motorized lens
- Mount Type Board-in
- Focal Length 2.7mm-12mm
- Max Aperture F1.4
- Angle of View H: 92°~28°
- Focus Control Motorized
- Close Focus Distance 1300mm～23000mm (4.27 ft - 75.46 ft)
- Pan/Tilt Range Pan: 0° ~ 360°; Tilt: 0° ~ 90°, Rotation：0° ~ 360°
Video
- Compression H.264 / MJPEG
- Streaming Capability 2 Streams
- Resolution 3MP (2048×1536) (2304×1296) / 1080p (1920×1080) / 720p (1280×720) / D1 (704×576/704×480) / CIF (352×288/352×240)
- Frame Rate Main Stream 3MP (1~20fps), 1080p (1 ~ 30fps)
- Sub Stream 1 D1/CIF (1 ~ 30fps)
- Bit Rate Control CBR / VBR
- Bit Rate H.264: 4K ~ 8192Kbps
- Day/Night Auto (ICR) / Color / B/W
- BLC Mode BLC / HLC / DWDR
- White Balance Auto/Sunny/Night/Outdoor/Customized
- Gain Control Auto / Manual
- Noise Reduction 3D DNR
- Motion Detection Off / On (4 Zone, Rectangle)
- Region of Interest Off / On (4 Zone)
- Smart IR Support
- Digital Zoom 16x
- Flip 0°/90°/180°/270°
- Mirror Off / On
- Privacy Masking Off / On (4 Area, Rectangle)
Network
- Ethernet RJ-45 (10/100Base-T)
- Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Interoperability ONVIF, PSIA, CGI
- Streaming Method Unicast / Multicast
- Max. User Access 20
- Edge Storage NAS (Network Attached Storage), Local PC for instant recording, 128GB
- Web Viewer IE10….
- Management Software Smart PSS, DSS
- Smart Phone Android, Ios
- Certifications FCC (SEFD1508236-A )
- UL (E234884-A98-UL)
Electrical
- Power Supply 12V DC ±25%, PoE (af Class 0)
- Power Consumption Max. 7.5W (12V DC, IR On), Max. 7.5W (PoE, IR On)
Environmental
- Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- Ingress Protection IP67
Construction
- Casing Metal
- Dimensions 72mm × 80mm × 212.8mm (2.8" x 3.1" x 8.4")
- Net Weight 0.40Kg (0.88lb)
- Gross Weight 0.65Kg (1.43lb)
