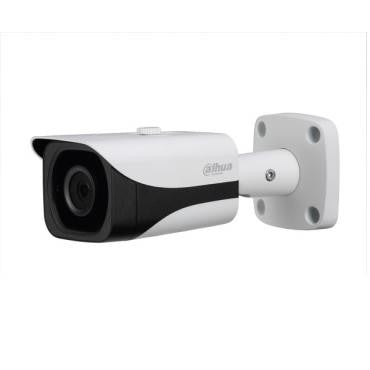

Dahua DH-IPC-HFW54A1EN-Z 4MP IR Vari-focal Bullet Camera

Discontinued & Replaced by the N45BB5Z

Dahua DH-IPC-HFW54A1EN-Z Features

Camera

• Image Sensor 1/3" CMOS
• Effective Pixels 2688(H) x 1520(V)
• ROM / RAM 128MB /256MB
• Scanning System Progressive
• Electronic Shutter Speed 1/3(4) ~ 1/100,000s
• Minimum Illumination Color: 0.01 Lux@F2.0; B/W: 0.001 Lux@F2.0; 0 Lux (IR on)
• S/N Ratio More than 50dB
• IR Distance Distance Up to 50m (165ft)
• IR On/Off Control Auto / Manual
• IR LEDs 4

Lens

• Lens Type Motorized / Auto Iris (DC)
• Mount Type Board-in
• Focal Length 2.7mm~12mm
• Max Aperture F1.4
• Angle of View H: 100°~33°
• Focus Control Motorized
• Pan/Tilt/Rotation Pan: 0° ~ 355°; Tilt: 0° ~ 65°, Rotation：0° ~ 355°

Alarm and Audio

• Alarm In/Out 2/1
• Audio In/Out 1/1

Video

• Compression Smart H.264+ / MJPEG
• Streaming Capability 3 Streams
• Resolution 4MP (2688x1520)/4MP (2560x1440)/3MP (2304x1296)/ 1080p (1920x1080) / 1.3MP (1280×960) /720p (1280×720) /D1 (704×576/704×480) / CIF (352×288/352×240)
• Main Stream 4MP (1~20fps)/ 3MP (1 ~ 30fps)
• Sub Stream 1 D1/CIF (1 ~ 30fps)
• Sub Stream 2 720p (1 ~ 20fps)
• Bit Rate Control CBR / VBR
• Bit Rate H.264: 32K ~ 10Mbps
• Day/Night Auto (ICR) / Color / B/W
• BLC Mode BLC / HLC / WDR (120dB)
• White Balance Auto / Sunny / Night / Outdoor / Customized
• Gain Control Auto / Manual
• Noise Reduction 3D DNR
• Motion Detetion Off / On (4 Zone, Rectangle)
• Region of Interest Off / On (4 Zone)
• Smart IR Support
• Digital Zoom 16x
• Flip 0°/90°/180°/270°
• Mirror Off / On
• Privacy Masking Off / On (4 Area, Rectangle)

Intelligent Function

• IVS Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, Face Detection

Network

• Ethernet RJ-45 (10/100Base-T)
• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 20
• Edge Storage NAS (Network Attached Storage), Local PC for instant recording, Micro SD 128GB
• Web Viewer IE10….
• Management Software Smart PSS, DSS
• Smart Phone Android, Ios

Certifications

• FCC (SEFD1504142-A )
• UL (E234884-A66-UL)

Electrical

• Power Supply DC12V (AC24V optional), ±25%, PoE (af Class 0)
• Power Consumption Max. 11.5W (12V DC, with IR on, motorized lens working
• Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Ingress Protection IP67

Construction

• Casing Metal+Plastic
• Dimensions 272.9 mm × 94.9mm × 94.9mm (10.74" x 3.73" x 3.73")
• Net Weight 1.2Kg (2.65lb)
• Gross Weight 1.4Kg (3.09lb)
