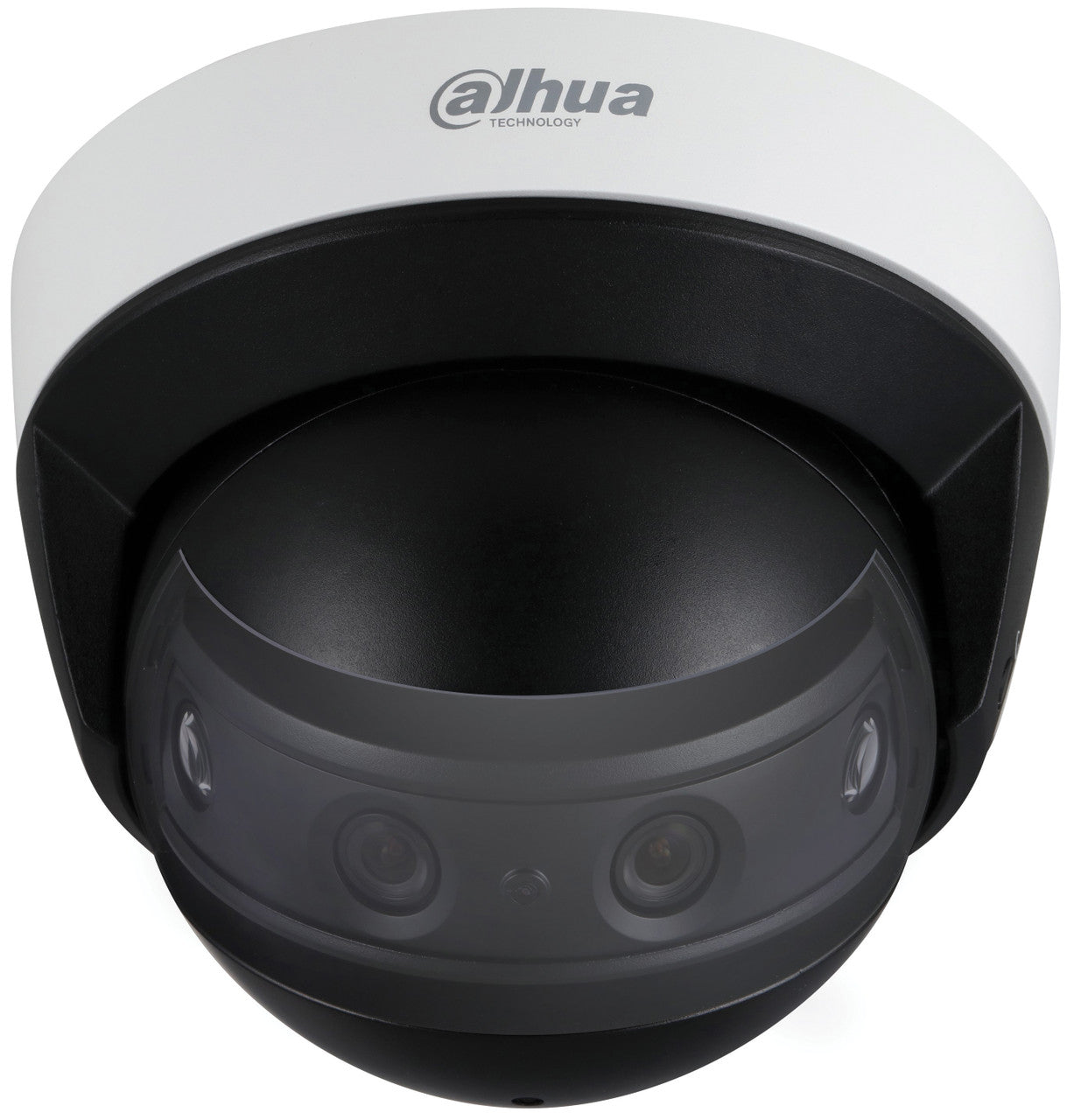

Dahua DH-IPC-PDBW8800N-A180 4 x 2MP Multi-sensor 180° Panoramic Dome Network Camera

Discontinued - Recommended Replacement DH-IPC-PDBW8840N-A180

Dahua DH-IPC-PDBW8800N-A180 Features

Camera

• Image Sensor Four (4) 1/2.8-in. 2 MP STARVIS™ CMOS Sensors
• Effective Pixels 4096(H) x 1800(V)
• RAM/ROM 1024 MB / 128 MB
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual: 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.007 lux at F2.0 (1/3 s, 30 IRE); Color: 0.05 lux at F2.0 (1/30 s, 30 IRE); 0 lux at F2.0 with IR on
• S/N Ratio More than 50 dB
• IR Distance Up to 30.0 m (98.43 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Six (6)

Lens

• Lens Type Fixed
• Mount Type Board-in
• Focal Length 3.0 mm
• Max. Aperture F2.0
• Angle of View Horizontal: 180˚, Vertical: 80˚
• Focus Control Fixed

DORI Distance¹

• Detect (8 ppf) 41 m (135 ft)
• Observe (19 ppf) 16 m (53 ft)
• Recognize (38 ppf) 8 m (26 ft)
• Identify (76 ppf) 4 m (13 ft)

Pan/Tilt/Rotation

• Range Pan: 0˚ to 355˚
• Tilt: 0˚ to 75˚
• Rotation: ±20˚

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• Streaming Capability Three (3) Streams
• Resolution 4096 x 1800, 3840 x 1680, 2880 x 1264, 1920 x 832, 1280 x 560, 1024 x 452
• Frame Rate Main Stream: 4096 x 1800 at 25 fps
• Sub Stream 1: 1024 x 452 at 30 fps
• Sub Stream 2: 1920 x 832 at 30 fps
• Bit Rate Control CBR, VBR
• Bit Rate H.265: 9 Kbps to 9472 Kbps; H.264: 24 Kbps to 15616 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, DWDR
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zone, Rectangle)
• Region of Interest Off, On (4 Zone)
• Smart IR Support
• Digital Zoom 16x
• Privacy Masking Off, On (4 Area, Rectangle)

Audio

• Compression G.711a, G.711Mu, AAC, G.726

Network

• Ethernet RJ-45 (100/1000 Base-T)
• Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast, Multicast
• Maximum User Access 10 Users / 20 Users
• Edge Storage NAS
• Local PC for instant recording
• Micro SD Card, maximum 128 GB
• Web Viewer IE, Firefox, Safari
• Management Software Smart PSS, DSS
• Mobile Operating System IOS, Android

Certifications

• Safety EN 60950:2000
• UL60950-1
• Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B

Interface

• Video One (1) Port (use for adjustment only)
• Audio Input: One (1) Channel, RCA, Output: One (1) Channel, RCA
• Alarm Input: Two (2) Channels (5 VDC, 5 mA), Output: Two (2) Channels (30 VDC, 1 A; 50 VAC, 0.5 A)

Electrical

• Power Supply 24 VAC or PoE+ (802.3at Class 4), 1.5 A
• Power Consumption 25.5 W, maximum

Environmental

• Operating Conditions -40° C to +60° C (-40° F to +140° F)
• Less than 95% RH
• Storage Conditions -40° C to +60° C (-40° F to +140° F)
• Less than 95% RH
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions ø212.0 mm x 169.50 mm (ø8.35 in. x 6.67 in.)
• Net Weight 3.60 kg (7.90 lb)
• Gross Weight 4.60 kg (10.10 lb)

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features Tampering with the camera.
• Camera loses or changes focus drastically.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.

Premium Features

• Motion An object moves through any part of the scene.
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.

Advanced Features

• Heat Map Generates a visual representation of data.
• E-PTZ Scans a portion of the panoramic scene and zooms that scene for improved observation.

1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.
