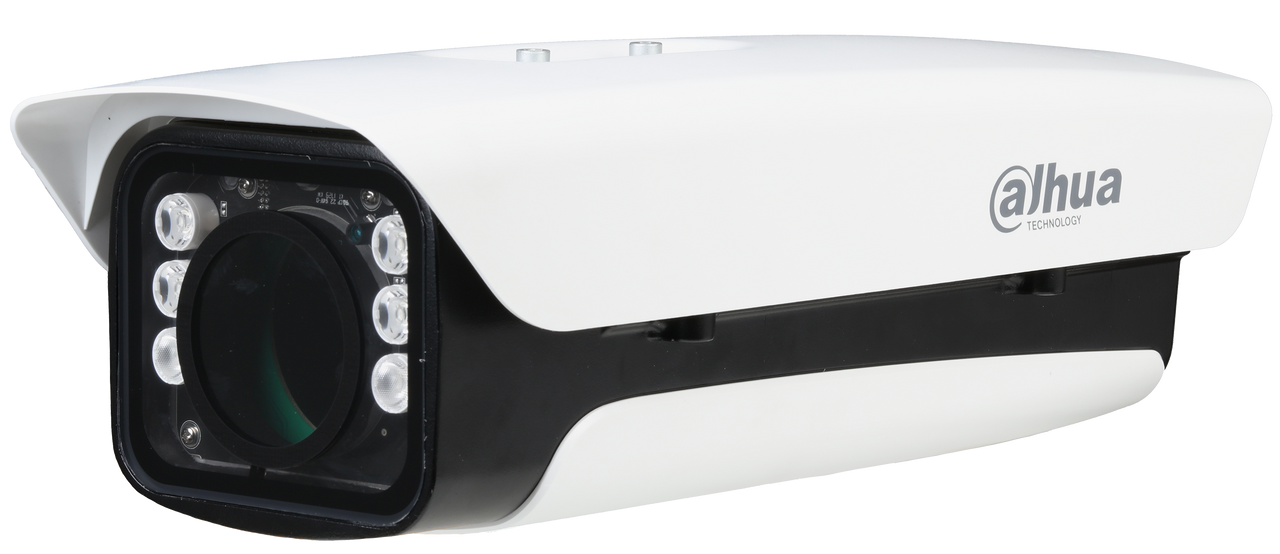

Dahua DH-PFH610V-IR Features
Environmental
- Operating Temperature –40 °C to 60 °C (–40 °F to 140 °F)
- Humidity < 90%
- Ingress Protection IP67
- Impact Resistance IK10
Electrical
- Power Supply 24 VDC or 24 VAC, 5 A
- Power Consumption 67 W
- IR Distance 100 m (328.08 ft)
Construction
- Material Case: Aluminum
- Other: PC Plastic
- Color White
- Outer Dimensions (L x W x H) 404.0 mm x 164.0 mm x 132.0 mm (15.91 in. x 6.46 in. x 5.20 in.)
- Inner Dimensions (L x W x H) 215.0 mm x 90.0 mm x 83.0 mm (8.46 in. x 3.54 in. x 3.27 in.)
- Weight 3.0 kg (6.61 lb)
Certifications
- Safety UL 60950-1
- CAN/CSA C22.2 No. 60950-1-07
Electromagnetic Compatibility (EMC)
- FCC 47 CFR Part 15
- Subpart B
- EN 55032:2015, EN
- 55024, EN61000-3-2,
- EN 61000-3-3, EN 50130-4
- ICES-003 Issue 6, 2016
- EAC
Package Contents
- 1 Vandal-proof Housing
- 2 M20 Waterproof Joints
- 2 1/4/20x8 Screws
- 1 S5.0 Wrench
- 1 Connection Cord (to connect camera to IR driver board)
